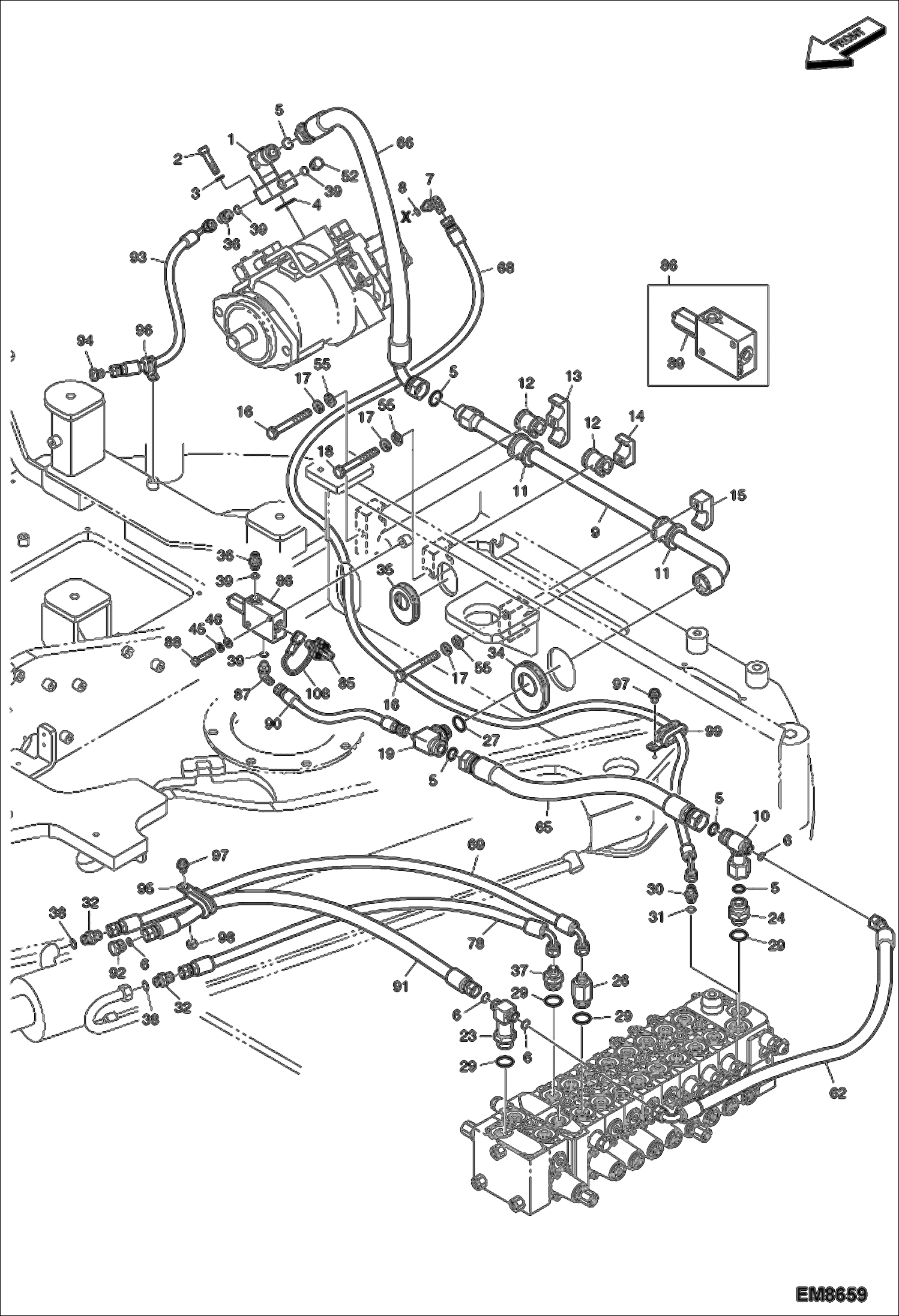

Запчасти Bobcat E80 HYDRAULIC CIRCUITRY (Upper) (Swing Cylinder & Valve) HYDRAULIC SYSTEM

1

7006544

FLANGE

2

7007752

BOLT

3

7008302

WASHER, SPRING M10

4

7004630

O-RING

5

7007960

O-RING

6

7007959

O-RING

7

7004715

ELBOW

8

7004632

O-RING

9

7020840

TUBELINE HYDR Was 7006554 - C

10

7005569

TEE

11

7005622

PAD

12

7006563

PAD

13

7006562

CLAMP

14

7006565

CLAMP

15

7006564

CLAMP

16

7007691

BOLT

17

7007836

WASHER SPRING M12

18

7007690

BOLT

19

7006746

ELBOW

23

7005563

TEE

24

7004771

ADAPTER

26

7005543

ADAPTER

27

7007917

O-RING

29

7004628

O-RING

30

7004693

ADAPTER

31

7007961

O-RING

32

7004700

ADAPTER

34

7006583

GROMMET

35

7006582

GROMMET

36

7004683

ADAPTER

37

7004677

ADAPTER

38

7007909

O-RING

39

7007906

O-RING

45

7007829

WASHER

46

7007815

WASHER PLAIN

52

7005574

PLUG

55

7007820

WASHER SPRING

62

7005148

HOSE UNF13/16-530L

65

7005145

HOSE UNF1 3/16-510L

66

7005147

HOSE

68

7005437

HOSE PF1/4-1740L

69

7005432

HOSE

78

7020691

HOSE Was 7008172 - A

85

SWITCH, PRESSURE NLA - Order 7030246 + 7030247 Was 7006223 - B,D

86

VALVE, REDUCING NLA - W/Ref. 89 Was 7006719 - A

86

VALVE, REDUCING NLA - W/Ref. 89 Was 7020692 - A

86

7020692

VALVE,REDUCING W/Ref. 89

87

7004713

ELBOW

88

7007657

BOLT

89

7007595

VALVE RELIEF

90

7008178

HOSE

91

7005146

HOSE UNF13/16-630L

92

7005576

PLUG

93

7005380

HOSE PF1/4-410L

94

7004754

PLUG

95

7003903

CLIP

96

7003894

CLIP

97

7005629

BOLT

98

7007797

NUT

99

7003904

CLIP

108

7005012

HARNESS JOINT
