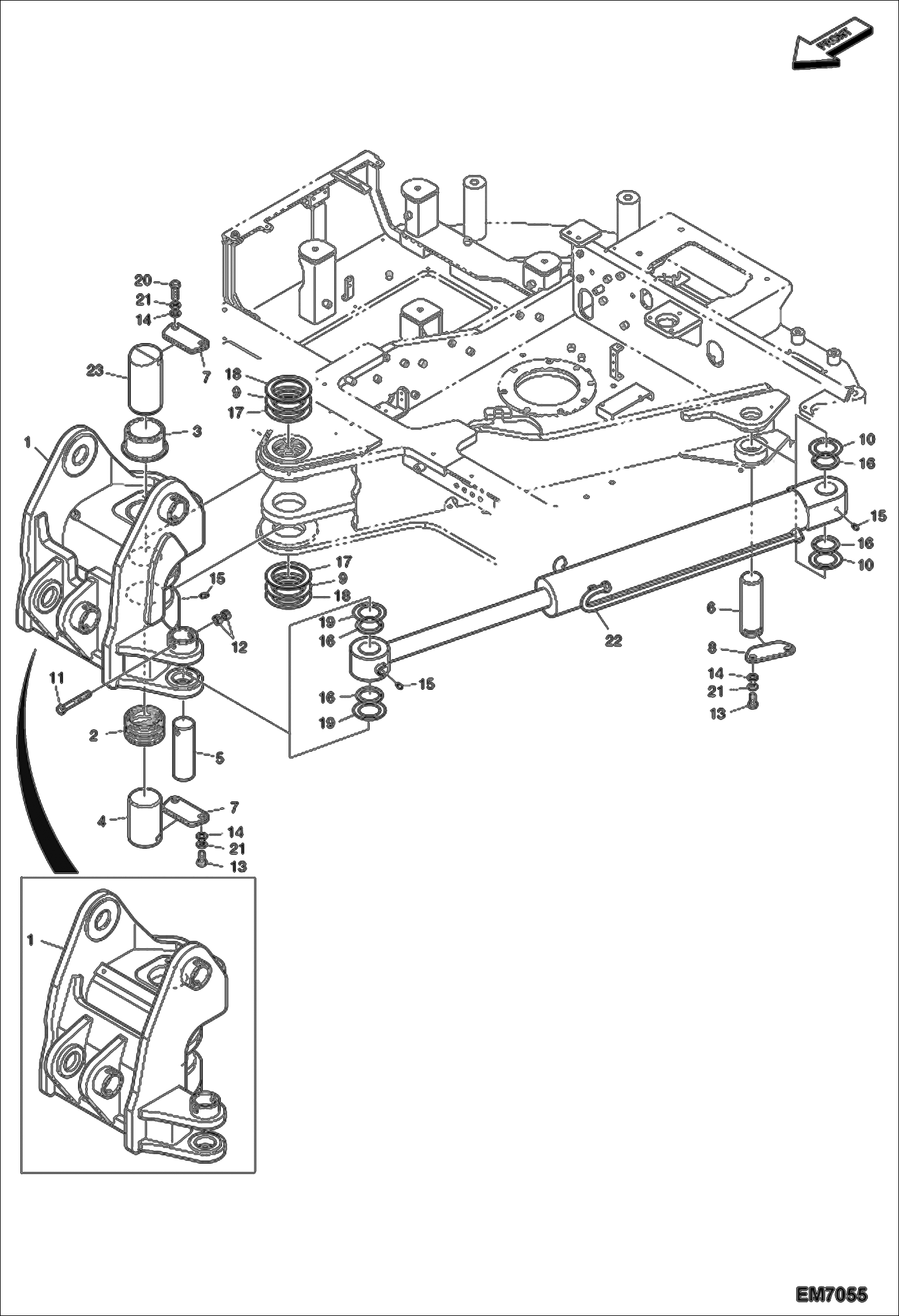

Запчасти Bobcat E80 SWING FRAME WORK EQUIPMENT

1

BRACKET, SWING NLA - W/Ref. 2-3 Was 7006152 - A

1

BRACKET, SWING NLA - W/Ref. 2-3 Was 7017071 - A

1

BRACKET, SWING NLA - W/Ref. 2-3 Was 7017408 - A

1

BRACKET, SWING NLA - W/Ref. 2-3 Was 7020697 - A

1

BRACKET, SWING NLA - W/Ref. 2-3 Was 7020971 - A

1

7020974

BRACKET BOOM SWING W/Ref. 2-3

2

7006257

BUSHING, LOWER

3

7006306

BUSHING, UPPER

4

PIN NLA Was 7006252 - A

4

7022877

PIN

5

PIN NLA Was 7006253 - A

5

7022878

PIN

6

PIN NLA Was 7006556 - A

6

7022879

PIN

7

7006254

PLATE

8

7005043

PLATE

9

7004494

SHIM

10

7004498

SHIM

11

7007710

BOLT

12

7007801

NUT M16X1.0

13

7007647

BOLT, M16X2.0X35

14

7007823

WASHER PLAIN

15

7007895

NIPPLE

16

7004640

SEAL DUST

17

7006524

SHIM

18

7005601

SHIM

19

7004492

SHIM

20

7007650

BOLT

21

7007839

WASHER SPRING

22

7006155

CYLINDER BOOM SWING See Illustration BOOM SLEW CYLINDER/ E80-4350

23

PIN NLA Was 7006251 - A

23

7022876

PIN
