Запчасти Bobcat E80 TRACK TENSIONER UNDERCARRIAGE

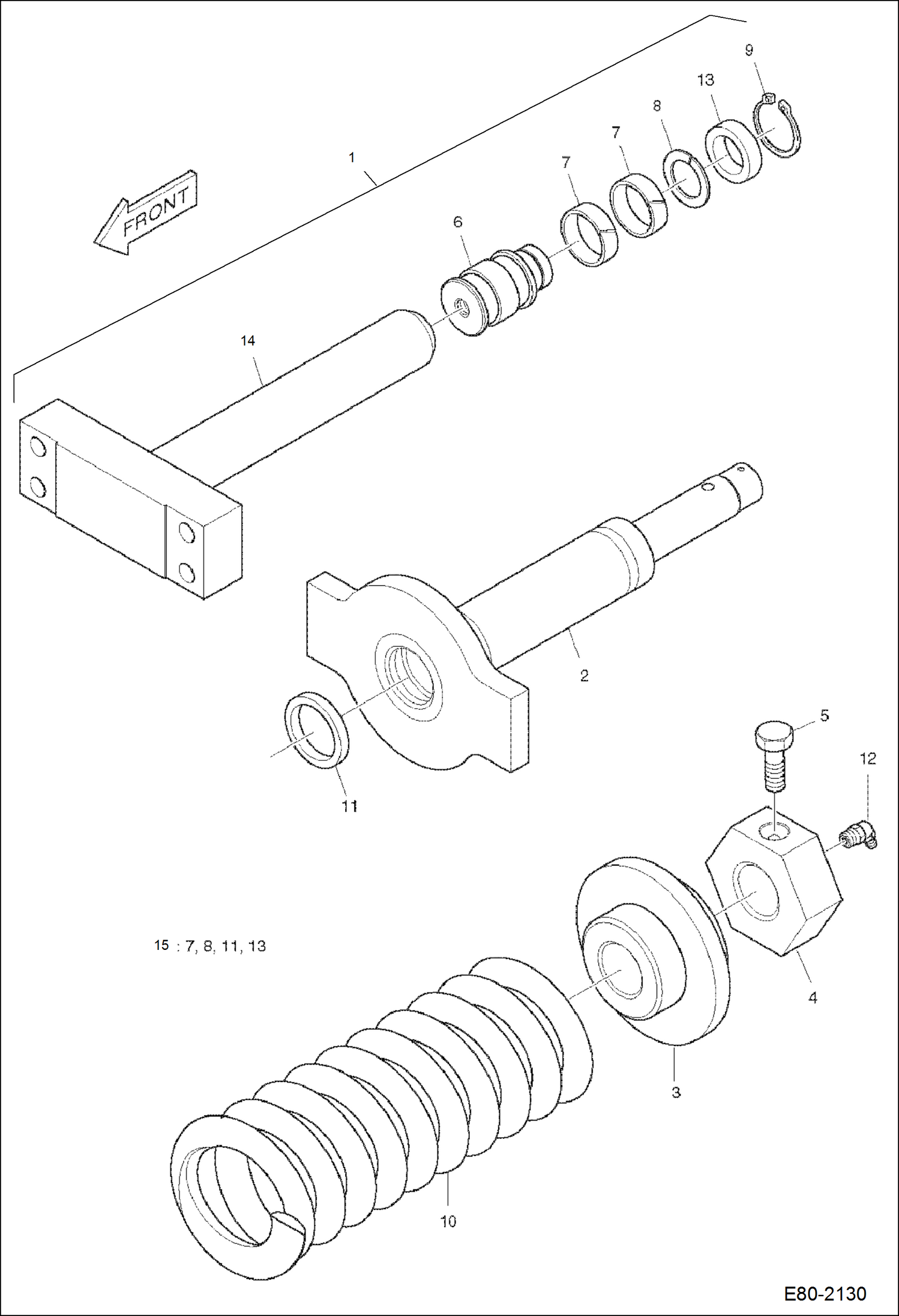

Схема запчастей Bobcat E80 - TRACK TENSIONER UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

7012253

SPRING ASSY,TRACK W/Ref. 2-14 Was 7004598 - A

2

CYLINDER ASSY NLA - Order Ref. 1

3

FLANGE NLA - Order Ref. 1

4

7004559

NUT

5

7004526

BOLT

6

PISTON NLA - Order Ref. 1

7

RING, PISTON NLA - Order Ref. 15

8

PACKING NLA - Order Ref. 15

9

7007876

RING SNAP

10

7006795

SPRING

11

SEAL, DUST NLA - Order Ref. 15

12

7004977

VALVE

13

RING, BACK-UP NLA - Order Ref. 15

14

ROD, PISTON NLA - Order Ref. 1 exchanger assy

15

7020395

SEAL KIT Ref. 7, 8, 11 & 13 Was 7004597 - A

Выбрано товаров: 15
