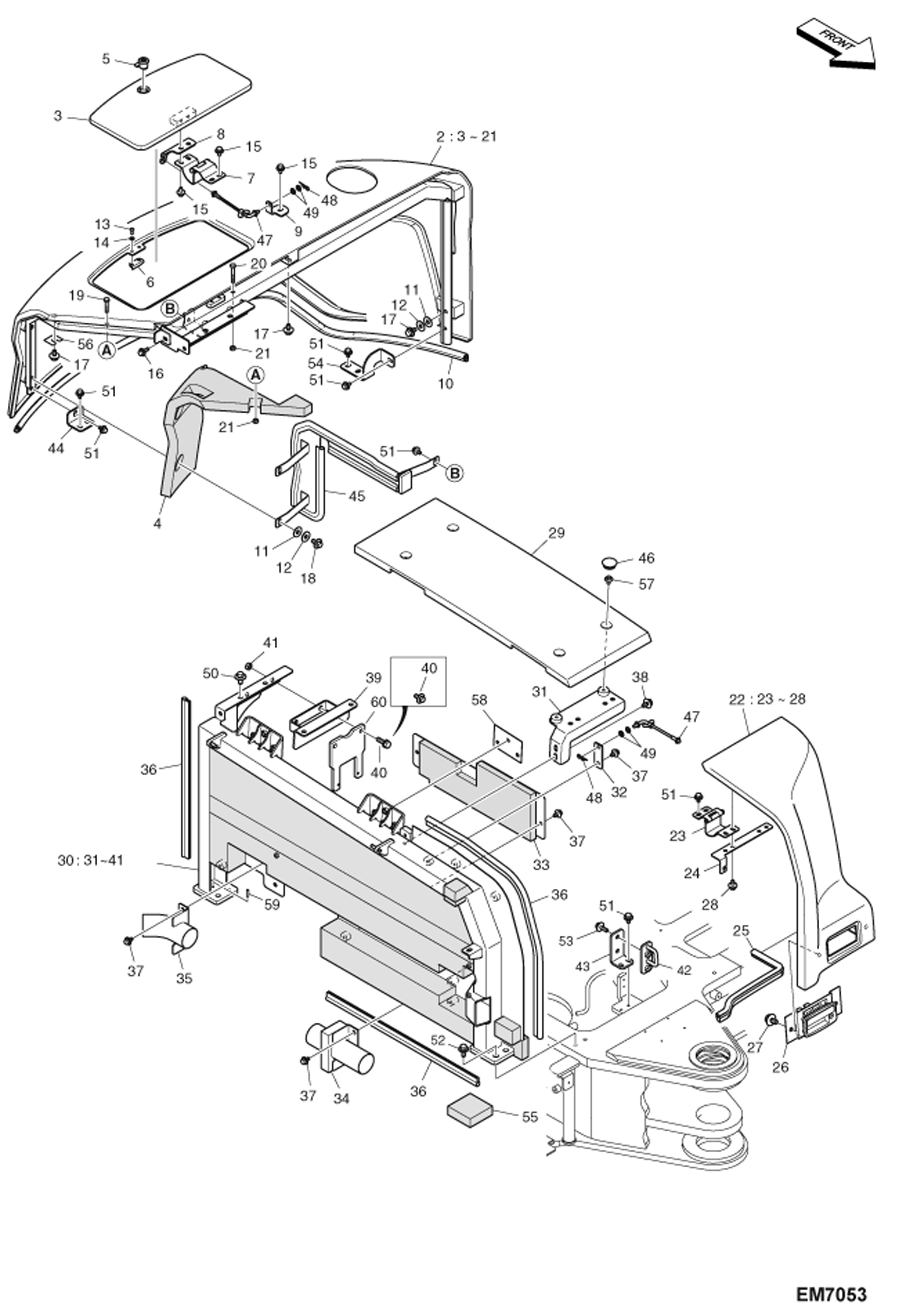

Запчасти Bobcat E80 TAILGATE (S/N AET311192 & Above + AETB11192 & Above) MAIN FRAME

2

7017393

COVER ASSY W/Ref. 3-21

3

7008243

COVER, ROOF

4

7017394

SEAL

5

7006690

KEY, LOCK

6

7006689

PLATE

7

7008255

HINGE

8

7017395

PLATE

9

7017396

PLATE

10

7006681

SEAL, EXTRUSION

11

7005597

SHIM

12

7005598

SHIM

13

7007786

BOLT

14

7007833

WASHER, SPRING

15

7005129

BOLT, SET

16

7005128

BOLT, SET

17

7005136

BOLT, SET

18

7005121

BOLT, SET

19

7017397

BOLT

20

7007660

BOLT

21

7007796

NUT

22

7008241

COVER, BATTERY ASSY

23

7006644

HINGE

24

7008248

PLATE

25

7008253

STRIP, WEATHER

26

7012749

CATCH Was 7005859 - A

27

7005136

BOLT, SET

28

7005129

BOLT, SET

29

7017398

COVER, SIDE

30

ARCH ASSY NLA - W/Ref. 31-41 Was 7017399 - A

30

7024746

SIDE W/Ref. 31-41 & 60

31

7017400

BRACKET

32

7006685

PLATE

33

7006678

BRACKET

34

7017401

BRACKET

35

7006678

BRACKET

36

7017402

STRIP, WEATHER

37

7005129

BOLT, SET

38

7005136

BOLT, SET

39

7017403

BRACKET

40

7005121

BOLT, SET

40

7024745

BOLT

41

7007798

NUT, M1X1.5

42

7006646

STRIKER

43

7006668

PLATE

44

7008247

PLATE

45

7017404

BAFFLE

46

7017405

PLUG

47

7006662

STRAP

48

7004569

PIN

49

7007816

WASHER

50

7005120

BOLT, SET

51

7005129

BOLT, SET

52

7005124

BOLT, SET

53

7005132

BOLT SET

54

7006762

PLATE

55

7015409

SPONGE

56

7015416

SHIM

57

7012228

BOLT,FLANGE

58

7017406

SHIM

59

7017407

PIN, KNOCK

60

7024744

BRACKET
