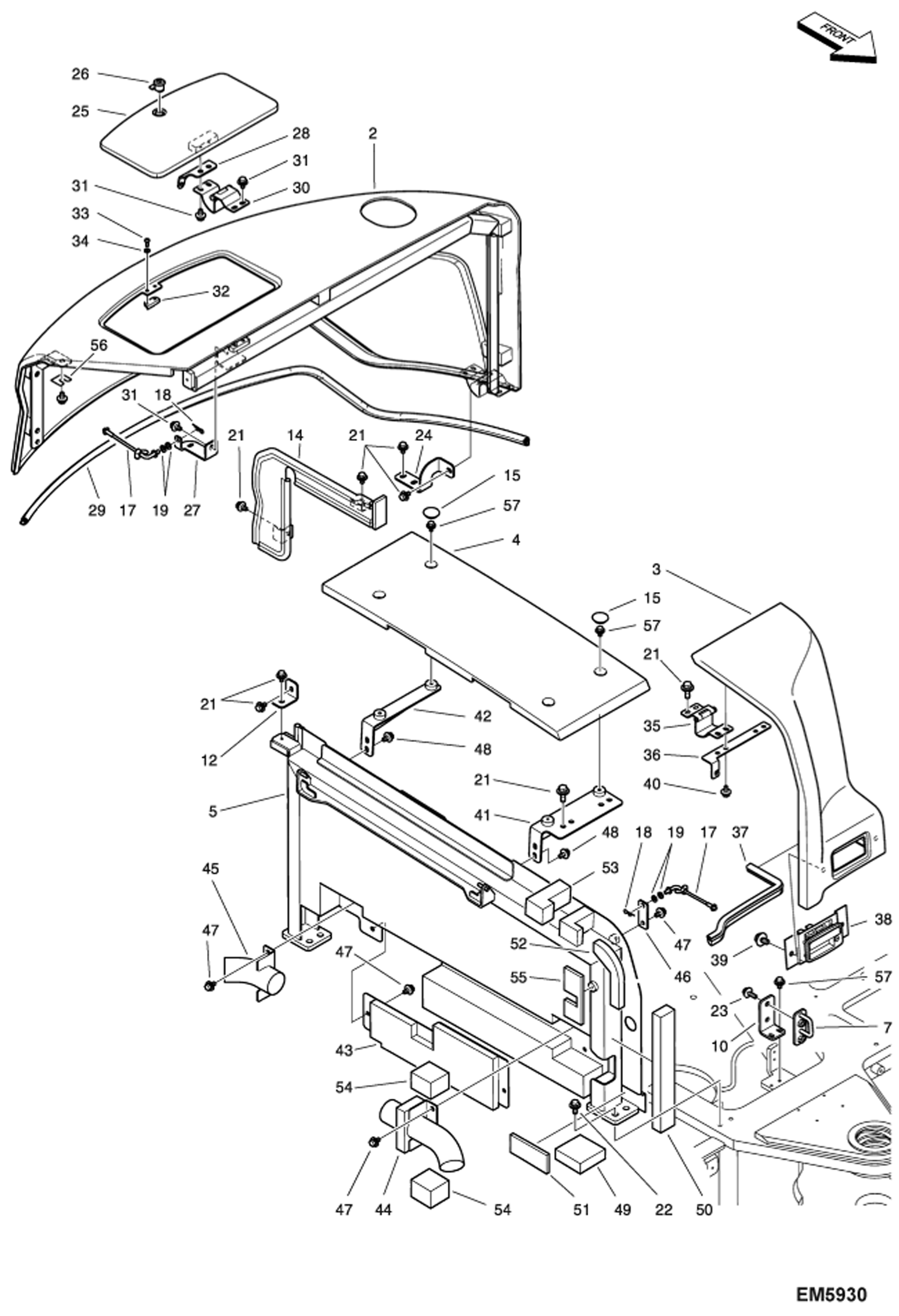

Запчасти Bobcat E80 TAILGATE (S/N AET311001-11191 + AETB11001-11191) MAIN FRAME

2

7008240

COVER, ASSY W/Ref. 25-34

3

7008241

COVER, BATTERY ASSY W/Ref. 35-40

4

7008242

COVER, SIDE

5

SUPPORT ASSY NLA - W/Ref. 41-48 Was 7008249 - A

5

SUPPORT ASSY NLA - W/Ref. 41-48 Was 7015408 - A

5

7012251

SUPPORT, ASSY W/Ref. 41-48

7

7006646

STRIKER

10

7006668

PLATE

12

7006665

PLATE

14

7008218

DIAPHRAGM, BAFFLE

15

7005658

CAP, RUBBER

17

7006662

STRAP

18

7004569

PIN

19

7007816

WASHER

21

7005129

BOLT, SET

21

7005129

BOLT, SET

22

7005124

BOLT, SET

23

7005132

BOLT SET

24

7006762

PLATE

25

7008243

COVER, ROOF

26

7006690

KEY, LOCK

27

7008252

PLATE

28

7008254

PLATE

29

7006681

SEAL, EXTRUSION

30

7008255

HINGE

31

7005129

BOLT, SET

32

7006689

PLATE

33

7007786

BOLT

34

7007833

WASHER, SPRING

35

7006644

HINGE

36

7008248

PLATE

37

7008253

STRIP, WEATHER

38

7012749

CATCH Was 7005859 - D

39

7005136

BOLT, SET

40

7005129

BOLT, SET

41

7008250

BRACKET

42

7008251

BRACKET

43

7006676

BRACKET

44

7006677

BRACKET

45

7006678

BRACKET

46

7006685

PLATE

47

7005129

BOLT, SET

48

7005136

BOLT, SET

49

7015409

SPONGE

50

7015410

FOAM

51

7015411

SEAL

52

7015412

FOAM

53

7015413

SEAL

54

7015414

FOAM

55

7015415

FOAM

56

7015416

SHIM

57

7012228

BOLT,FLANGE
