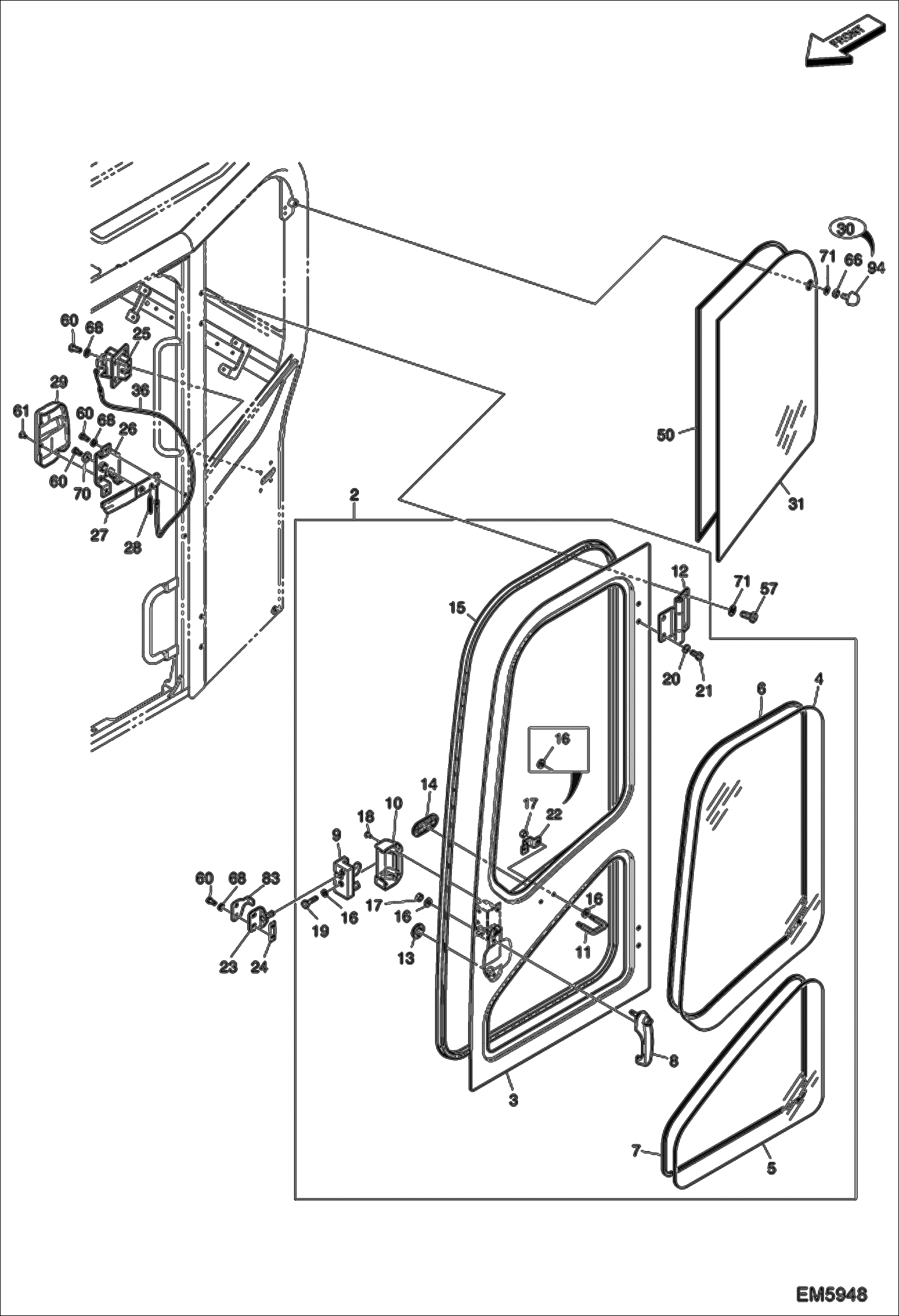

Запчасти Bobcat E80 OPERATOR CAB (Door & Windows) MAIN FRAME

2

DOOR ASSY NLA - W/Ref. 5-21 Was 7008197 - A

2

DOOR ASSY NLA - W/Ref. 5-21 Was 7015427 - A

2

DOOR ASSY NLA - W/Ref. 5-21 Was 7012495 - A

2

7017369

DOOR, ASSY W/Ref. 5-22

3

BODY, DOOR NLA - Order Ref. 2

4

7006013

DOOR, GLASS

5

7006014

DOOR, GLASS LOWER

6

7006019

DAMPER

7

7006018

DAMPER

8

7028230

HANDLE DOOR Was 7006460 - B

8

7006802

KEY, SWITCH STARTER

9

7006740

CATCH, DOOR INNER

10

7005795

COVER, CATCH

11

7004600

HOOK, CATCH DOOR

11

7013286

HOOK, CATCH DOOR

12

7006015

HINGE

13

7004617

BUSHING, RUBBER

14

7006017

COVER

15

7005813

SEAL, EXTRUSION Was 7006016 - A

16

7004515

WASHER

16

7004515

WASHER

17

7007796

NUT

18

7004548

BOLT

19

7004551

BOLT

20

7004512

WASHER, PLAIN

21

7004534

BOLT

22

7017370

BRACKET

23

7029427

STRIKER Was 7006289 - B

24

7005992

PLATE

25

7004591

LOCK, BACK

26

7006178

BRACKET, LEVER

27

7006179

LEVER, BACK LOCK

28

7004595

SPRING

29

7006180

COVER, LEVER

30

7003928

STOP, SLIDE DOOR

31

7006174

GLASS, LH

36

7003913

WIRE

50

7006078

DAMPER Was 7006193 - D

57

7004534

BOLT

60

7004546

BOLT

61

7004547

BOLT

66

7004563

NUT

68

7004515

WASHER

70

7004520

WASHER PLAIN

71

7004512

WASHER, PLAIN

83

7006290

PLATE

94

7012496

STOPPER, RUBBER
