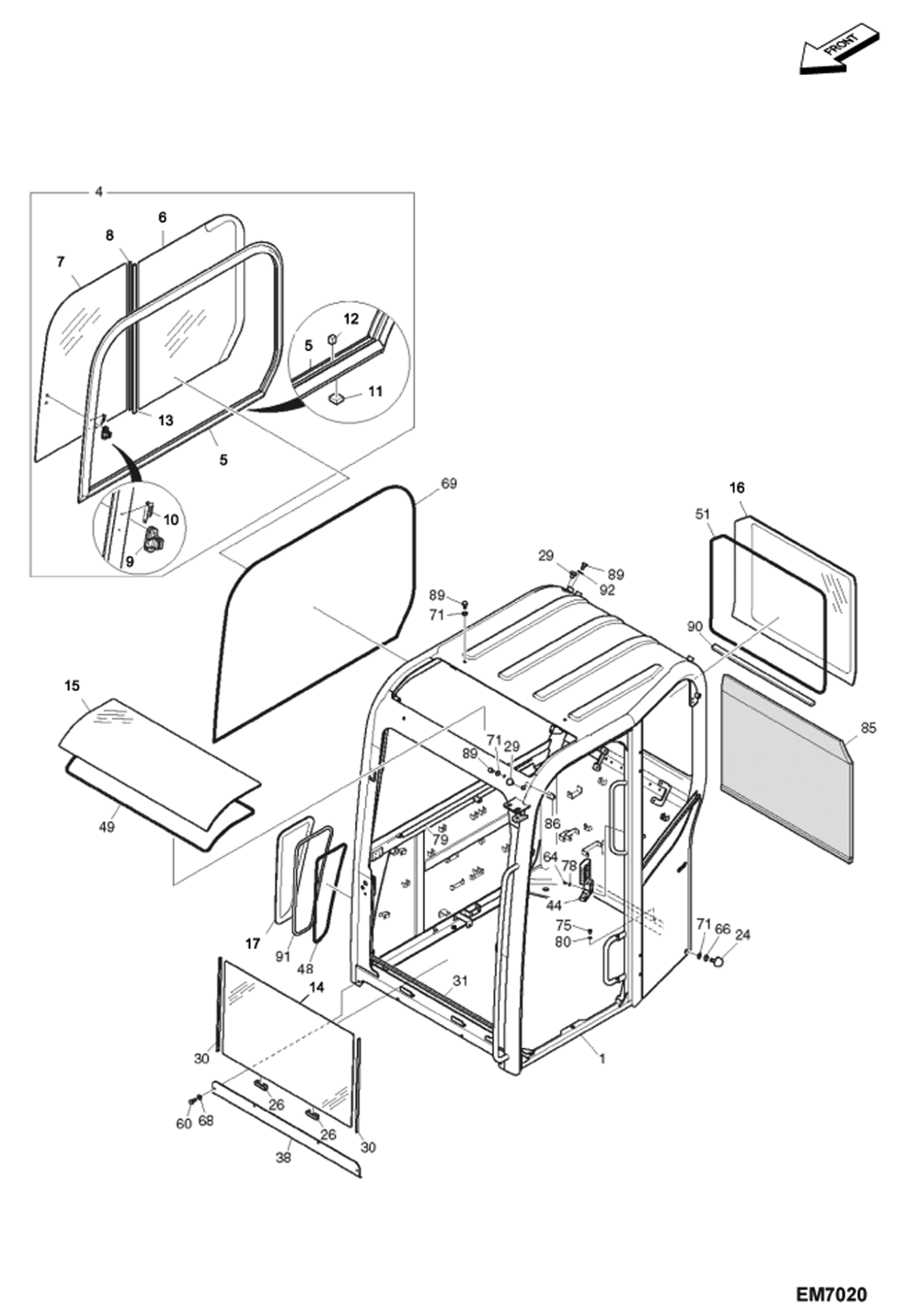

Запчасти Bobcat E80 OPERATOR CAB (Windows) MAIN FRAME

1

CAB ASSY NLA Was 7006605 - A

1

CAB ASSY NLA Was 7015428 - A

1

CAB ASSY NLA Was 7012578 - A

1

CAB ASSY NLA Was 7017368 - A

1

CAB ASSY NLA Was 7020702 - A

1

7024532

CAB, ASSY See next pages for additional parts that are all included within this assy

4

7006022

FRAME, SASH ASSY RH W/Ref. 5-13

5

FRAME, SASH NLA - Order Ref. 4

6

7006783

GLASS

7

7006782

GLASS

8

7004623

STRIP

9

7004584

LOCK

10

7003867

LOCK, STOP

11

7005046

STOP, RUBBER

12

7004627

STOP, GLASS

13

7004931

BAR

14

7006172

GLASS, LOWER

15

7006173

GLASS, UPPER

16

7006175

GLASS, REAR

17

7006176

GLASS, LOWER RH

24

7003928

STOP, SLIDE DOOR

26

7004624

STOP, RUBBER

29

7004620

BUSHING, RUBBER

30

7006183

EDGE, RUBBER

31

7005857

SEAL, EXTRUSION

38

7006187

COVER FRONT

44

7004838

TOOL HAMMER

48

7006018

DAMPER Was 7006191 - D

49

7006078

DAMPER Was 7006192 - D

51

7006078

DAMPER Was 7006194 - D

60

7004546

BOLT

64

7004540

BOLT

66

7004563

NUT

68

7004515

WASHER

69

7006278

DAMPER

71

7004512

WASHER, PLAIN

75

7007785

SCREW, M6X1.0X12

78

7007808

WASHER

79

7006246

FOAM, POLYURETHANE

80

7007833

WASHER, SPRING

85

7006291

FOAM

86

7005588

BUSHING, RUBBER

89

7004544

BOLT

90

7006716

FOAM

91

7006647

EDGE

92

7004509

WASHER
