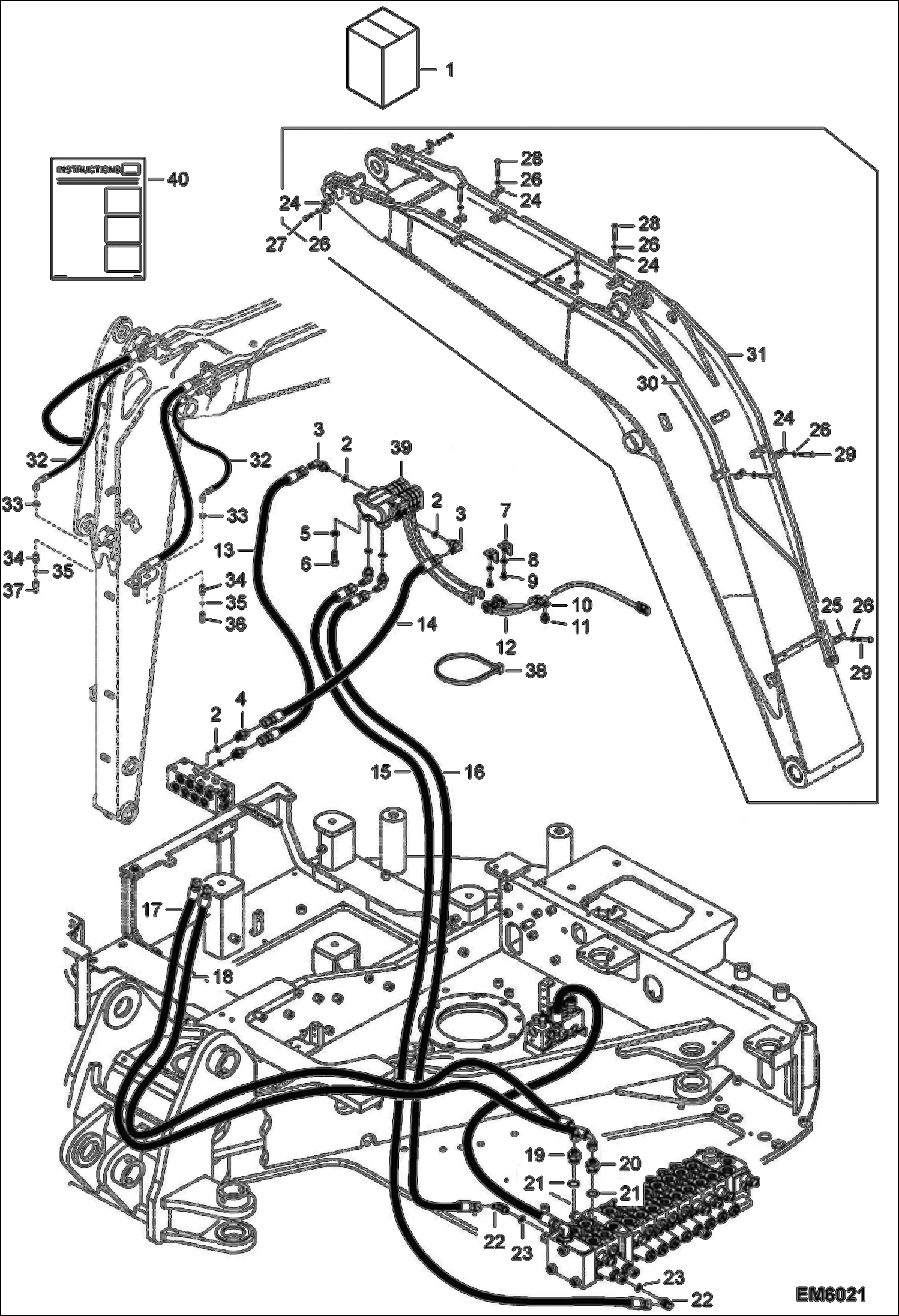

Запчасти Bobcat E80 2ND AUXILIARY HYDRAULICS KIT (Long Arm) (US) ACCESSORIES & OPTIONS

1

7178245

KIT, AUX 2ND Ref. 2-40

2

7007906

O-RING

3

7004713

ELBOW Was 7008144 - B,D

4

7004683

ADAPTER

5

7007842

WASHER SPRING

6

7008297

BOLT, SOCKET M8X1.25X30

7

7004824

BRACKET HOUSING

8

7007833

WASHER, SPRING

9

7007602

BOLT

10

7003894

CLIP

11

7005629

BOLT

12

7006627

HARNESS JOINT

13

7005469

HOSE

14

7005471

HOSE

15

7005476

HOSE

16

7005491

HOSE

17

7011048

HOSE, HYD

18

7011047

HOSE, HYD

19

7004677

ADAPTER

20

7005543

ADAPTER

21

7004628

O-RING

22

7005558

ELBOW

23

7007961

O-RING

24

7005920

CLAMP

25

7005921

CLAMP

26

7007835

WASHER SPRING

27

7007671

BOLT

28

7007677

BOLT

29

7007678

BOLT

30

7006039

TUBELINE

31

7006040

TUBELINE

32

7022844

HOSE HYDRAULIC ASSY Was 7005394 - B

33

7010969

NUT Was 7003875 - A

34

7010024

ADAPTER

35

7009947

O-RING

36

6672960

COUPLER, FF FEMALE

37

6674688

COUPLER, FF MALE

38

6624289

STRAP, TIE

39

7008284

VALVE, SOLENOID

40

6987468

INSTRUCTIONS
