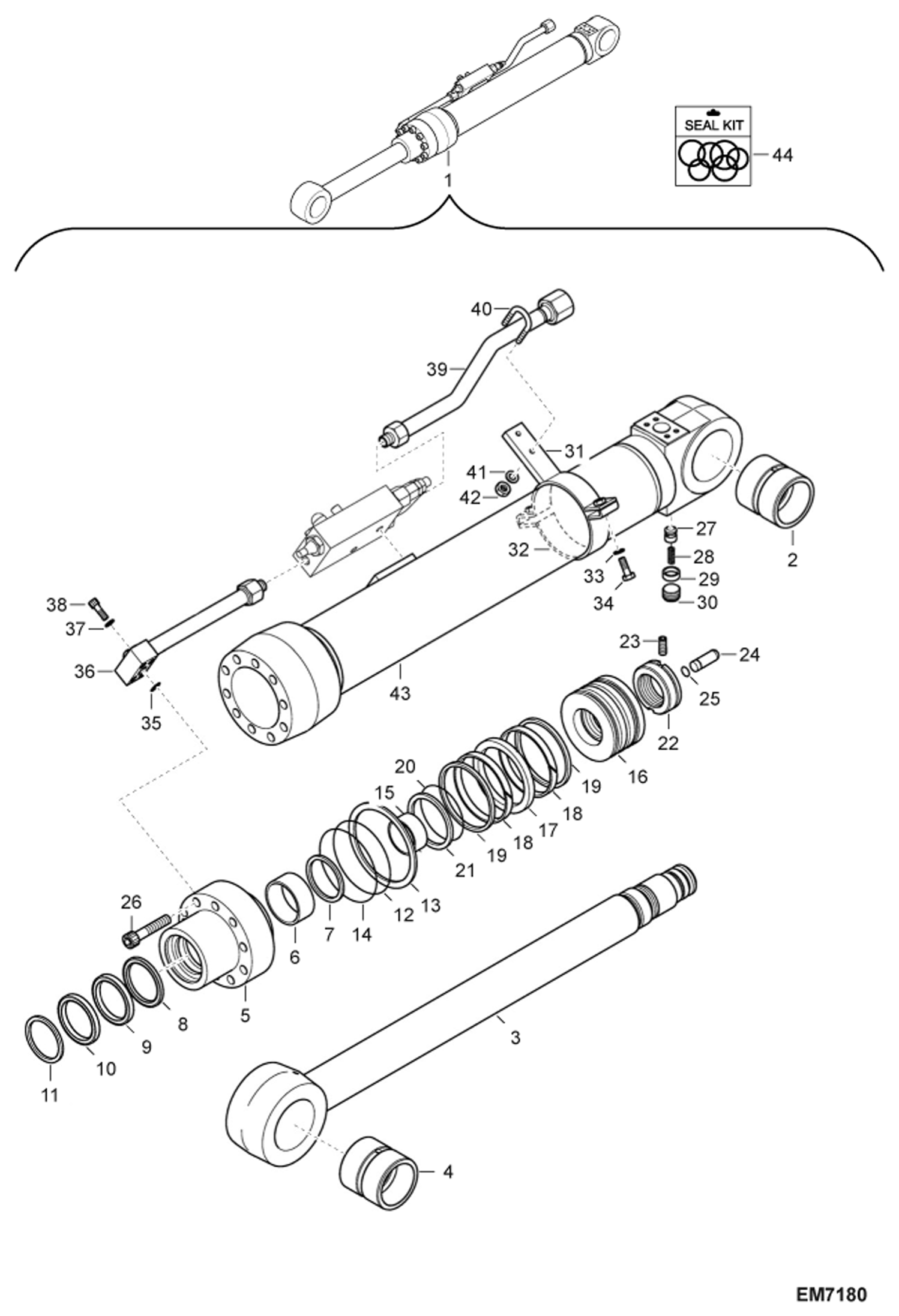

Запчасти Bobcat E80 ARTICULATED BOOM (Arm Cylinder) (W/Lock Valve) (EMEA) ACCESSORIES & OPTIONS

1

7006799

CYLINDER ARM LOCK VALVE W/Lock valve - W/Ref. 2-43

1

7012248

CYLINDER;ARM W/Ref. 2-43

2

7006005

BUSHING

3

7007530

ROD ASSY

4

7006005

BUSHING

5

7007509

COVER ROD

6

7003709

BUSHING DD

7

7003722

RING RETAINING

8

7003788

SEAL BUFFER

9

7003758

SEAL

10

7003791

WIPER DUST

11

7003862

RING RETAINING

12

7007944

O-RING

13

7003766

RING BACK-UP

14

7007945

O-RING

15

7006835

RING CUSHION

16

7006847

PISTON

17

7003947

SEAL SLIPPER

18

7007507

RING WEAR

19

7007502

RING DUST

20

7003755

O-RING

21

7006829

RING BACK-UP

22

7006830

NUT PISTON

23

7007792

SCREW SET

24

7003836

DIAPHRAGM PLUNGER CUSHION

25

7003728

RING STOP

26

7007772

BOLT HEX SOCKET

27

7003826

VALVE CHECK

28

7003742

SPRING

29

7003824

PLATE THRUST

30

7004674

PLUG PT3/8

31

7007532

TUBELINE BAND ASSY

32

7007508

BAND TUBELINE

33

7007830

WASHER SPRING

34

7007669

BOLT Was 7014864 - D

35

7007913

O-RING Was 7007912 - B

36

7008290

TUBELINE ASSY

37

7007829

WASHER

38

7007740

BOLT SOCKET M8X45

39

7008291

TUBELINE ASSY

40

7007505

U-BOLT

41

7007829

WASHER

42

7007769

BOLT SOCKET

43

7007529

TUBELINE ASSY

44

7007412

KIT, SEAL Ref. 8-10, 12-14 & 17-21
