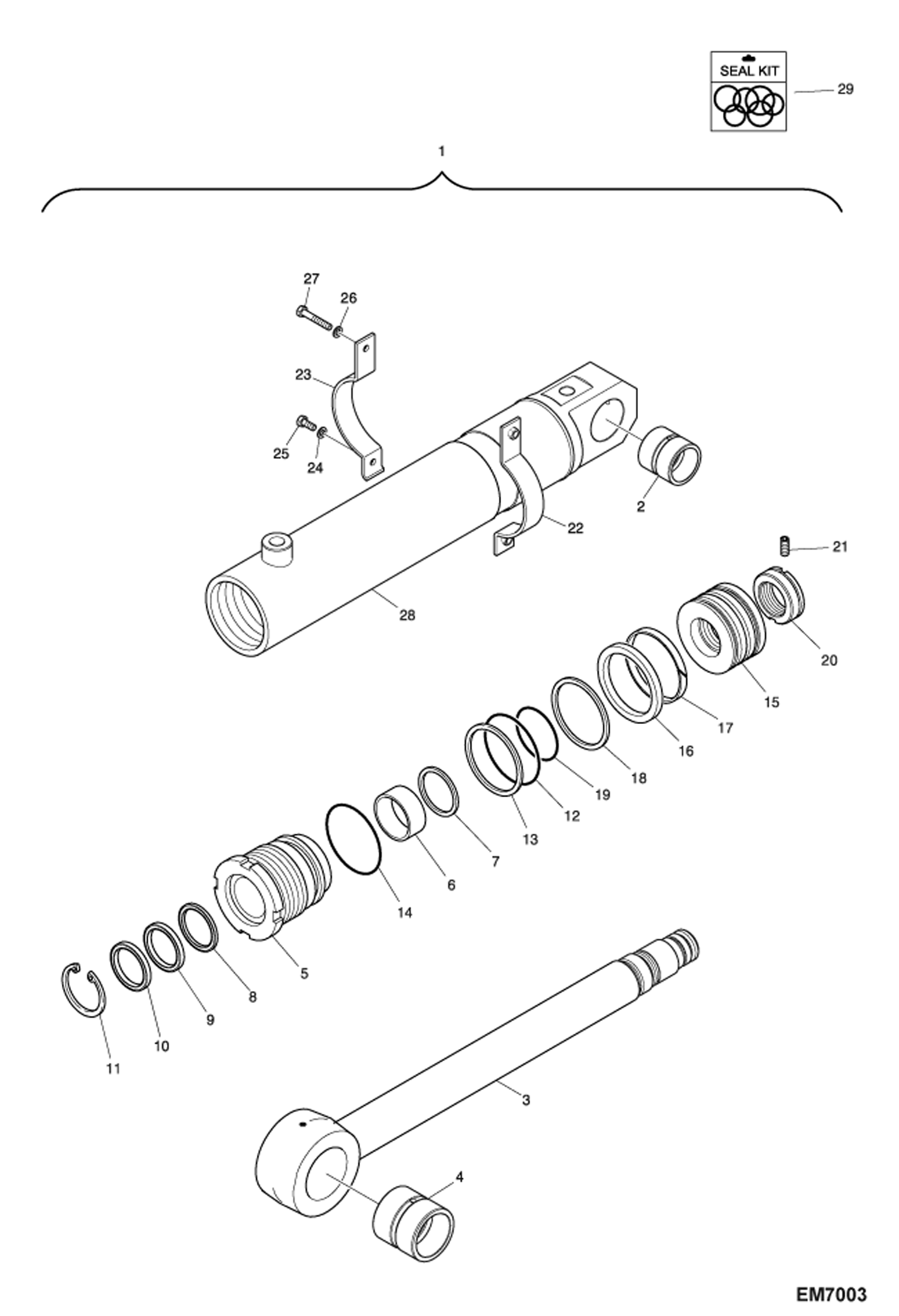

Запчасти Bobcat E80 ARTICULATED BOOM (Upper Boom Cylinder) (EMEA) ACCESSORIES & OPTIONS

1

7015680

CYLINDER,ARTI;LOCK V/V W/Ref. 2-28

2

7005752

BUSHING

3

7015677

ROD ASSY,CYLINDER

4

7006006

BUSHING

5

7015678

COVER,ROD

6

7015679

BUSHING

7

7007503

RING RETAINING

8

7007025

SEAL BUFFER

9

7003759

SEAL

10

7003792

WIPER DUST

11

7003724

RING RETAINING

12

7007944

O-RING

13

7015681

RING,BACK UP

14

7007945

O-RING

15

7015682

PISTON

16

7015683

SEAL

17

7006827

RING WEAR

18

7006828

RING DUST

19

7007935

O-RING

20

7015684

NUT,PISTON

21

7015685

SCREW,SET

22

7015686

BAND ASSY,PIPE

23

7015947

BAND,PIPE

24

7007829

WASHER

25

7015948

BOLT

26

7007829

WASHER

27

7015949

BOLT

28

7015676

TUBE ASSY

29

7015950

SEAL KIT;ARTI BOOM Ref. 8-10, 12-14 & 16-19
