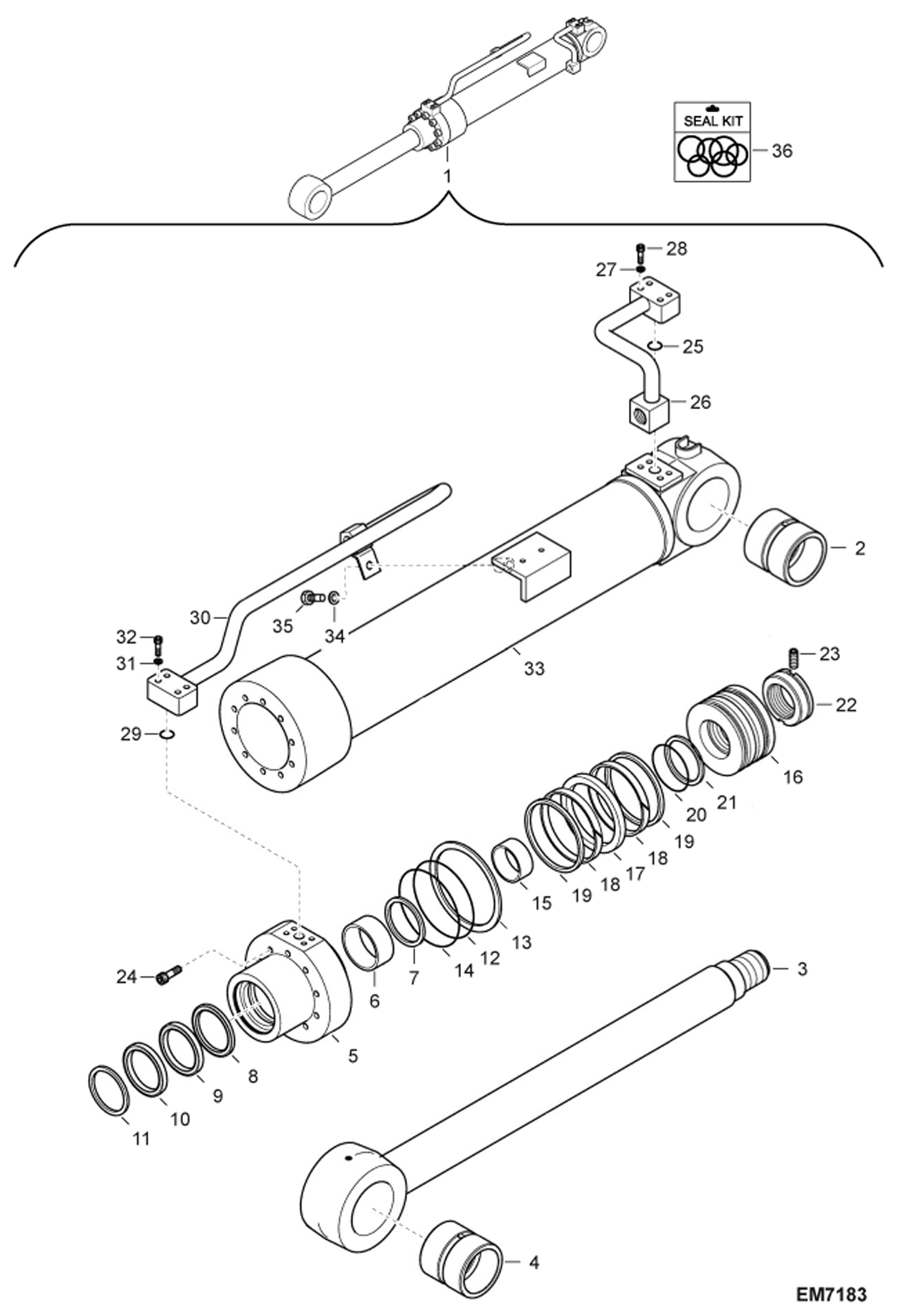

Запчасти Bobcat E80 ARTICULATED BOOM (Lower Boom Cylinder) (EMEA) ACCESSORIES & OPTIONS

1

7027065

CYLINDER W/Ref. 2-35 Was 7022860 - B

2

7006004

BUSHING

3

7007537

ROD ASSY

4

7006004

BUSHING

5

7027066

COVER, ROD Was 7007535 - B

6

7003708

BUSHING DD

7

7003864

RING RETAINING

8

7003948

SEAL BUFFER

9

7003797

SEAL

10

7003789

WIPER DUST

11

7006832

RING RETAINING

12

7007950

O-RING

13

7006833

RING BACK-UP

14

7007951

O-RING

15

7006933

RING CUSHION

16

7007512

PISTON

17

7003779

RING GLYD

18

7003783

RING WEAR

19

7006834

RING DUST

20

7003754

O-RING

21

7003765

RING BACK-UP

22

7003735

NUT PISTON

23

7007792

SCREW SET

24

7007775

BOLT HEX SOCKET

25

7007919

O-RING

26

7007541

TUBELINE ASSY-H

27

7007830

WASHER SPRING

28

7007754

BOLT SOCKET Was 7007753 - A

29

7007913

O-RING Was 7007912 - B

30

7007542

TUBELINE ASSY-R

31

7007829

WASHER

32

7007742

BOLT SOCKET

33

7007540

TUBE, CASE CYL

34

7007830

WASHER SPRING

35

7007626

BOLT Was 7007625 - A

36

7022060

KIT, SEAL Ref. 8-10, 12-14 & 17-21 Was 7004992 - A
