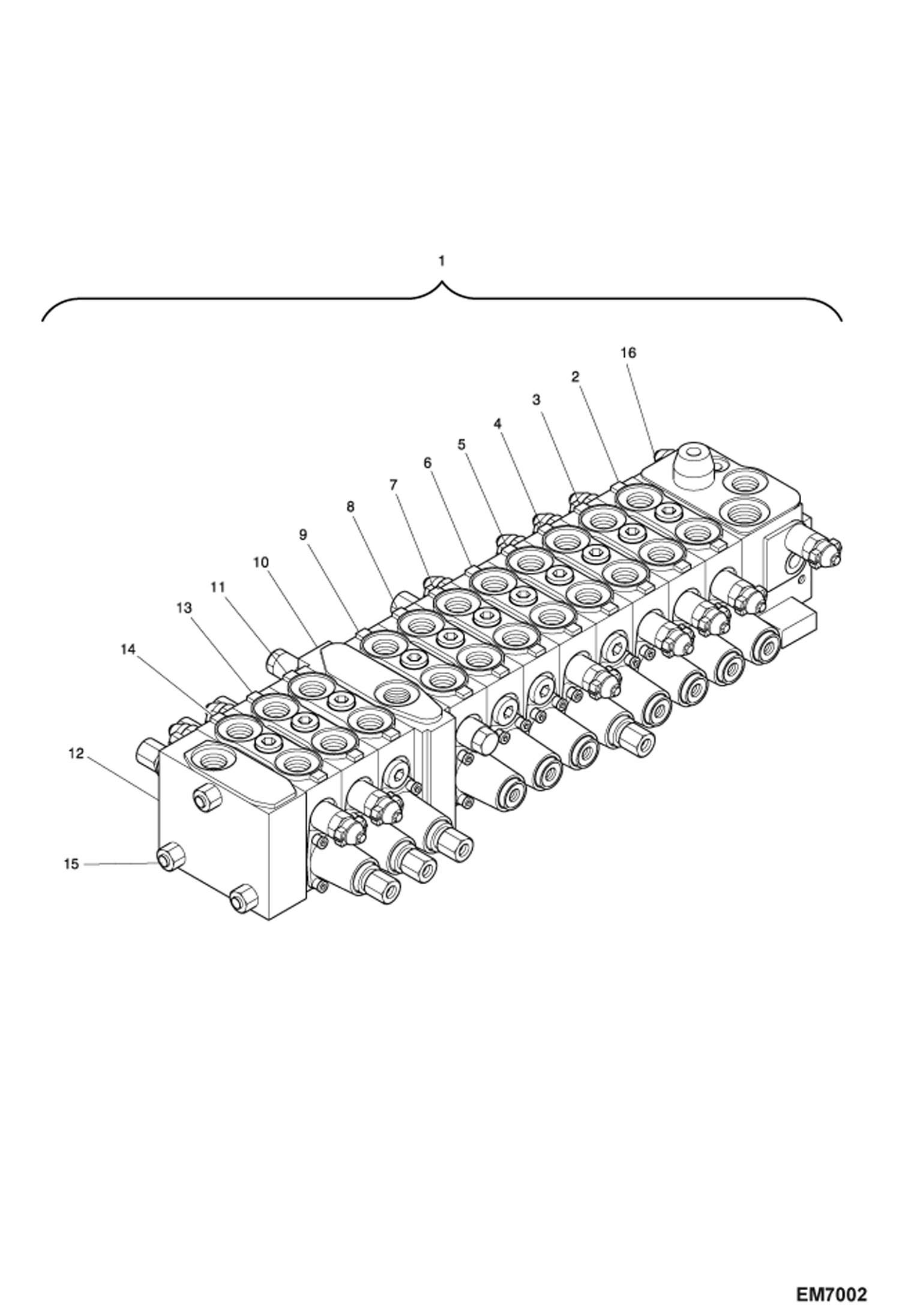

Запчасти Bobcat E80 ARTICULATED BOOM (Control Valve) (EMEA) ACCESSORIES & OPTIONS

1

7015672

VALVE,CONTROL;ARTI&ROTATING W/Ref. 2-16

2

7007591

BLOCK BOOM See Illustration VALVE SECTION/ E80-4170

3

7007592

BLOCK BUCKET See Illustration VALVE SECTION/ E80-4190

4

7007587

BLOCK ARM See Illustration VALVE SECTION/ E80-4180

5

7007583

BLOCK DOZER See Illustration VALVE SECTION/ E80-4210

6

7015670

BLOCK;OPTION See Illustration VALVE SECTION/ EM5633

7

7007593

BLOCK TRAVEL LH See Illustration VALVE SECTION/ E80-4220

8

7007594

BLOCK TRAVEL RH See Illustration VALVE SECTION/ E80-4230

9

7007585

BLOCK BOOM SWING See Illustration VALVE SECTION/ E80-4240

10

7007586

BLOCK INLET See Illustration VALVE SECTION/ E80-4250

11

7007588

BLOCK SWING See Illustration VALVE SECTION/ E80-4260

12

7007598

ROD TIE 611L

13

7007597

BLOCK ROTATING See Illustration VALVE SECTION/ E80-4430 2ndAux

14

7015673

BLOCK;ROTATING/ARTI See Illustration ARTICULATED BOOM/ EM7000

15

7015674

ROD KIT,TIE

16

7007589

BLOCK INLET See Illustration VALVE SECTION/ E80-4160
