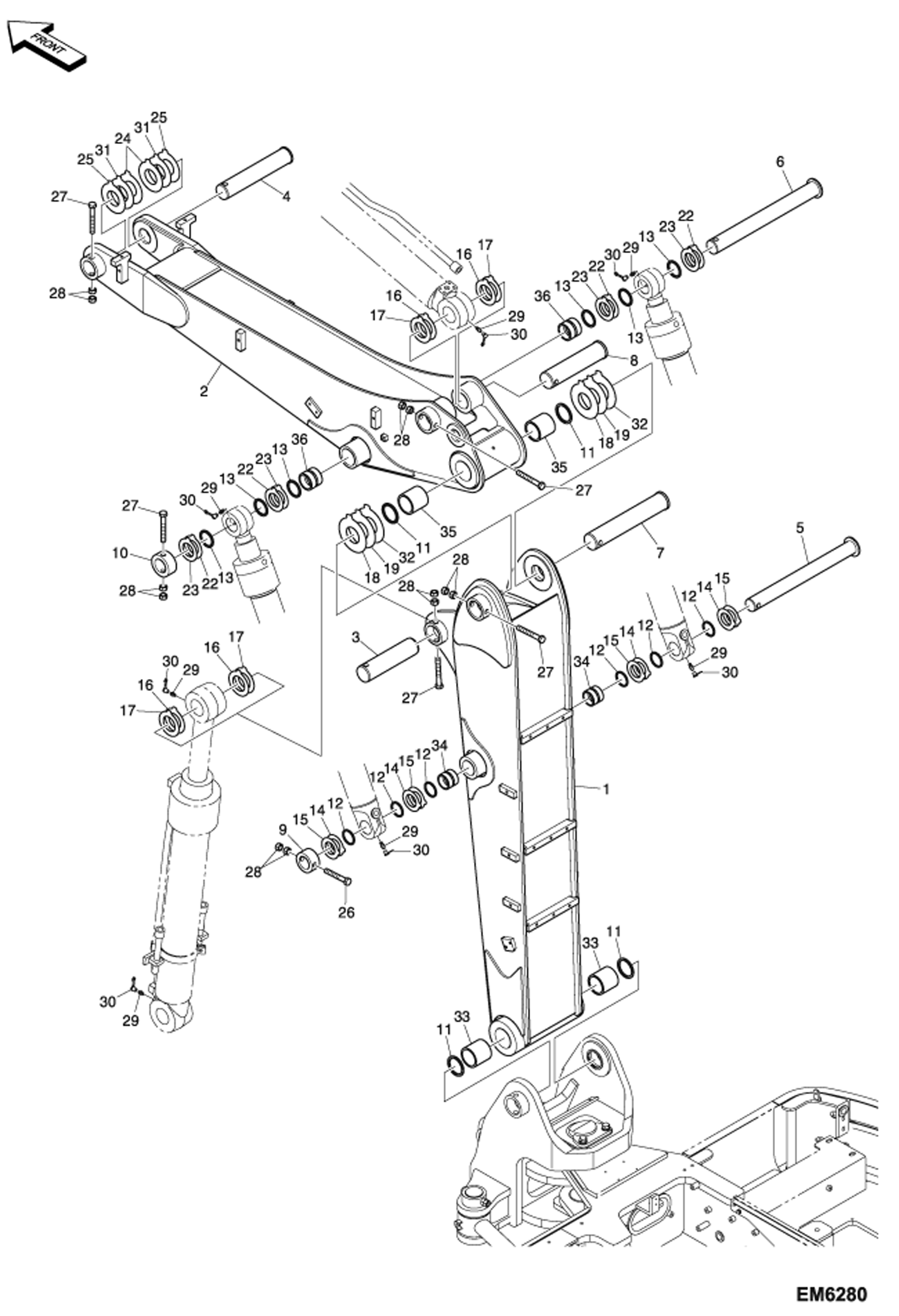

Запчасти Bobcat E80 ARTICULATED BOOM (EMEA) ACCESSORIES & OPTIONS

1

BOOM, LOWER NLA - W/Ref. 33-34 Was 7015658 - A

1

7022858

BOOM W/Ref. 33-34

2

7015640

BOOM,UPPER W/Ref. 35-36

3

PIN NLA Was 7003884 - A

3

7022870

PIN

4

PIN NLA Was 7003886 - A

4

7022871

PIN

5

PIN NLA Was 7015953 - A

5

7022872

PIN

6

PIN NLA Was 7015954 - A

6

7022873

PIN

7

PIN NLA Was 7015955 - A

7

7022874

PIN

8

PIN NLA Was 7015956 - A

8

7022875

PIN

9

STOPPER NLA Was 7015957 - A

9

7022842

STOP

10

STOPPER NLA Was 7015958 - A

10

7022843

STOP

11

7004640

SEAL DUST

12

7004638

SEAL DUST

13

7004639

SEAL DUST

14

7015959

SHIM 51X85X1.0T

15

7015960

SHIM 51X85X1.6T

16

7005615

SHIM 1.0T 1,0 mm

17

7005616

SHIM 1.6T 1,6 mm

18

7005612

SHIM 1.0T 1,0 mm

19

7005614

SHIM 1.6T 1,6 mm

22

7015961

SHIM 56X90X1.0T

23

7015962

SHIM 56X90X1.6T

24

7005617

SHIM 1.0T 1,0 mm

25

7005619

SHIM 1.6T 1,6 mm

26

7007709

BOLT

27

7007710

BOLT

28

7007801

NUT M16X1.0

29

6694227

FITTING, GREASE Was 7010247 - C

29

6694227

FITTING, GREASE

30

7003923

CAP GREASE NIPPLE

30

7003923

CAP GREASE NIPPLE

31

7005618

SHIM 1.3T 1,3 mm

32

7005613

SHIM 1.3T 1,3 mm

33

7006000

BUSHING

34

7005752

BUSHING

35

7006000

BUSHING

36

7006006

BUSHING
