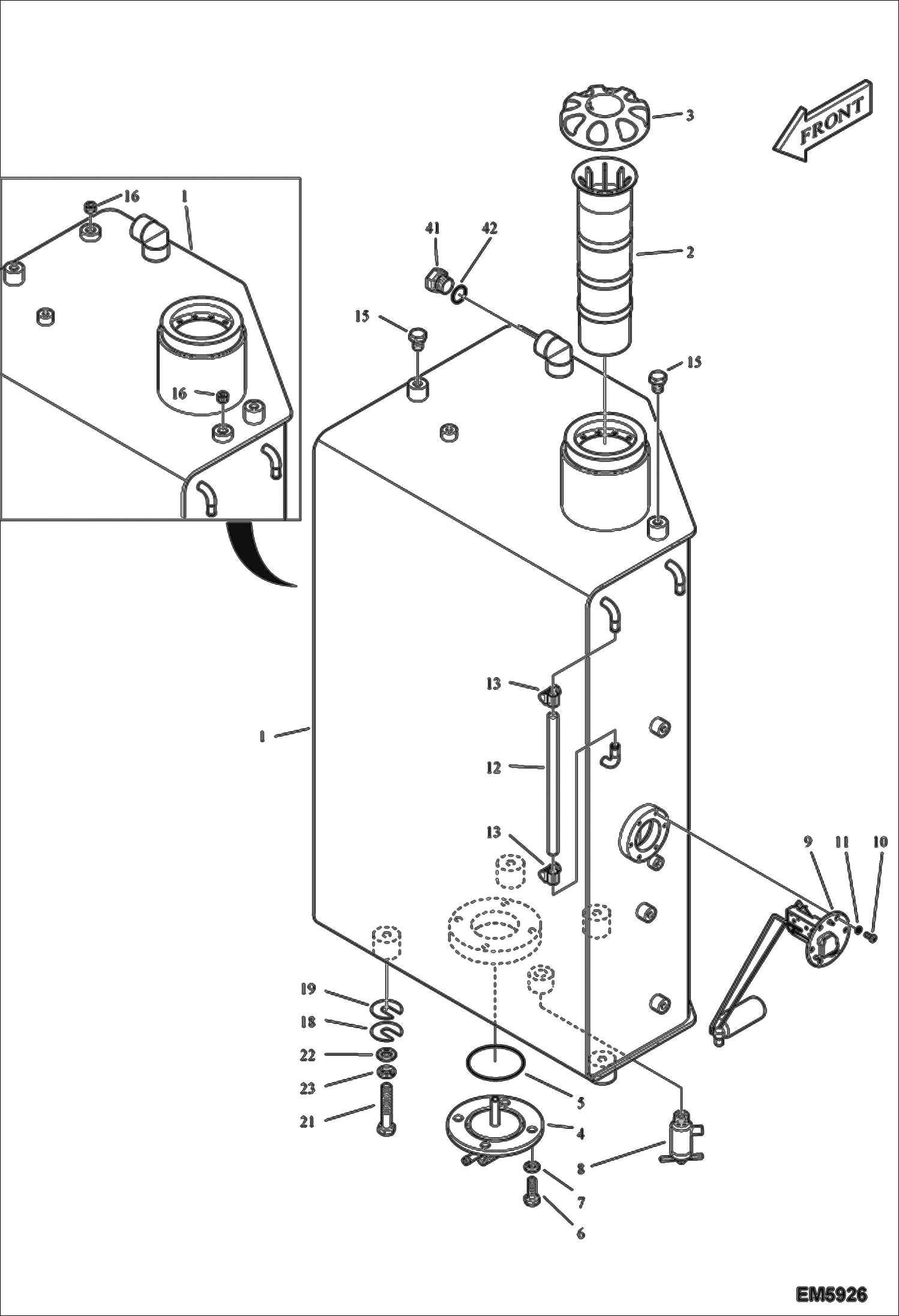

Запчасти Bobcat E80 FUEL SYSTEM (Tank) POWER UNIT

1

7012252

TANK,FUEL Was 7008198 - A

1

7023690

TANK, FUEL Was 7020700 - A

2

7004995

FILTER FUEL STRAINER

3

7005641

CAP, FUEL LOCKING

4

7006086

COVER

5

7004635

O-RING

6

7007628

BOLT

7

7007835

WASHER SPRING

8

7004801

FITTING COCK

9

7020972

SENSOR FUEL Was 7006320 - A

10

7007780

BOLT M5X0.8X12

11

7007827

WASHER SPRING

12

7006236

HOSE FUEL LEVEL

13

7007973

CLAMP

15

7007635

BOLT M12X1.75X16

16

7004673

PLUG use W/Ref. 7008198 tank

18

7003859

SHIM

19

7006522

SHIM

21

7024727

BOLT Was 7007687 - B

22

7007819

WASHER, PLAIN

23

7007836

WASHER SPRING M12

41

7004736

PLUG

42

7007911

O-RING
