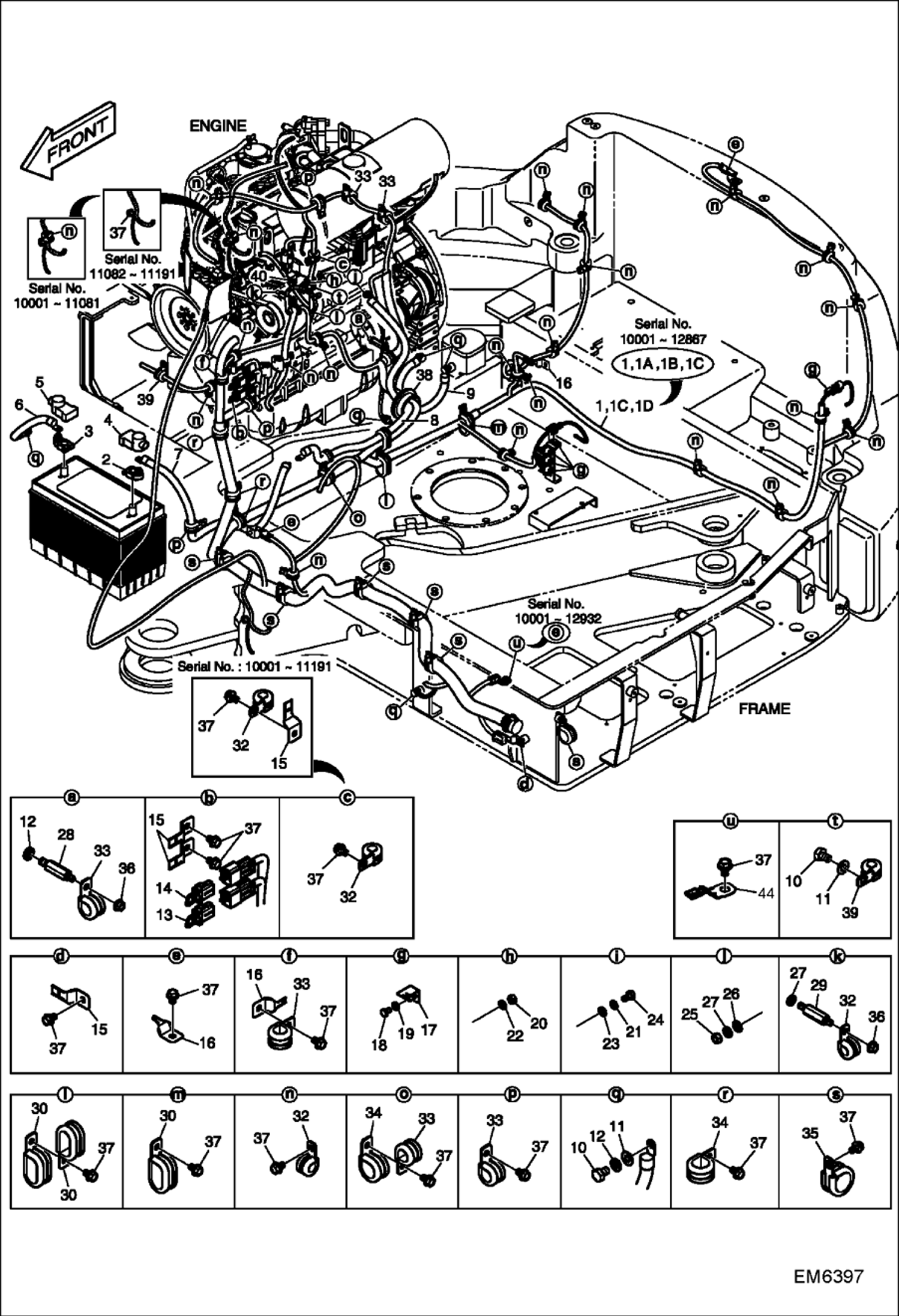

Запчасти Bobcat E80 ELECTRICAL (Engine) ELECTRICAL SYSTEM

1

7006474

HARNESS MAIN W/Ref. 2-4

1

7017371

HARNESS, MAIN W/Ref. 2-4

1

7017373

HARNESS, MAIN W/Ref. 2-4

2

7004913

RESITOR DIODE

3

7005030

RESISTOR DIODE ASSY 3A

4

7005627

RESITOR DIODE

5

7004616

CAP BATT TML - negative

6

7004921

CABLE BATTERY

7

7004923

CABLE BATT-BATT RY

8

7004919

CABLE BATTERY

9

7005036

CABLE E/G EARTH

10

7007623

BOLT

10

7007623

BOLT

11

7007818

WASHER, PLAIN M10

11

7007818

WASHER, PLAIN M10

12

7007835

WASHER SPRING

13

7004896

LINK FUSIBLE

14

7005009

FUSIBLE LINK

15

7004825

BRACKET HOUSING

15

7004825

BRACKET HOUSING

16

7004826

BRACKET, HOUSING

16

7004826

BRACKET, HOUSING

17

7004824

BRACKET HOUSING

18

7007602

BOLT

19

7007833

WASHER, SPRING

20

7007794

NUT

21

7007827

WASHER SPRING

22

7007827

WASHER SPRING

23

7007810

WASHER

24

7007600

BOLT

25

7007796

NUT

26

7007816

WASHER

27

7007834

WASHER SPRING

28

7003871

BOLT STUD

29

7003870

BOLT STUD

30

7003905

CLIP

32

7003894

CLIP

32

7003894

CLIP

32

7003894

CLIP

33

7003895

CLIP

34

7003896

CLIP

35

7003897

CLIP

36

7004561

NUT

37

7005629

BOLT

37

7005629

BOLT

38

7004618

BUSHING RUBBER

39

7003893

CLIP

39

7003893

CLIP

40

7017372

BRACKET

41

7004917

TERMINAL BATTERY + positive

42

7008150

TERMINAL, BATTERY(-) negative

43

7004615

CAP BATT TML + positive
