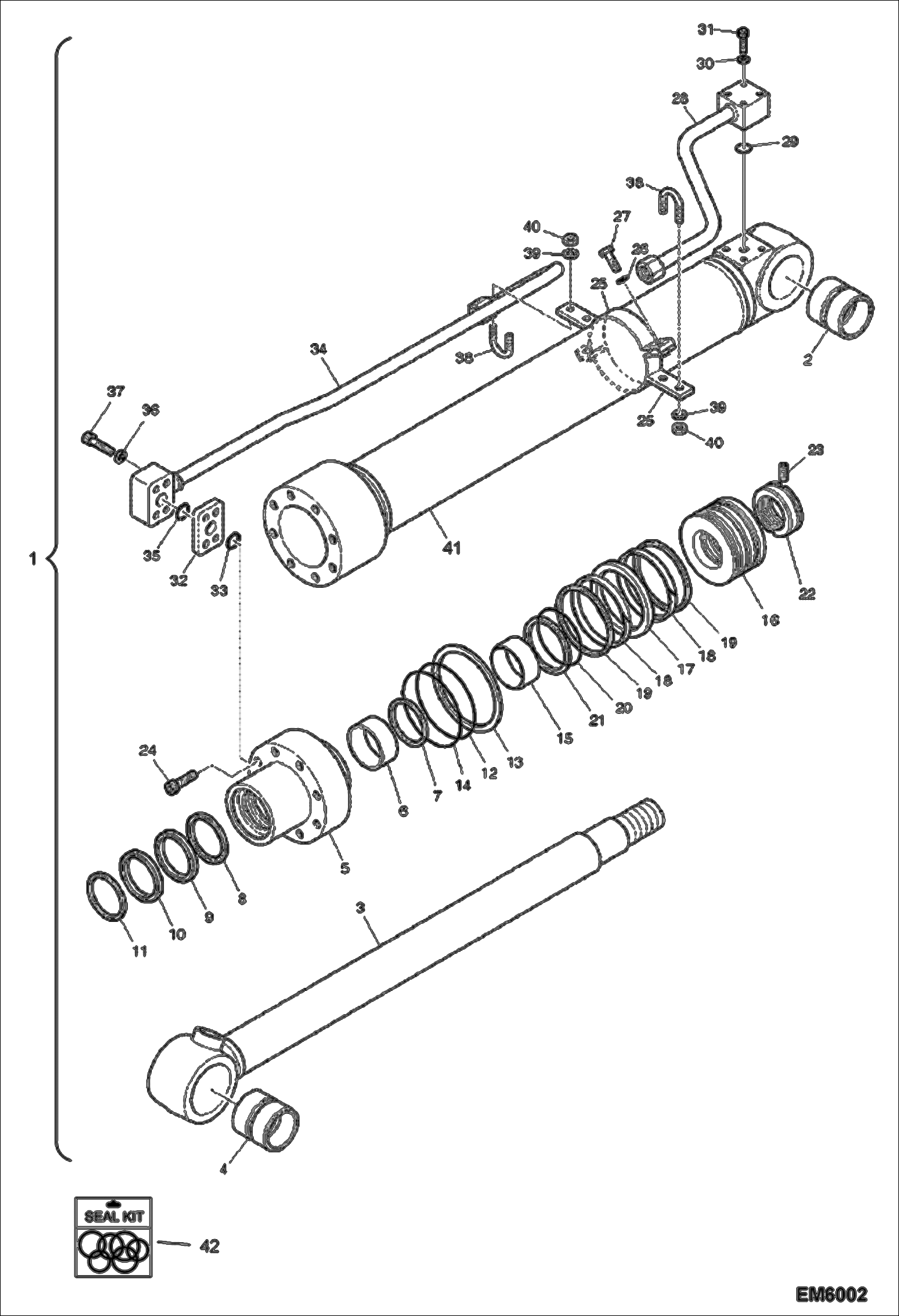

Запчасти Bobcat E80 BUCKET CYLINDER HYDRAULIC SYSTEM

1

7012249

CYLINDER;BUCKET W/Ref. 2-41 Was 7006049 - A

2

7005752

BUSHING

3

7007525

ROD ASSY

4

7006006

BUSHING

5

7007522

COVER ROD

6

7003710

BUSHING DD

7

7007503

RING RETAINING

8

7007025

SEAL BUFFER

9

7003759

SEAL

10

7003792

WIPER DUST

11

7003724

RING RETAINING

12

7007939

ORING

13

7007504

RING BACK-UP

14

7007941

O-RING

15

7007501

RING CUSHION

16

7007523

PISTON

17

7007024

RING GLYD

18

7007506

RING WEAR

19

7007022

RING DUST

20

7007925

O-RING

21

7007968

RING BACK-UP

22

7003738

NUT PISTON

23

7007792

SCREW SET

24

7007767

BOLT HEX SOCKET

25

7007526

TUBELINE BAND ASSY

26

7007830

WASHER SPRING

27

7007669

BOLT Was 7007668 - A

28

7007527

TUBELINE ASSY-H

29

7007913

O-RING Was 7007912 - B

30

7007829

WASHER

31

7007742

BOLT SOCKET

32

7007510

SPACER

33

7007913

O-RING Was 7007912 - B

34

7007528

TUBELINE ASSY-R

35

7007913

O-RING Was 7007912 - B

36

7007829

WASHER

37

7007742

BOLT SOCKET

38

7007505

U-BOLT

39

7007829

WASHER

40

7007796

NUT

41

7007524

TUBELINE ASSY

42

7023172

KIT, SEAL Ref. 8-10, 12-14 & 17-21 Was 7004993 - B
