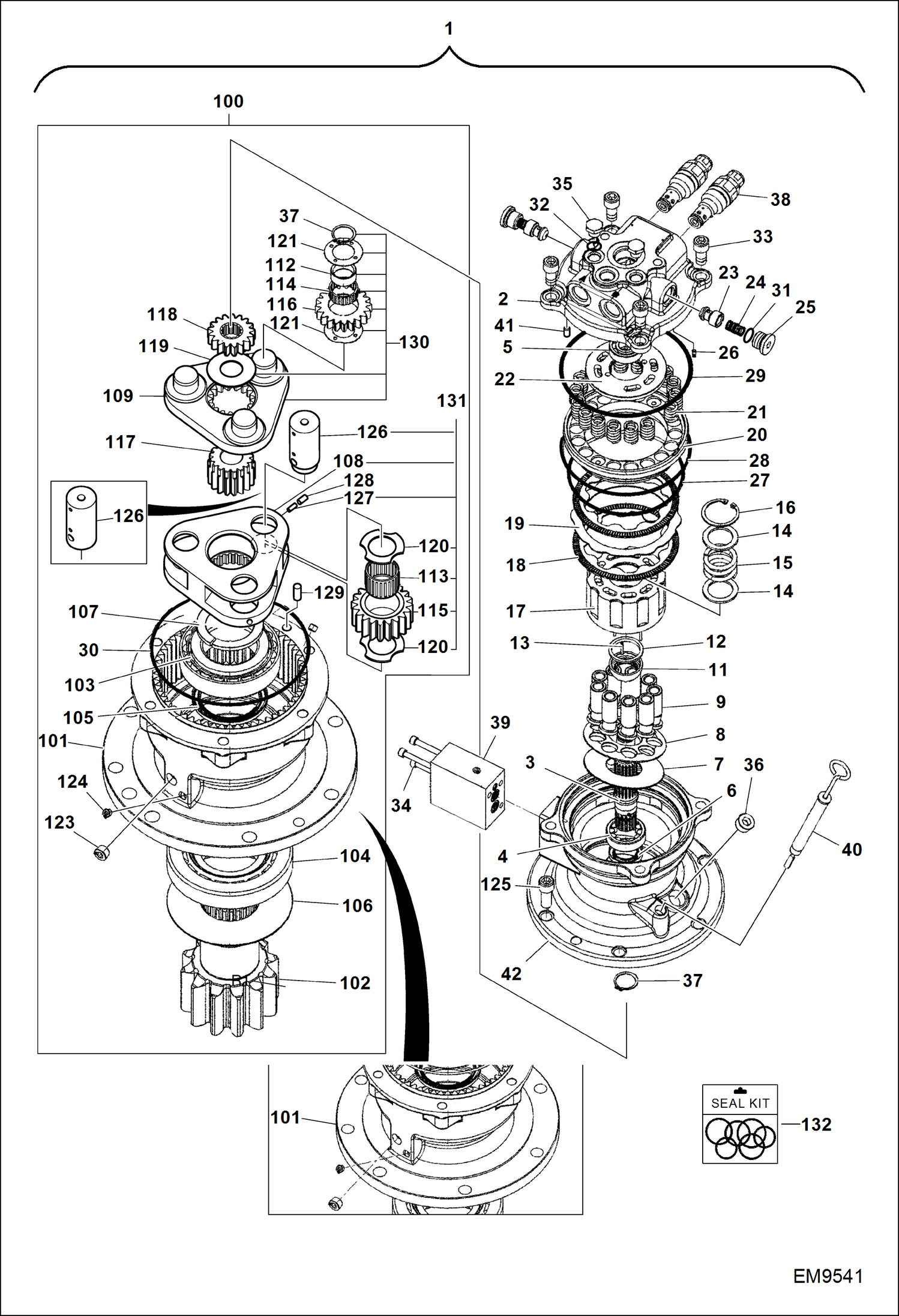

Запчасти Bobcat E80 SLEW MOTOR (S/N AETB11720 & Above, AET311720 & Above) HYDRAULIC SYSTEM

1

7023984

MOTOR, SLEW Ref. 2-127 Was 7024784 - A

2

7024785

HOUSING, VALVE

3

7007392

SHAFT DRIVE

4

7007234

BEARING ROLLER

5

7007403

BEARING BALL

6

7007404

SEAL OIL

7

7024786

PLATE, SHOE

8

7007387

PLATE RETAINER

9

7007410

PISTON ASSY

11

7007388

BALL THRUST

12

7007054

WASHER

13

7007389

ROLLER

14

7004015

WASHER

15

7007390

SPRING

16

7007884

RING SNAP

17

7007411

BLOCK CYLINDER

18

7003820

PLATE FRICTION

19

7003821

PLATE MATING

20

7007393

PISTON BRAKE

21

7007391

SPRING BRAKE

22

7024787

PLATE, VALVE

23

7007218

ROLLER PLUNGER

24

7007219

SPRING CHECK

25

7007199

PLUG

26

7007848

PIN PARALLEL

27

7004658

O-RING

28

7004659

O-RING

29

7004660

O-RING

30

7004661

O-RING

31

7007911

O-RING

32

7007906

O-RING

33

7007757

BOLT SOCKET

34

7007731

BOLT SOCKET

35

7004732

PLUG

36

7004675

PLUG

37

7007873

RING SNAP

38

7024789

VALVE, RELIEF

39

7024788

VALVE

40

7007409

GAUGE OIL LEVEL

41

7024790

PIN, PARALLEL

42

CASING NLA - Order Ref. 1

100

7023985

GEAR Ref. 101-127

101

HOUSING, GEAR NLA - Order Ref. 100

102

7024791

SHAFT

103

7007451

BEARING TAPER ROLLER

104

7007405

BEARING TAPER ROLLER

105

7007406

SEAL OIL

106

7007396

COVER BEARING

107

7007203

COLLAR HALF

108

7024793

CARRIER

109

7024792

CARRIER

112

7024794

RING, INNER

113

7024795

BEARING, NEEDLE

114

7007233

BEARING NEEDLE

115

7024796

GEAR

116

7024797

GEAR

117

7007400

GEAR SUN NO.2

118

7007210

GEAR NO.1 SUN

119

7007212

WASHER NO.1 THRUST

120

7024798

PLATE

121

7007325

WASHER THRUST

123

7004674

PLUG PT3/8

124

7004671

PLUG PT 1/8

125

7007760

BOLT SOCKET

126

7024799

PIN

127

7024800

PIN, SPRING

128

7007415

KIT, SEAL Ref. 6, 27-32 & 105
