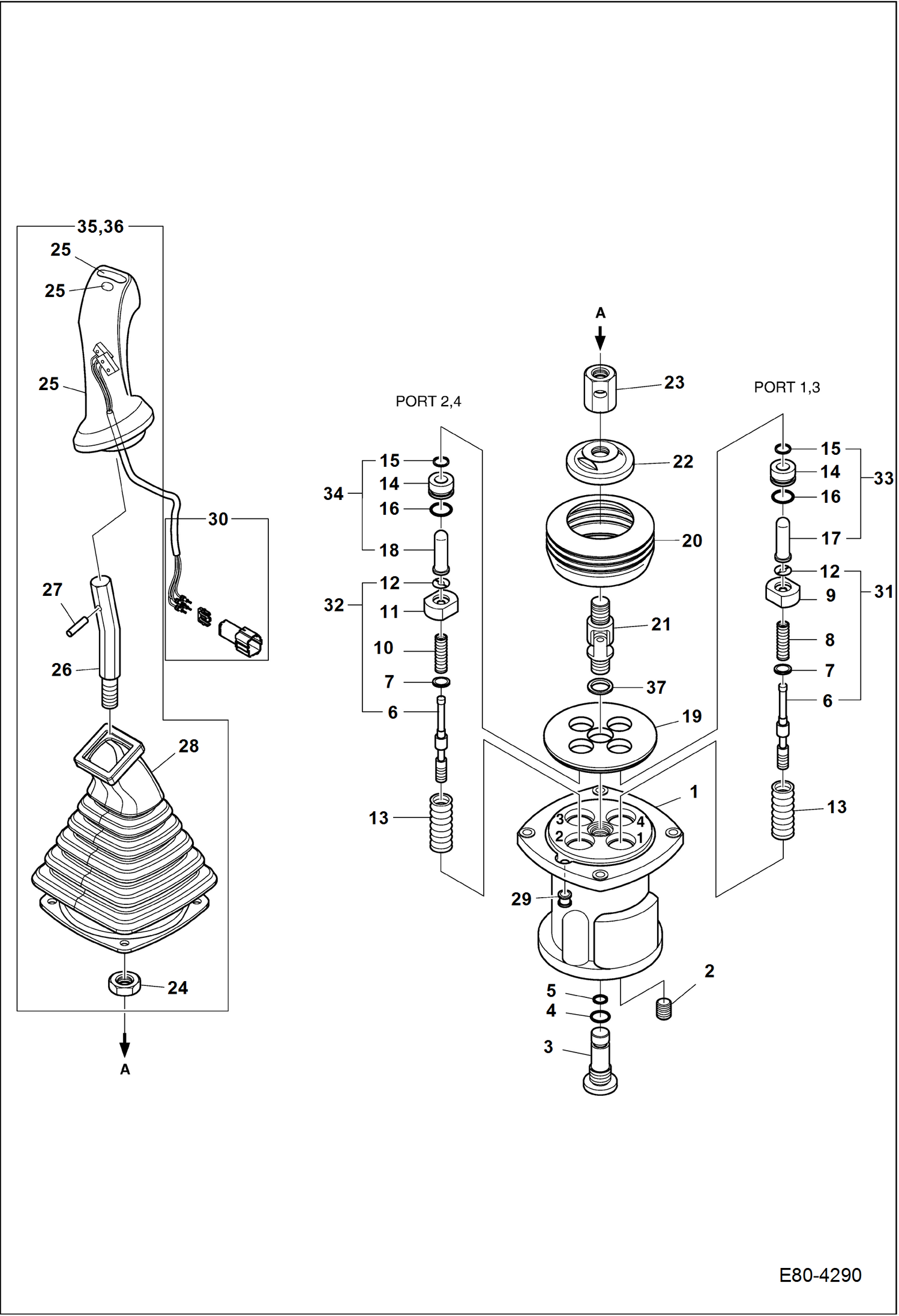

Запчасти Bobcat E80 JOYSTICK VALVES HYDRAULIC SYSTEM

1

7006447

JOYSTICK LH LH - Ref. 2-36

1

7006448

JOYSTICK RH RH - Ref. 2-36

1

HOUSING NLA - Order complete assy

2

7004671

PLUG PT 1/8

3

7006852

PLUG PF3/8

4

7007909

O-RING

5

7007931

ORING

6

SPOOL NLA - Order Ref. 31 kit for port 1 & 3 and Ref. 32 kit for ports 2 & 4

7

7003716

SHIM

8

SPRING NLA - Order Ref. 31

9

7003837

SEAT SPRING

10

SPRING NLA - Order Ref. 32

11

SEAT, SPRING NLA - Order Ref. 32

12

7003927

STOP

13

7003743

SPRING

14

PLUG NLA - Order Ref. 33 kit for port 1 & 3 and Ref. 34 kit for ports 2 & 4

15

7006819

SEAL ROD

16

7007913

O-RING

17

7003840

ROD PUSH

18

ROD, PUSH NLA - Order Ref. 34

19

7003819

PLATE

20

7003750

BOOT

21

7003749

COUPLER JOINT ASSY

22

7003822

PLATE SWASH

23

7003733

NUT HEX

24

7007800

NUT M14

25

7006820

HANDLE ASSY LH

25

7006821

HANDLE ASSY RH

25

7003751

CAP ROUND

25

7003752

CAP PEANUT

26

7007417

BAR HANDLE

27

7007859

PIN SPRING

28

7006822

BOOT

29

7003711

BUSHING

30

7006823

CONNECTOR ASSY

31

7007454

KIT SPOOL PORT 1 & 3 for ports 1 & 3

32

7007455

KIT SPOOL PORT 2 & 4 for ports 2 & 4

33

7007418

PLUG KIT PORT 1 & 3 for ports 1 & 3

34

7007419

PLUG KIT PORT 2 & 4 for ports 2 & 4

35

7007420

HANDLE KIT LH

36

7007421

HANDLE KIT RH
