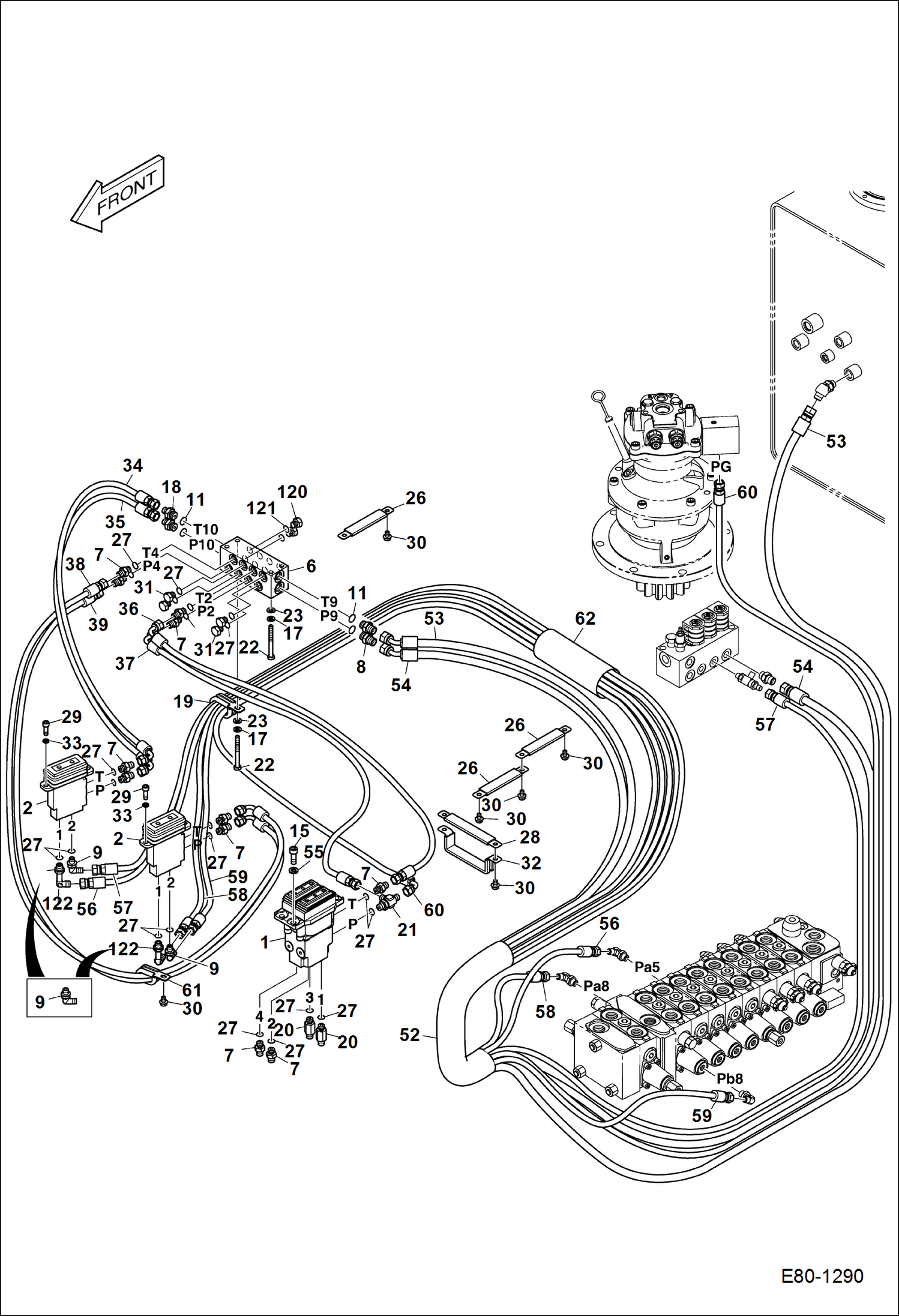

Запчасти Bobcat E80 HYDRAULIC PILOT CIRCUITRY (Travel & Pedal Valves) HYDRAULIC SYSTEM

1

7008233

VALVE, PEDAL See Illustration PEDAL VALVE/ E80-4310

2

7006576

VALVE, PEDAL See Illustration PEDAL VALVE/ E80-4400

6

7005742

BLOCK

7

7004683

ADAPTER

8

7004696

ADAPTER

9

7004713

ELBOW

11

7007909

O-RING

15

7007748

BOLT SOCKET M10X1.5X30

17

7007834

WASHER SPRING

18

7004694

ADAPTER

19

7003903

CLIP

20

7004702

ADAPTER

21

7004738

TEE

22

7007667

BOLT

23

7007816

WASHER

26

7006571

CLIP

27

7007906

O-RING

28

7006570

CLIP

29

7007737

BOLT

30

7005629

BOLT

31

7004732

PLUG

32

7006608

CLIP

33

7007842

WASHER SPRING

34

7005412

HOSE

35

7005412

HOSE

36

7005412

HOSE

37

7005412

HOSE

38

7005295

HOSE

39

7005330

HOSE PF1/4-600L

52

7006572

GUARD PROTECTOR

53

7005269

HOSE

54

7005285

HOSE

55

7007835

WASHER SPRING

56

7005486

HOSE PF1/4-2130L

57

7005516

HOSE PF1/4-3330L

58

7005480

HOSE PF1/4-1950L

59

7005506

HOSE PF1/4-1800L

60

7005327

HOSE PF1/4-3530L

61

7003902

CLIP

62

7006523

GUARD PROTECTOR

121

7004732

PLUG

122

7007906

O-RING
