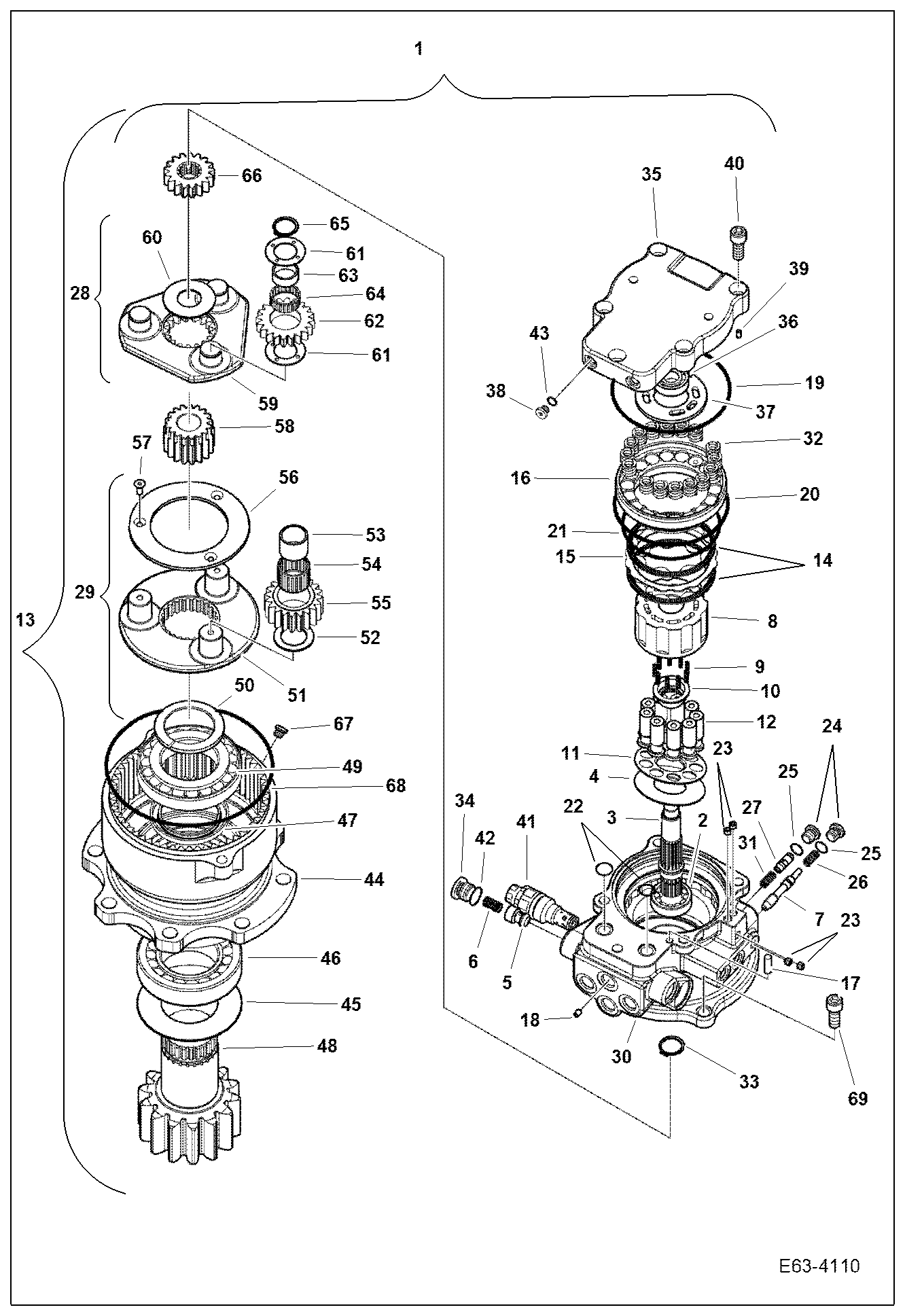

Запчасти Bobcat E63 SLEW MOTOR HYDRAULIC SYSTEM

1

7029748

MOTOR, SLEW

2

7007234

BEARING ROLLER

3

7007223

SHAFT DRIVE

4

7029932

PLATE

5

7007218

ROLLER PLUNGER

6

7007219

SPRING CHECK

7

7007226

SPOOL

8

7029665

BLOCK, CYL

9

7007201

SPRING CYLINDER

10

7029693

BUSHING

11

7007238

PLATE RETAINER

12

7029920

PISTON, ASSY

13

7029768

KIT, GEAR & SHAFT

14

7007215

PLATE FRICTION

15

7007216

PLATE SEPARATION

16

7029922

PISTON, BRAKE

17

7029903

PIN

18

7007200

ORIFICE

19

7004657

O-RING

20

7004656

O-RING

21

7004655

O-RING

22

7007910

O-RING

23

7029940

PLUG

24

7029942

PLUG

25

7007906

O-RING

26

7007229

SPRING

27

7007596

DIAPHRAGM PLUNGER ASSY

28

7029706

KIT, GEAR SET

29

7029707

KIT, GEAR SET

30

7029708

CASE

31

7007240

SPRING

32

7007225

SPRING BRAKE

33

7007873

RING SNAP

34

7007199

PLUG

35

7029710

COVER, VALVE

36

7003701

BEARING BALL

37

7029935

PLATE, VALVE

38

7029940

PLUG

39

7007858

PIN SPRING

40

7007760

BOLT SOCKET

41

7030034

VALVE, RELIEF

42

7007910

O-RING

43

7007903

O-RING

44

7029709

HOUSING, MOTOR

45

7007202

COVER BEARING

46

7007451

BEARING TAPER ROLLER

47

7007231

SEAL OIL

48

7029987

GEAR, SHAFT

49

7007452

BEARING TAPER ROLLER

50

7007203

COLLAR HALF

51

CARRIER NO2 NLA - Order Ref. 1

52

7007220

WASHER NO.3 THRUST

53

7029952

RING, INNER

54

7007232

BEARING NEEDLE

55

7007209

GEAR NO.2 PLANET

56

7007213

PLATE THRUST

57

7007326

BOLT

58

7007211

GEAR NO.2 SUN

59

CARRIER NO1. NLA - Order Ref. 1

60

7007212

WASHER NO.1 THRUST

61

7007325

WASHER THRUST

62

7007208

GEAR NO.1 PLANET

63

7024794

RING, INNER

64

7007233

BEARING NEEDLE

65

7007873

RING SNAP

66

7007210

GEAR NO.1 SUN

67

7029940

PLUG

68

7004661

O-RING

69

7007760

BOLT SOCKET
