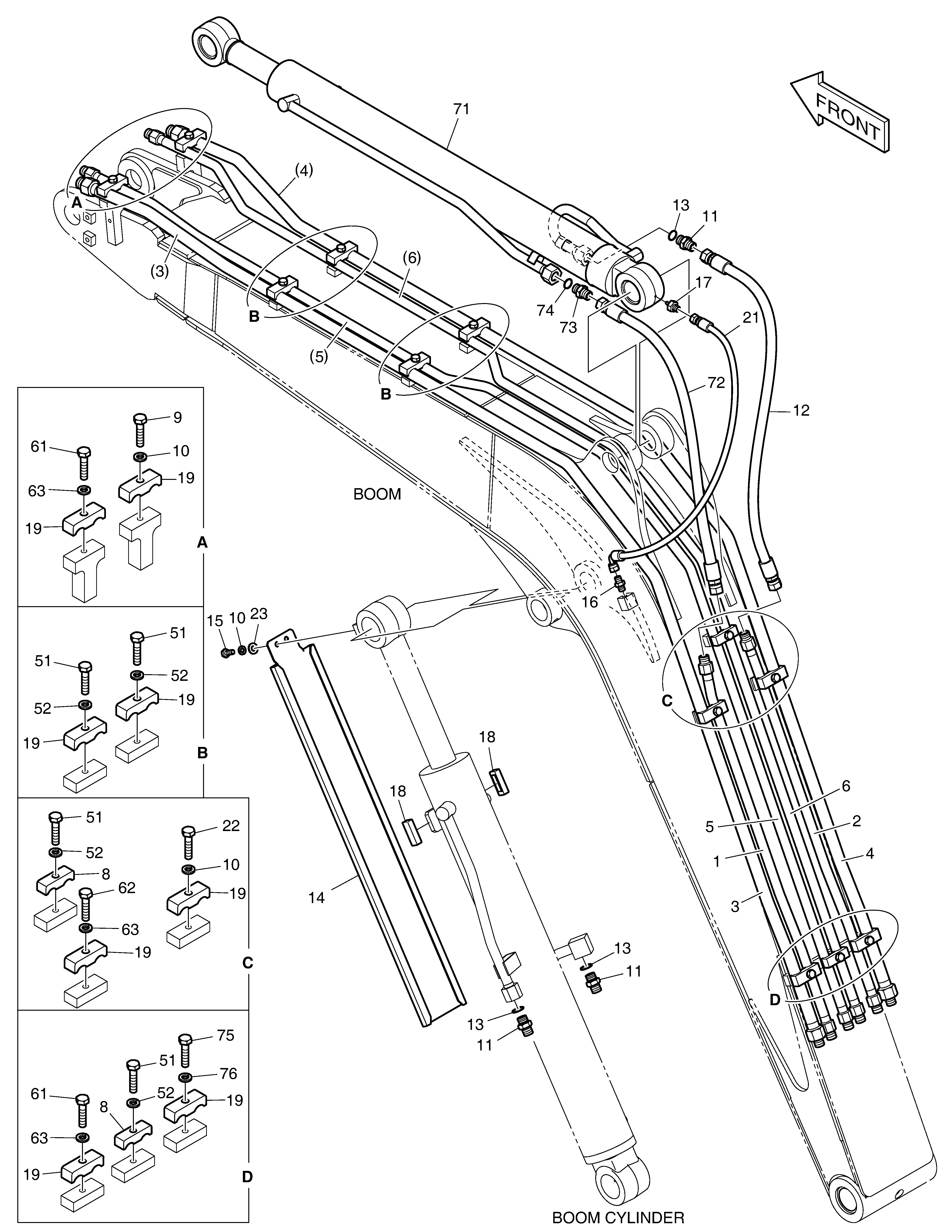

Запчасти Bobcat E63 HYDRAULIC CIRCUITRY Boom & Arm Cylinders) HYDRAULIC SYSTEM

1

7029906

TUBELINE, HYD

2

7029907

TUBELINE, HYD

3

7029908

TUBELINE, HYD

4

7029909

TUBELINE, HYD

5

7029910

TUBELINE, HYD

6

7029911

TUBELINE, HYD

8

7013257

CLAMP,PIPE

9

7007672

BOLT

10

7007835

WASHER SPRING

11

7004699

ADAPTER

12

7029824

HOSE, HYD

13

7007911

O-RING

14

7029733

SHIELD, CYL

15

7007628

BOLT

16

7004667

ADAPTER

17

7004669

ADAPTER

18

7023175

PAD

19

7021812

CLAMP, TUBELINE

21

7005184

HOSE PF1/4-530L

22

7007670

BOLT

51

7007672

BOLT

52

7007835

WASHER SPRING

61

7007672

BOLT

62

7007670

BOLT

63

7007835

WASHER SPRING

71

7029737

CYLINDER, ARM

72

7029824

HOSE, HYD

73

7004699

ADAPTER

74

7007911

O-RING

75

7007672

BOLT

76

7007835

WASHER SPRING
