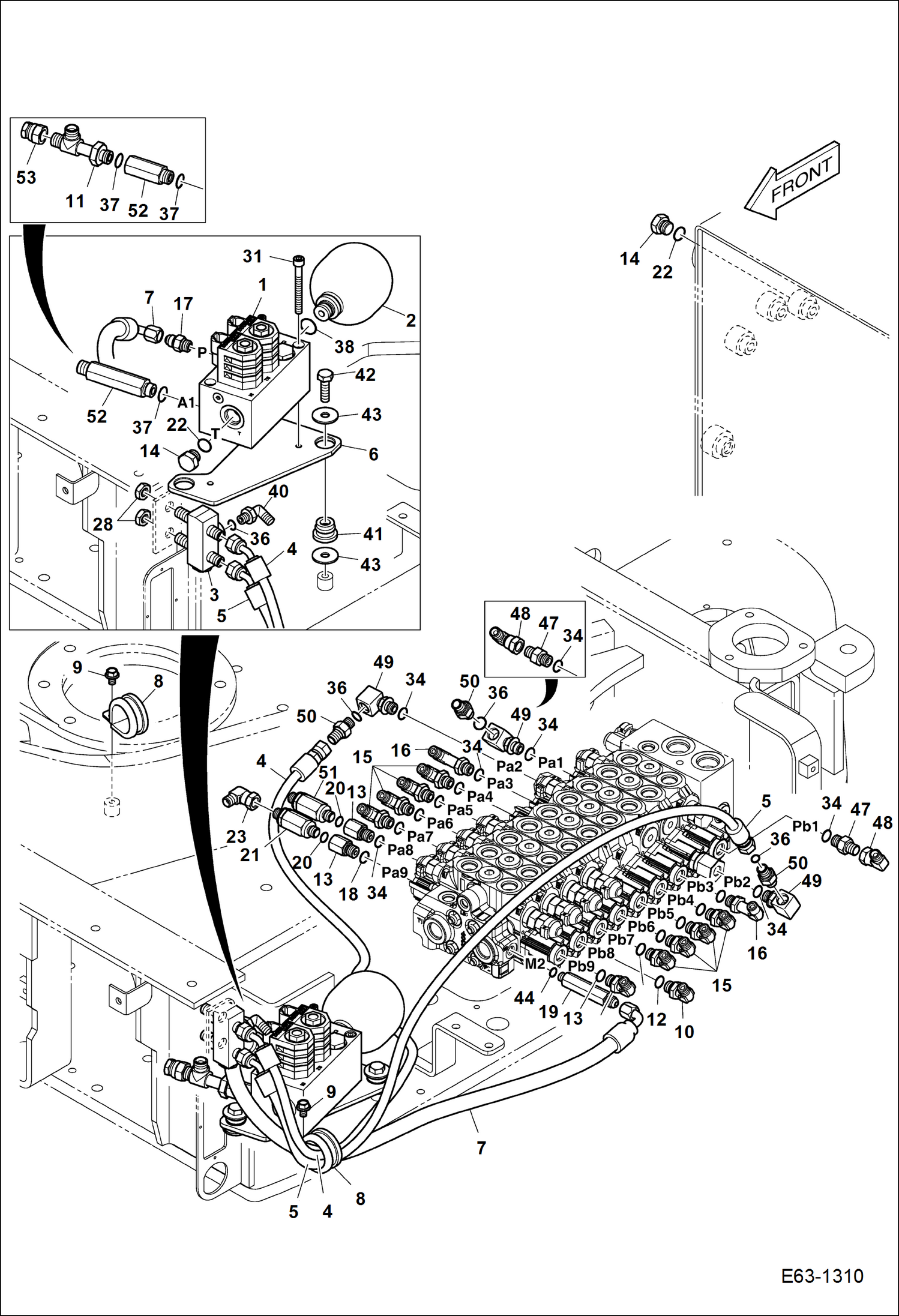

Запчасти Bobcat E63 HYDRAULIC CIRCUITRY (Control Valve) HYDRAULIC SYSTEM

1

7030031

VALVE, PILOT

2

7004876

ACCUMULATOR

3

7004978

VALVE SHUTTLE

4

7029787

HOSE

5

7029788

HOSE

6

7029925

PLATE

7

7029856

HOSE, HYD

8

7003898

CLIP

9

7005629

BOLT

10

7005558

ELBOW

11

7030013

TEE

12

7007961

O-RING

13

7029641

ADAPTER

14

7004734

PLUG

15

7005558

ELBOW

16

7029758

FITTING, ELBOW

17

7028680

ADAPTER, FILTER

18

7007961

O-RING

19

7029630

ADAPTER

20

7007906

O-RING

21

7030035

VALVE

22

7007909

O-RING

23

ELBOW

28

7003878

NUT

31

7007743

BOLT

34

7007961

O-RING

36

7007906

O-RING

37

7007909

O-RING

38

7007911

O-RING

40

7004713

ELBOW

41

7021821

BUSHING, SPACER

42

7007631

BOLT M10X1.5X35

43

7021845

WASHER

44

7010493

O-RING

47

7028678

ADAPTER

48

ELBOW

49

7029008

FITTING

50

7028677

ADAPTER

51

7030039

VALVE

52

7029641

ADAPTER

53

7029631

ADAPTER

54

7004765

PLUG

91

7004734

PLUG

92

7003898

CLIP

93

7005629

BOLT

94

7007909

O-RING
