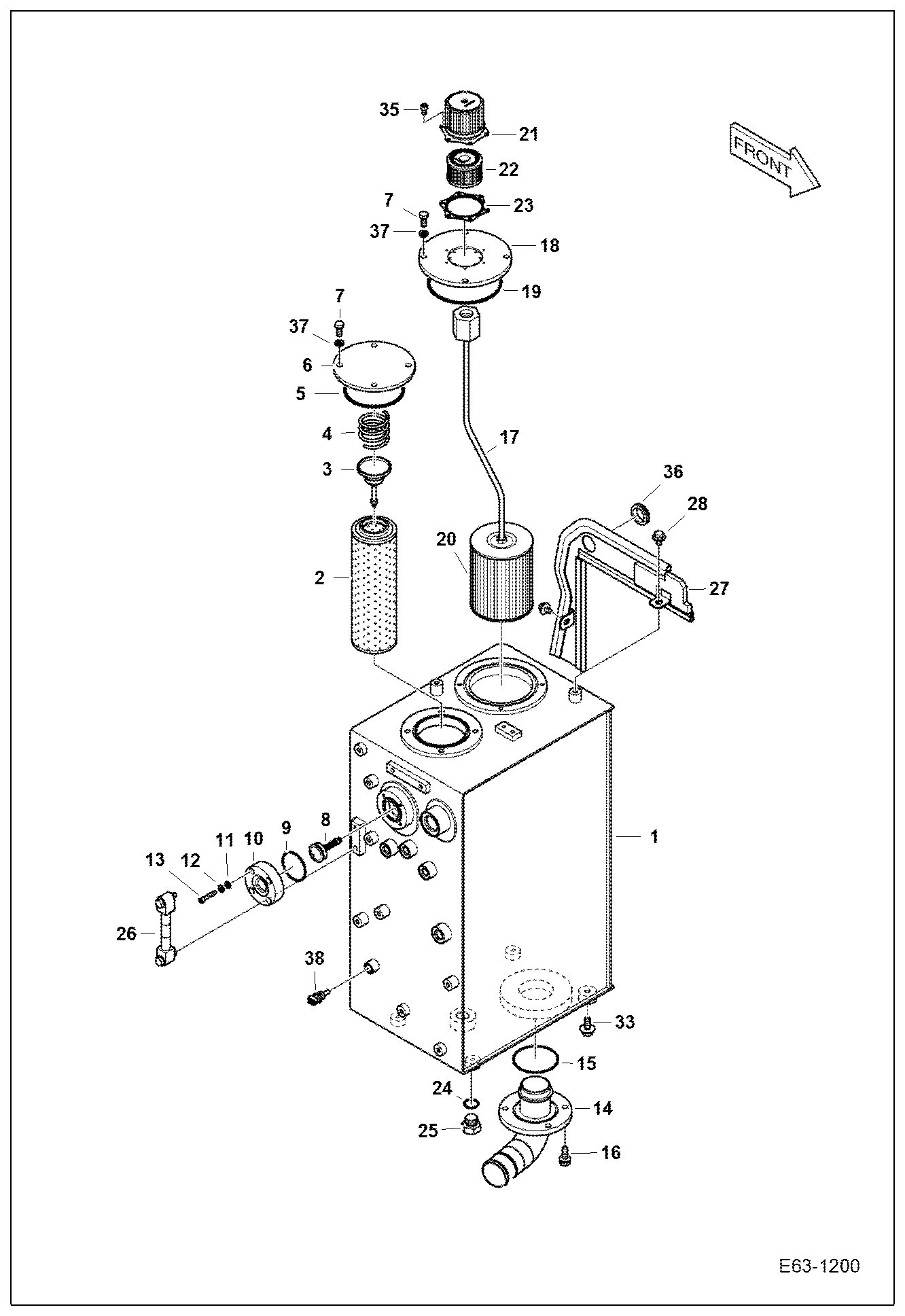

Запчасти Bobcat E63 HYDRAULIC CIRCUITRY (Oil Tank) HYDRAULIC SYSTEM

1

7030009

TANK, OIL

2

7004883

FILTER RETURN

3

7004861

VALVE BYPASS

4

7004594

SPRING

5

7007949

O-RING

6

7006060

COVER TANK

7

7007627

BOLT M10X1.5X22

8

7004871

VALVE BYPASS

9

7007936

O-RING

10

7006061

COVER TANK

11

7007814

WASHER

12

7007833

WASHER, SPRING

13

7007728

BOLT SOCKET

14

7006063

TUBELINE SUCTION

15

7007940

ORING

16

7005140

BOLT SET

17

7029761

FILTER, OIL HYD

18

7006066

COVER TANK

19

7007955

O-RING

20

7006810

FILTER STRAINER SUCTION

21

7006807

FILTER BREATHER AIR

22

7006946

GASKET

23

7006806

FILTER, AIR BREATHER

24

7007916

O-RING

25

7005575

PLUG

26

7003868

GAUGE LEVEL

27

7006602

COVER BAFFLE

28

7005129

BOLT, SET

33

7004557

BOLT SET

35

7007719

BOLT

36

7004609

BUSHING RUBBER

37

7007835

WASHER SPRING

38

7029387

SENSOR, HYD OIL TEMP
