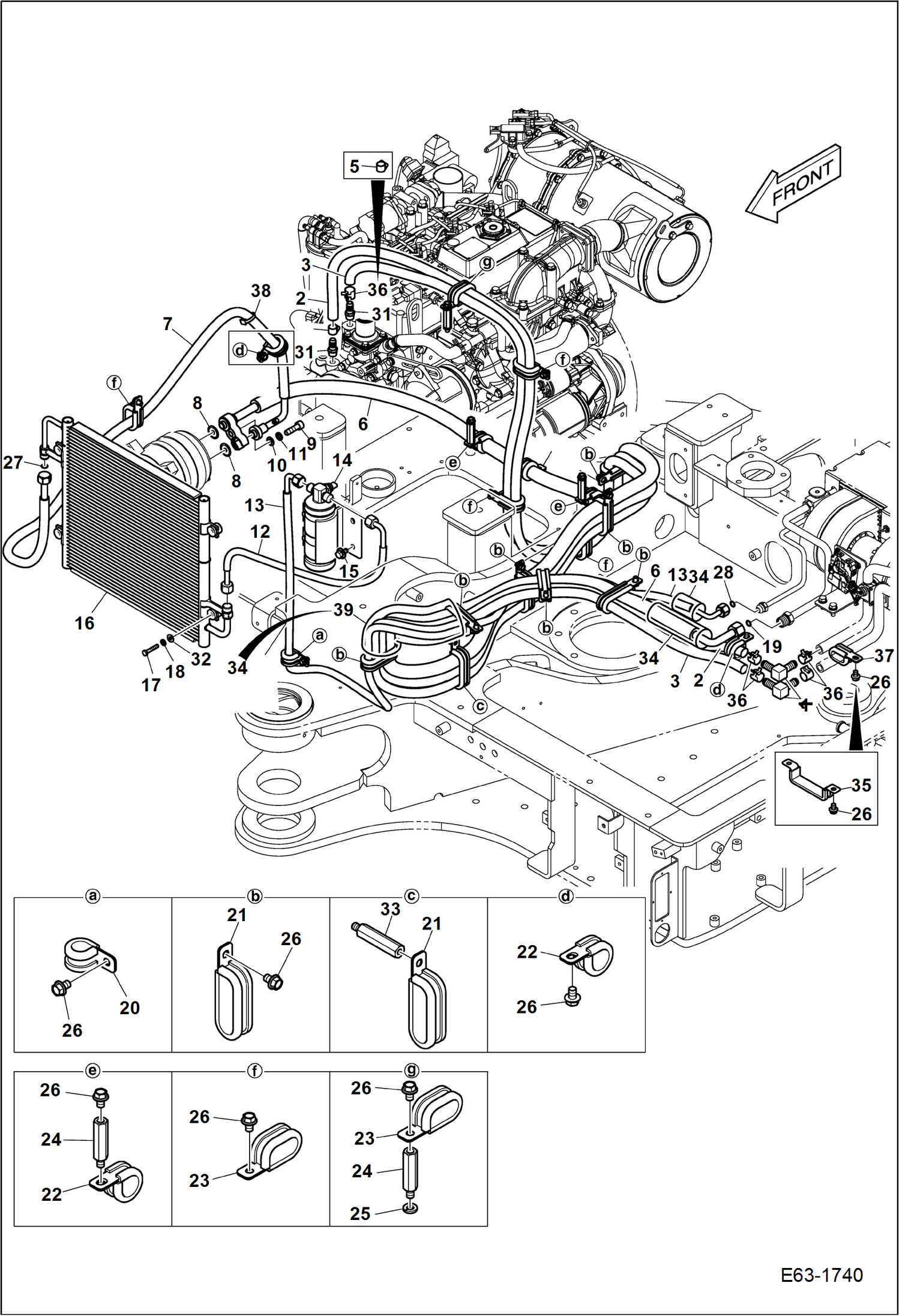

Запчасти Bobcat E63 AIR CONDITIONING (Chassis) MAIN FRAME

1

7029212

FITTING, ELBOW

2

7029891

HOSE, RUBBER

3

7029892

HOSE, RUBBER

5

7007975

CLAMP

6

7006467

HOSE SUCTION

7

7029862

HOSE, A/C ASSY

8

7004664

WASHER, SEAL

9

7007750

BOLT, SOCKET M10X1.5X35

10

7007825

WASHER PLAIN

11

7007843

WASHER, SPRING

12

7029890

HOSE, A/C ASSY

13

7029883

HOSE, A/C ASSY

14

7004841

RECEIVER, DRIER

15

7005129

BOLT, SET

16

7028921

CONDENSER, A/C

17

7007651

BOLT

18

7007833

WASHER, SPRING

19

7006239

O-RING

20

7003895

CLIP

21

7003907

CLIP

22

7003896

CLIP

23

7003905

CLIP

24

7004554

BOLT STUD

25

7007834

WASHER SPRING

26

7005629

BOLT

27

7029902

O-RING

28

7006238

O-RING

31

7029239

FITTING

32

7029488

WASHER

33

7029669

BOLT

34

7029316

HOSE, WATER

35

7029715

CLIP

36

7007974

CLAMP
