Запчасти Bobcat E63 CAMSHAFT POWER UNIT

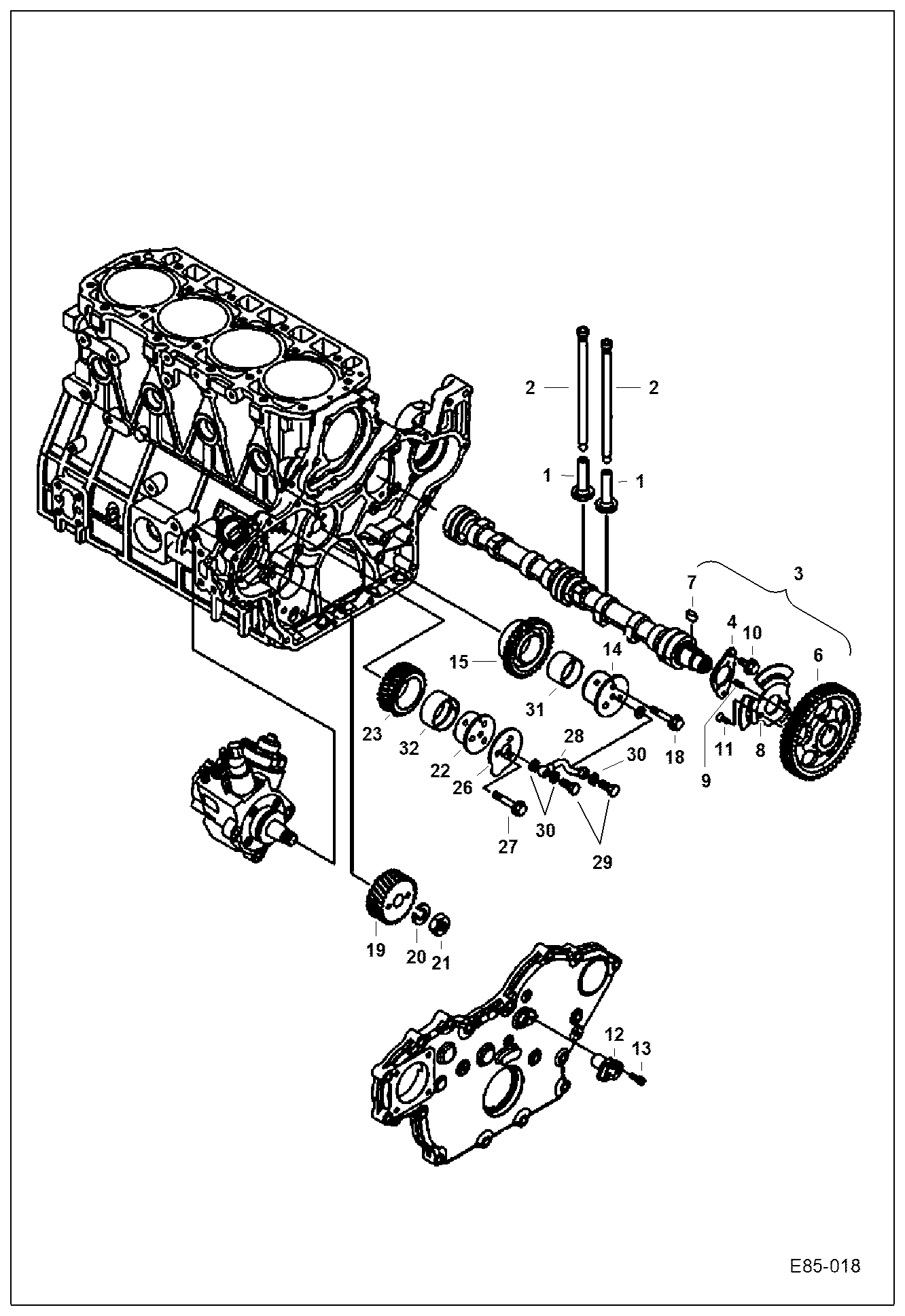

Схема запчастей Bobcat E63 - CAMSHAFT POWER UNIT

Артикул

Название

Примечание

Количество

1

7004419

TAPPET

2

7029945

PUSHROD

3

7028863

CAMSHAFT ASSY

4

7004214

BEARING THRUST

6

7029055

GEAR, CAMSHAFT

6

7005052

SEAL OIL

7

7004003

KEY

8

7029293

PLATE, CAM

9

7007855

PIN SELF LOCKING

10

7004086

BOLT PLATED M8X16

11

7029351

SCREW

12

7029386

SENSOR, GEAR REV

13

7028702

BOLT

14

7029392

HUB

15

7029053

GEAR, IDLER

18

7029507

BOLT

19

7029057

GEAR, PUMP INJ

20

7006841

WASHER SPRING

21

7007053

NUT LOCK M18

22

7029393

HUB

23

7029052

GEAR, IDLER

26

7029295

PLATE

27

7004080

BOLT PLATED M8X45

28

7029262

TUBE

29

7028718

BOLT

30

7004019

WASHER SEAL

31

7004371

BUSHING IDLE GEAR

32

7028774

BUSHING IDLE GEAR

Выбрано товаров: 28
