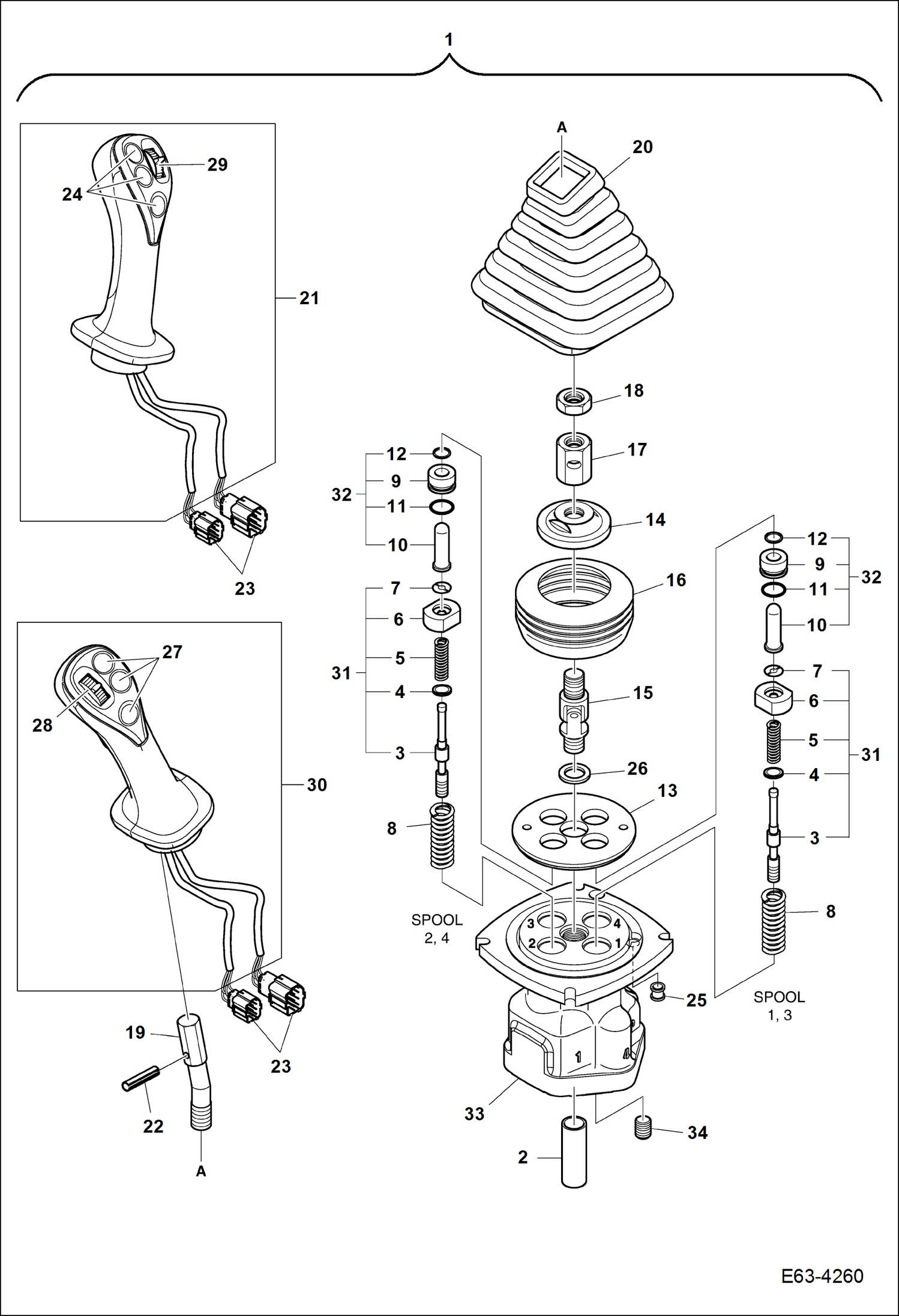

Запчасти Bobcat E62 JOYSTICKS HYDRAULIC SYSTEM

1

7028847

VALVE, JOYSTICK (L.H)

1

7028848

VALVE, JOYSTICK (R.H)

2

7028772

BUSHING

3

SPOOL NLA -Order Ref 31

4

SHIM NLA -Order Ref 31

5

SPRING NLA -Order Ref 31

6

7003837

SEAT SPRING

7

7003927

STOP

8

7029413

SPRING

9

PLUG NLA -Order Ref 32

10

7003840

ROD PUSH

11

7007912

O-RING

12

7006819

SEAL ROD

13

7029927

PLATE

14

7029303

PLATE

15

7028816

JOINT, ASSY

16

7028733

BOOT, RUBBER

17

7003733

NUT HEX

18

7029242

NUT

19

7029391

SHAFT

20

7028731

BOOT, RUBBER

21

7029217

JOYSTICK, LH

22

7007859

PIN SPRING

23

7028923

CONNECTER ASSY

24

7029513

SWITCH, PUSH-BUTTON

25

7003711

BUSHING

26

7030043

WASHER

27

7029513

SWITCH, PUSH-BUTTON

28

7029452

SWITCH, PRESS

29

7029452

SWITCH, PRESS

30

7029218

JOYSTICK, RH

31

7029408

KIT, SPOOL W/Ref 3-7

32

7029311

KIT, PLUG W/Ref 9-12, 15-16

33

CASE NLA -Order Ref 1
