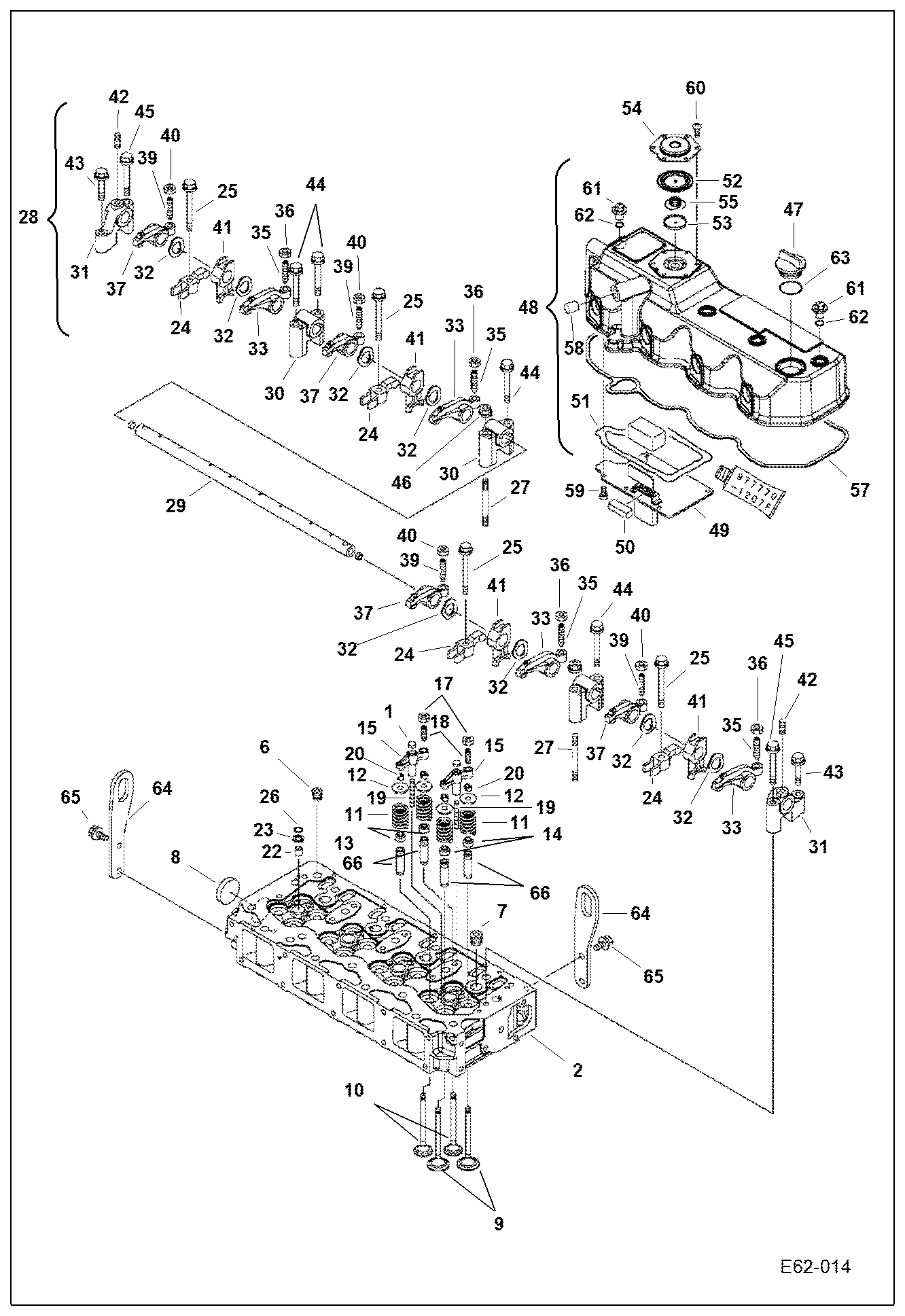

Запчасти Bobcat E62 CYLINDER HEAD & BONNET POWER UNIT

1

7005093

SEAT A VALVE BRIDGE

2

7030092

HEAD, CYL ENG

6

7004673

PLUG

7

7004674

PLUG PT3/8

8

7004293

PLUG

9

7005056

VALVE INTAKE

10

7005057

VALVE EXHAUST

11

7005058

SPRING VALVE

12

7005055

RETAINER SPRING

13

7005087

SEAL VALVE STEM

14

7004276

SEAL VALVE STEM

15

7004406

VALVE BRIDGE ASSY

17

7004146

NUT M8

18

7004140

SCREW VALVE BRIDGE

19

7004203

GUIDE VALVE BRIDGE

20

7004320

PIN COTTER ASSY

22

7004210

GUARD NOZZLE

23

7004407

SEAT NOZZLE

24

7004328

RETAINER VALVE

25

7004142

BOLT FLANGE RETAINER

26

7007907

O-RING

27

7005094

BOLT M8X80

28

7005062

SHAFT ARM ROCKER ASSY

29

7005059

SHAFT ROCKER ARM

30

7005060

SUPPORT A

31

7005061

SUPPORT B

32

7005095

WASHER

33

7005063

ARM ASSY ROCKER

35

7004110

SCREW VALVE

36

7004146

NUT M8

37

7005064

ARM ASSY ROCKER

39

7004110

SCREW VALVE

40

7004146

NUT M8

41

7004448

SUPPORT

42

7004141

STUD M8X22

43

7004089

BOLT PLATED M8X40

44

7004098

BOLT PLATED M8X60

45

7004098

BOLT PLATED M8X60

46

7004160

NUT

47

7005107

CAP LUB OIL

48

7030093

HEAD, CYL ENG ASSY

49

7007048

PLATE BAFFLE

50

7007049

DIAPHRAGM BAFFLE

51

7004441

DIAPHRAGM BAFFLE

52

7005096

DIAPHRAGM BREATHER

53

7005097

PLATE CENTER

54

7005098

PLATE BREATHER

55

7005099

SPRING DIAPHRAGM

57

7005088

GASKET CYL HEAD COVER

58

7005100

PLUG

59

7004105

SCREW TAPPING

60

7004105

SCREW TAPPING

61

7004204

HANDLE KNOB

62

7007907

O-RING

63

7007921

O-RING

64

7007382

LIFTER ENGINE

65

7004086

BOLT PLATED M8X16

66

7005065

GUIDE VALVE
