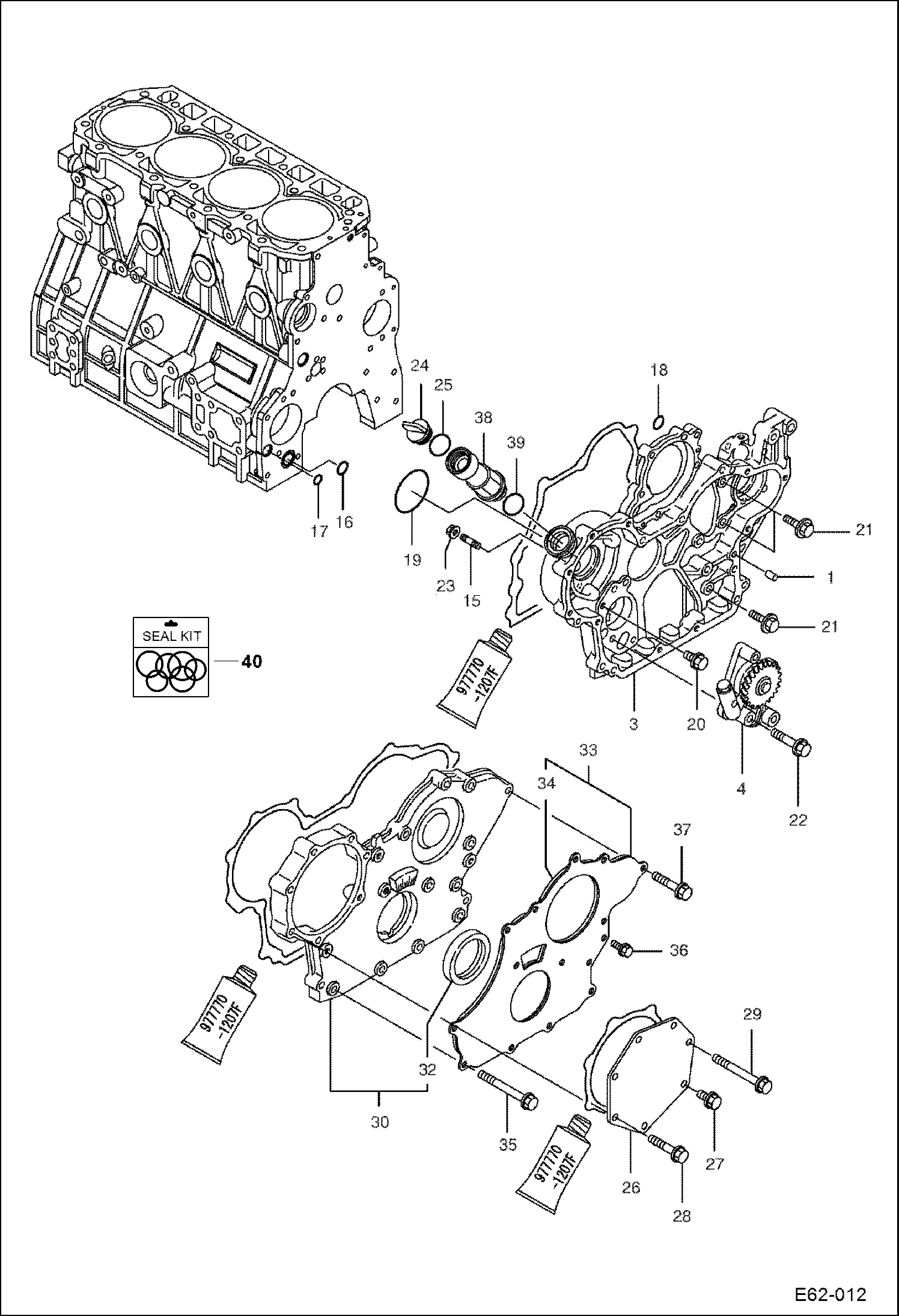

Запчасти Bobcat E62 GEAR HOUSING POWER UNIT

1

7004404

HOUSING GEAR

3

7004274

SEAL OIL

4

7007851

PIN PARALLEL

5

7004422

COVER

7

7007163

HOUSING GEAR

8

7005075

PUMP OIL ASSY

19

7004104

BOLT STUD

20

7007912

O-RING

21

7007909

O-RING

22

7007901

O-RING

23

7004275

SEAL

24

7004086

BOLT PLATED M8X16

25

7004087

BOLT PLATED M8X20

26

7004087

BOLT PLATED M8X20

27

7004089

BOLT PLATED M8X40

28

7004080

BOLT PLATED M8X45

29

7004080

BOLT PLATED M8X45

30

7028719

BOLT

31

7007186

BOLT M8X75 PLATED

32

7004161

NUT

33

7005107

CAP LUB OIL

34

7007921

O-RING

35

7005109

TUBELINE

36

7007921

O-RING

37

7004332

COVER ASSY

38

7004212

FOAM

39

7004086

BOLT PLATED M8X16
