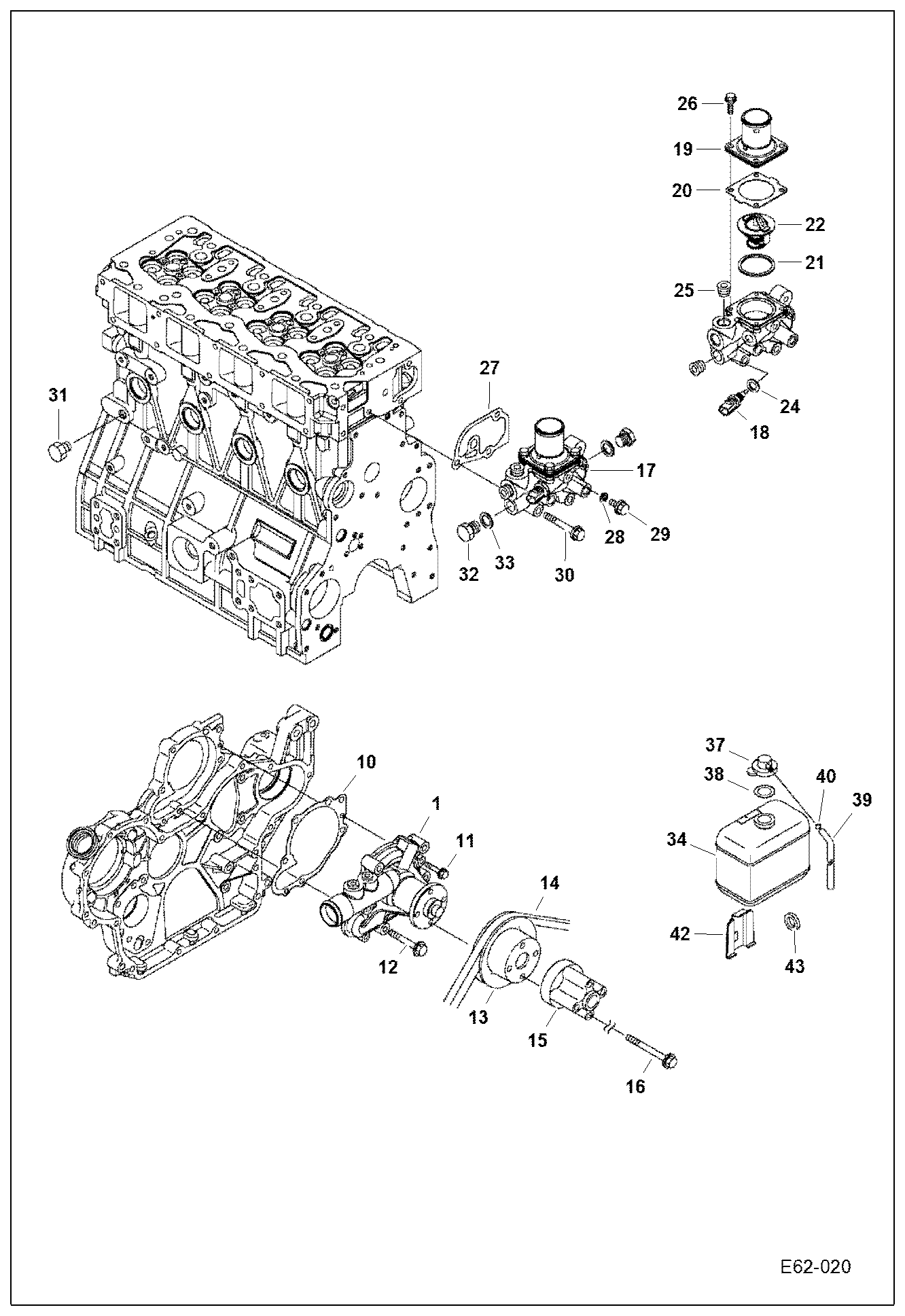

Запчасти Bobcat E62 COOLING WATER SYSTEM POWER UNIT

1

7029318

PUMP, WATER

1

7030107

PUMP, FUEL INJ

10

7004217

GASKET

11

7004078

BOLT M6X30

12

7004096

BOLT PLATED M8X55

13

7030104

PULLEY, WATER PUMP

14

7010300

BELT, FAN

15

7004013

SPACER FAN

16

7004094

BOLT M8X80

17

7030105

COVER, THERMOSTAT

18

7007121

SENDER, TEMP ENG

19

7007050

COVER THERMOSTAT

20

7004218

GASKET THERMOSTAT

21

7005114

GASKET THERMOSTAT

22

7030106

THERMOSTAT

24

7004022

SEAL WASHER

25

7004294

PLUG PT8/3 STEEL

26

7004097

BOLT M6X20

27

7004219

GASKET HOUSING

28

7004216

GASKET ROUND

29

7004093

BOLT M8X12

30

7004098

BOLT PLATED M8X60

31

7004298

PLUG DRAIN

32

7005077

PLUG M16

33

7004215

GASKET

34

7007331

TANK ASSY RESERVE

37

7007378

CAP

38

7007379

GASKET

39

7007380

TUBELINE

40

7007381

CLAMP

42

7007332

BRACKET

43

7003942

GASKET
