Запчасти Bobcat E62 ELECTRICAL (Battery, Washer, Horn) ELECTRICAL SYSTEM

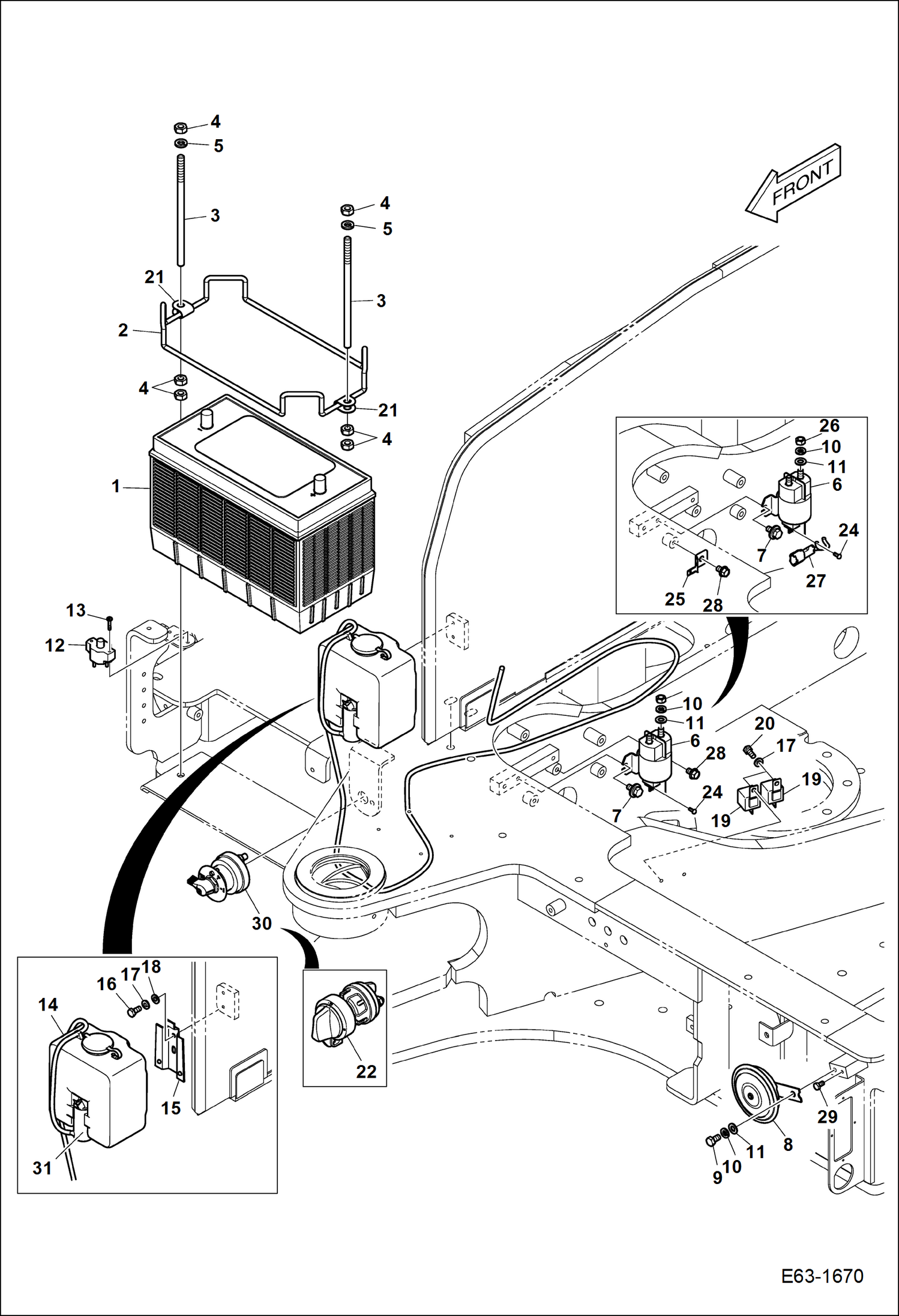

Схема запчастей Bobcat E62 - ELECTRICAL (Battery, Washer, Horn) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

7028690

BATTERY

2

7010546

BRACKET, BATTERY

3

7010547

BOLT

4

7007798

NUT, M1X1.5

5

7007818

WASHER, PLAIN M10

6

7029948

RELAY

7

7005129

BOLT, SET

8

7017381

HORN, HIGH

9

7007615

BOLT

10

7007834

WASHER SPRING

11

7007816

WASHER

12

7004898

BREAKER CIRCUIT

13

7004527

BOLT

14

7004961

TANK WINDOW WASHER

15

7004823

BRACKET

16

7007604

BOLT

17

7007833

WASHER, SPRING

18

7007814

WASHER

19

7015611

RELAY 70A

20

7007606

BOLT

21

7010548

CLIP

22

7029447

SWITCH, DISCONNECT W/Ref. 5

24

7029353

SCREW

25

7004826

BRACKET, HOUSING

26

7007796

NUT

27

7029079

HARNESS, RELAY SWITCH

28

7005629

BOLT

29

7007603

BOLT

Выбрано товаров: 28
