Запчасти Bobcat E62 BLADE CYLINDER (Non Check) HYDRAULIC SYSTEM

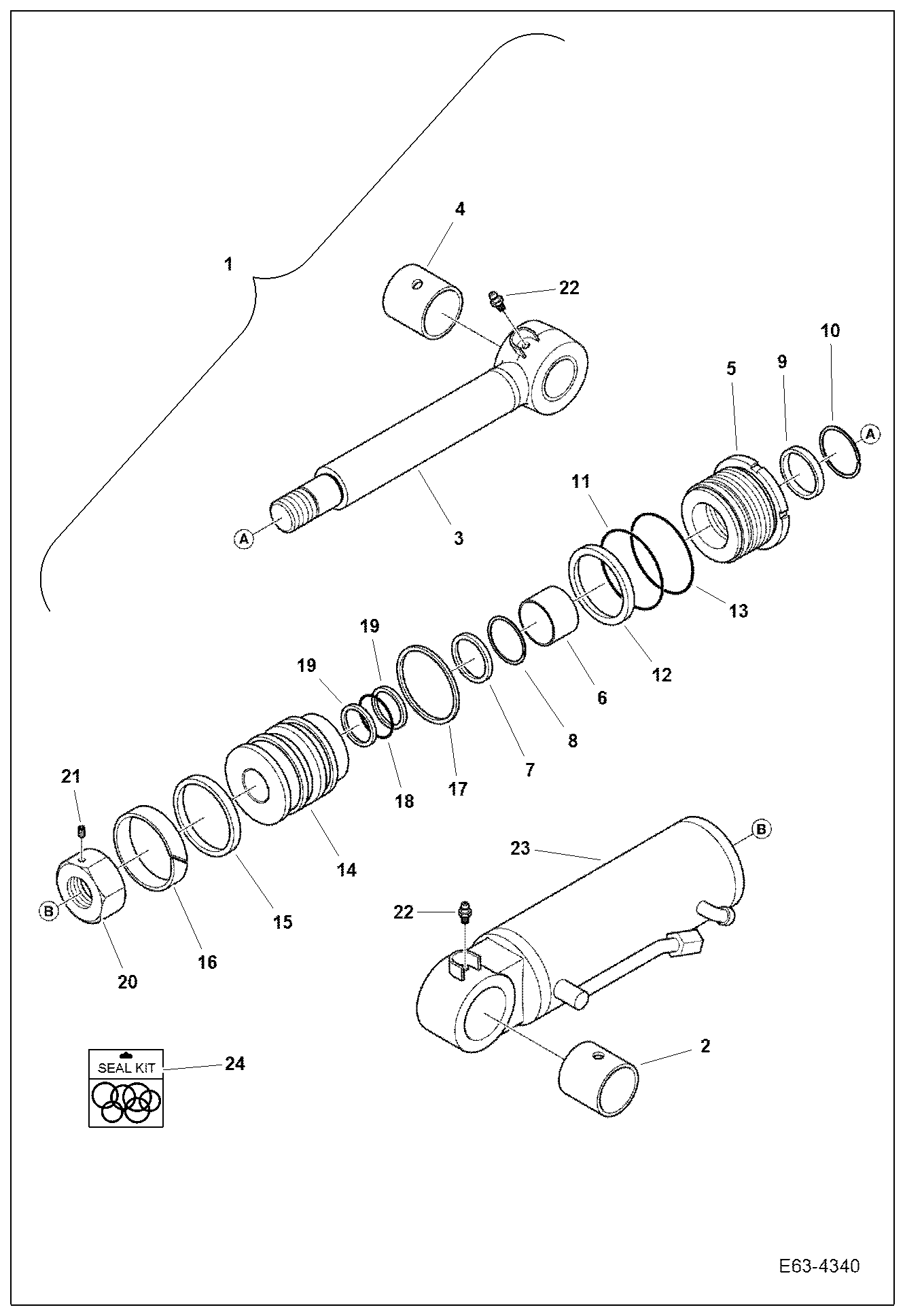

Схема запчастей Bobcat E62 - BLADE CYLINDER (Non Check) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7029741

CYLINDER, DOZER

2

7003707

BUSHING

3

7029964

ROD, CYL

4

7003707

BUSHING

5

7003845

COVER ROD

6

7007333

BUSHING DU

7

7003761

SEAL

8

7003769

RING BACK-UP

9

7003865

WIPER DUST

10

7003864

RING RETAINING

11

7007947

O-RING

12

7003762

RING BACK-UP

13

7007950

O-RING

14

7029919

PISTON

15

7003944

SEAL SLIPPER

16

7003780

RING WEAR

17

7003795

RING DUST

18

7029901

O-RING

19

7029951

RING, BACK UP

20

7022907

NUT

21

7022908

SCREW

22

7007893

FITTING GREASE

23

7007441

TUBELINE ASSY

24

7029977

KIT, SEAL W/Ref 7-9, 11-13, 15-19

Выбрано товаров: 24
