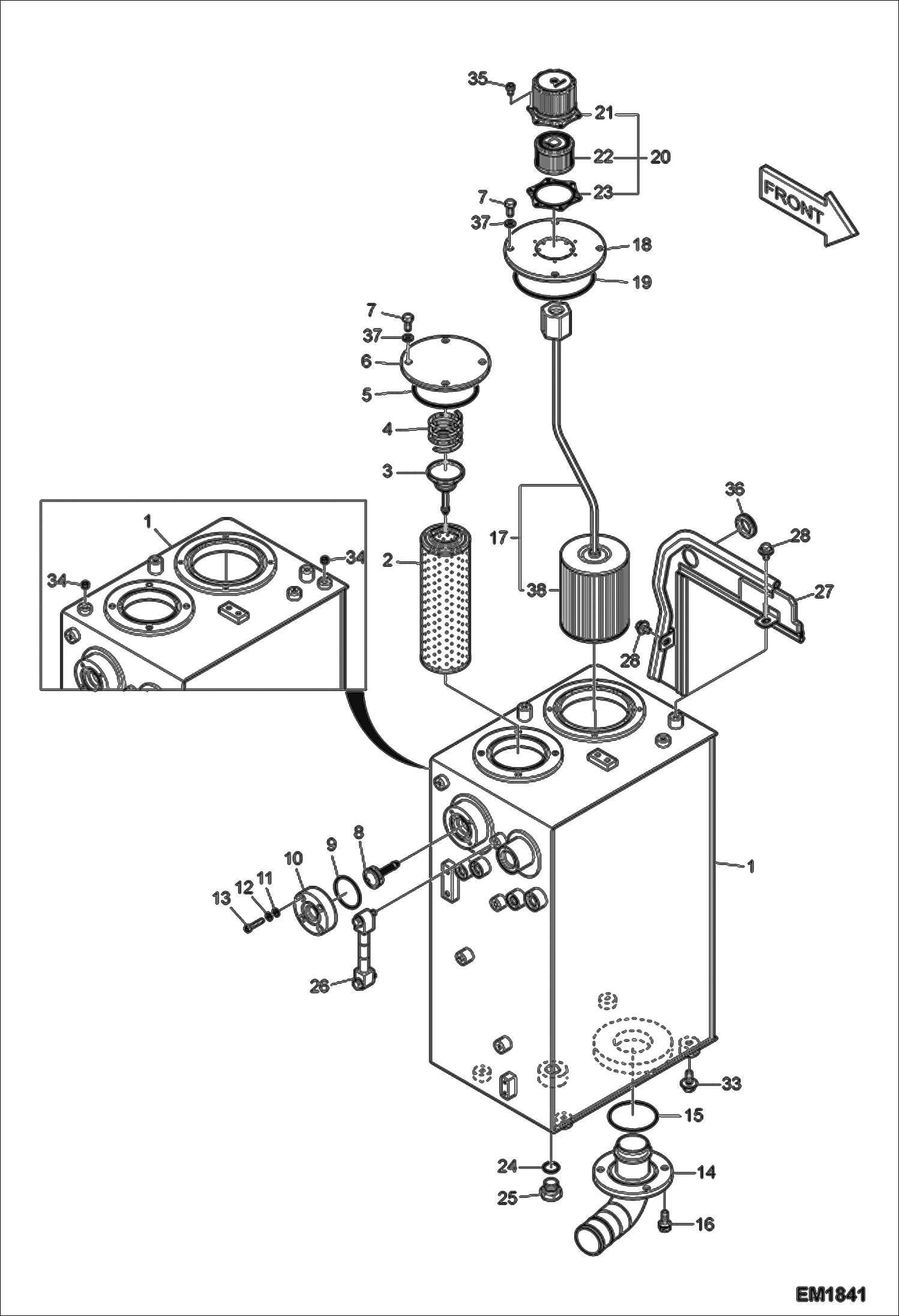

Запчасти Bobcat E60 HYDRAULIC CIRCUITRY (Oil Tank) HYDRAULIC SYSTEM

1

7012242

TANK,OIL Was 7008199 - A

2

7004883

FILTER RETURN

3

7004861

VALVE BYPASS

4

7004594

SPRING

5

7007949

O-RING

6

7006060

COVER TANK

7

7007627

BOLT M10X1.5X22

8

7004871

VALVE BYPASS

9

7007936

O-RING

10

7006061

COVER TANK

11

7007814

WASHER

12

7007833

WASHER, SPRING

13

7007728

BOLT SOCKET

14

7006063

TUBELINE SUCTION

15

7007941

O-RING Was 7007940 - B

16

7005140

BOLT SET

17

7008200

FILTER, SUCTION W/Ref. 38

18

7006066

COVER TANK

19

7007955

O-RING

20

7006807

FILTER BREATHER AIR W/Ref. 21-23

21

CAP NSS - Order Ref. 20

22

7006806

FILTER, AIR BREATHER Was 7006808 - A

23

7006946

GASKET

24

7007916

O-RING

25

7005575

PLUG

26

7003868

GAUGE LEVEL

27

7006602

COVER BAFFLE

28

7005129

BOLT, SET

33

7004557

BOLT SET

34

7004673

PLUG use W/Ref. 7008199 tank

35

7007719

BOLT

36

7004609

BUSHING RUBBER

37

7007835

WASHER SPRING

38

7006810

FILTER STRAINER SUCTION
