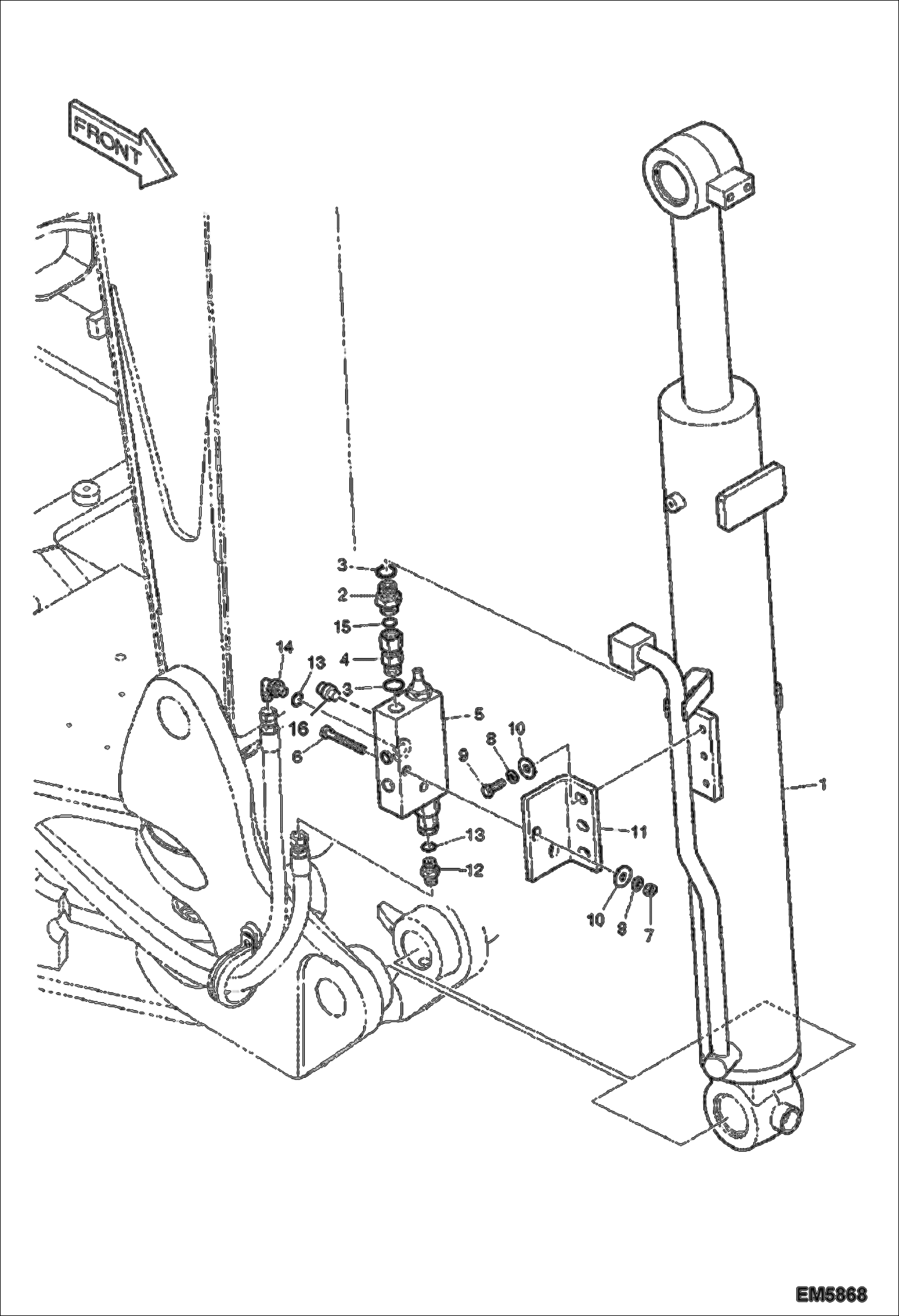

Запчасти Bobcat E60 HYDRAULIC CIRCUITRY (Boom Load Holding Valve) HYDRAULIC SYSTEM

1

CYLINDER, BOOM LOCK V/V See Illustration BOOM CYLINDER/ EM1834 NLA Was 7005973 - A

1

7012223

CYLINDER,BOOM(LOCK V/V) See Illustration BOOM CYLINDER/ EM1834

2

7004773

ADAPTER

3

7007911

O-RING

4

7005551

ADAPTER

5

7004987

VALVE LOCK

6

7007663

BOLT

7

7007796

NUT

8

7007834

WASHER SPRING

9

7007620

BOLT

10

7004470

WASHER PLAIN

11

7003969

BRACKET

12

7004683

ADAPTER

13

7007906

O-RING

14

7004713

ELBOW

15

7007959

O-RING

16

7010576

CAP, TAMPER PROOF NSS
