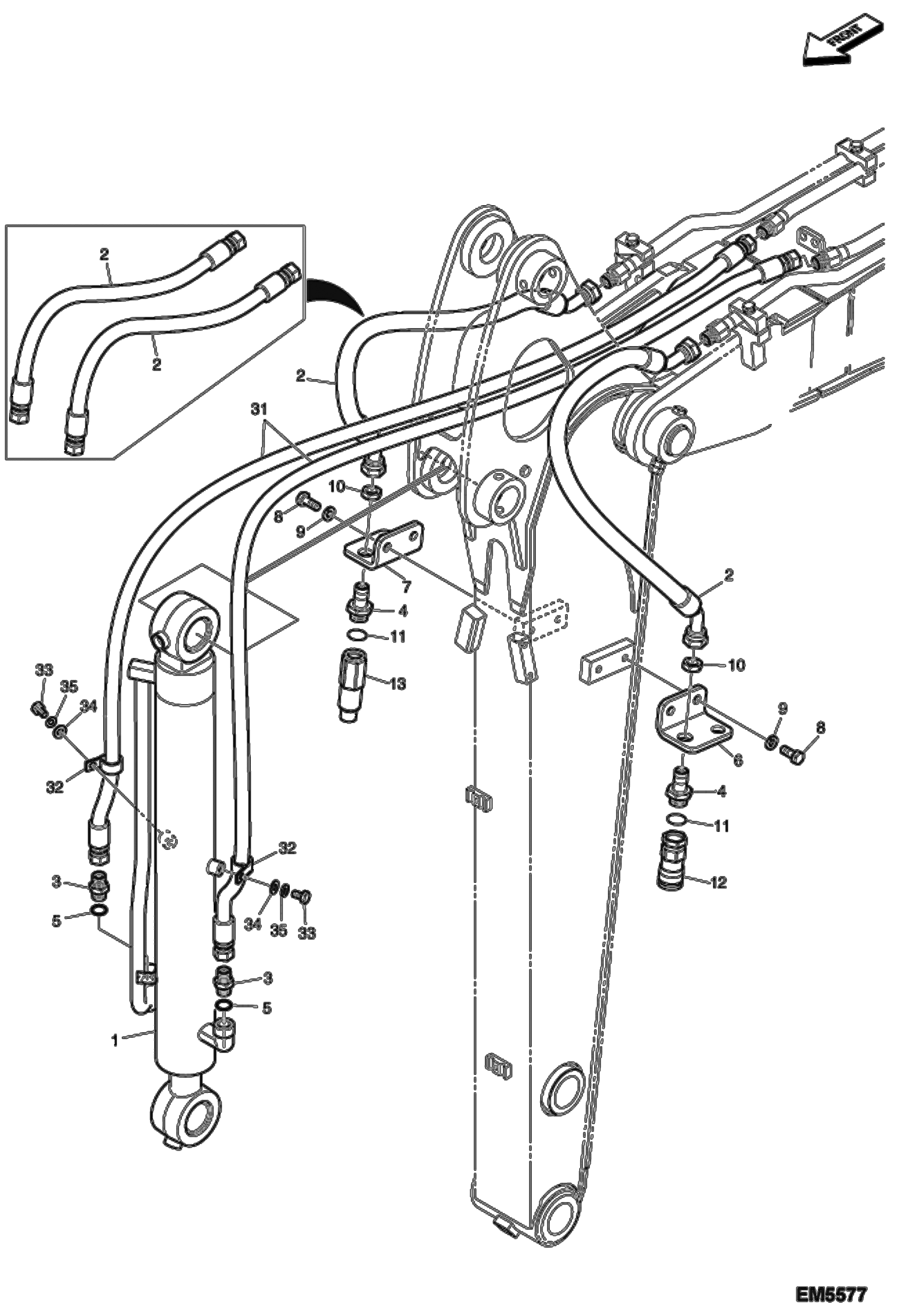

Запчасти Bobcat E60 HYDRAULIC CIRCUITRY (Arm 1.48 m) (EMEA) HYDRAULIC SYSTEM

1

7012226

CYLINDER;BUCKET See Illustration BUCKET CYLINDER/ EM1833 Was 7005934 - A

2

7005514

HOSE PF1/2-810L

2

7021848

HOSE HYDRAULIC ASSY

3

7004699

ADAPTER

4

7010173

ADAPTER

4

7015433

ADAPTER

5

7007911

O-RING

6

7013245

BRACKET

6

7021802

BRACKET

7

7013246

BRACKET

7

7021803

BRACKET

8

7007640

BOLT

9

7007836

WASHER SPRING M12

10

7003876

NUT

10

7015434

NUT

11

7009947

O-RING

12

6672960

COUPLER, FF FEMALE

13

6674688

COUPLER, FF MALE

31

7005520

HOSE PF 1/2-1480L

32

7004590

CLIP

33

7007624

BOLT

34

7007818

WASHER, PLAIN M10

35

7007835

WASHER SPRING
