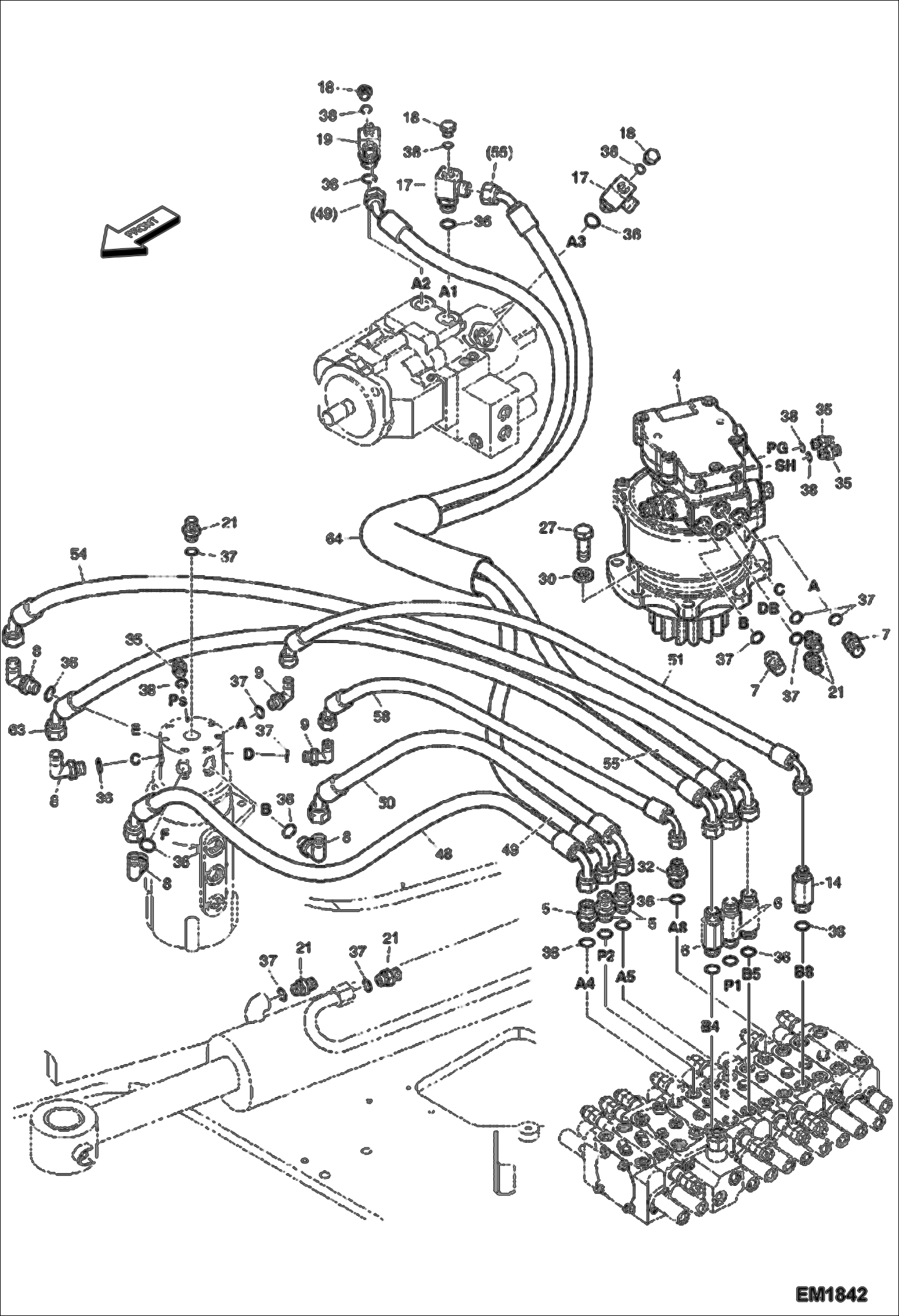

Запчасти Bobcat E60 HYDRAULIC CIRCUITRY (Upper/Travel/Blade) (Slew Motor) HYDRAULIC SYSTEM

4

7019194

MOTOR SLEW See Illustration SLEW MOTOR/ EM7940 Was 7006713 - A

4

7019194

MOTOR SLEW

5

7004699

ADAPTER

6

7004703

ADAPTER

7

7004680

ADAPTER

8

7004710

ELBOW

9

7004716

ELBOW

14

7004701

ADAPTER

17

7005564

TEE

18

7004732

PLUG

19

7006763

TEE

21

7004700

ADAPTER

27

7007774

BOLT

30

7007839

WASHER SPRING

32

7004685

ADAPTER

35

7004683

ADAPTER

36

7007911

O-RING

37

7007909

O-RING

38

7007906

O-RING

48

7005220

HOSE

49

7005234

HOSE

49

HOSE, HYD NLA Was 7017311 - A

49

7022864

HOSE HYDRAULIC ASSY

50

7005232

HOSE

51

7005208

HOSE

54

7005223

HOSE

55

7005233

HOSE

55

HOSE, HYD NLA Was 7017312 - A

55

7022865

HOSE HYDRAULIC ASSY

58

7005207

HOSE

63

7005224

HOSE

64

7006572

GUARD PROTECTOR
