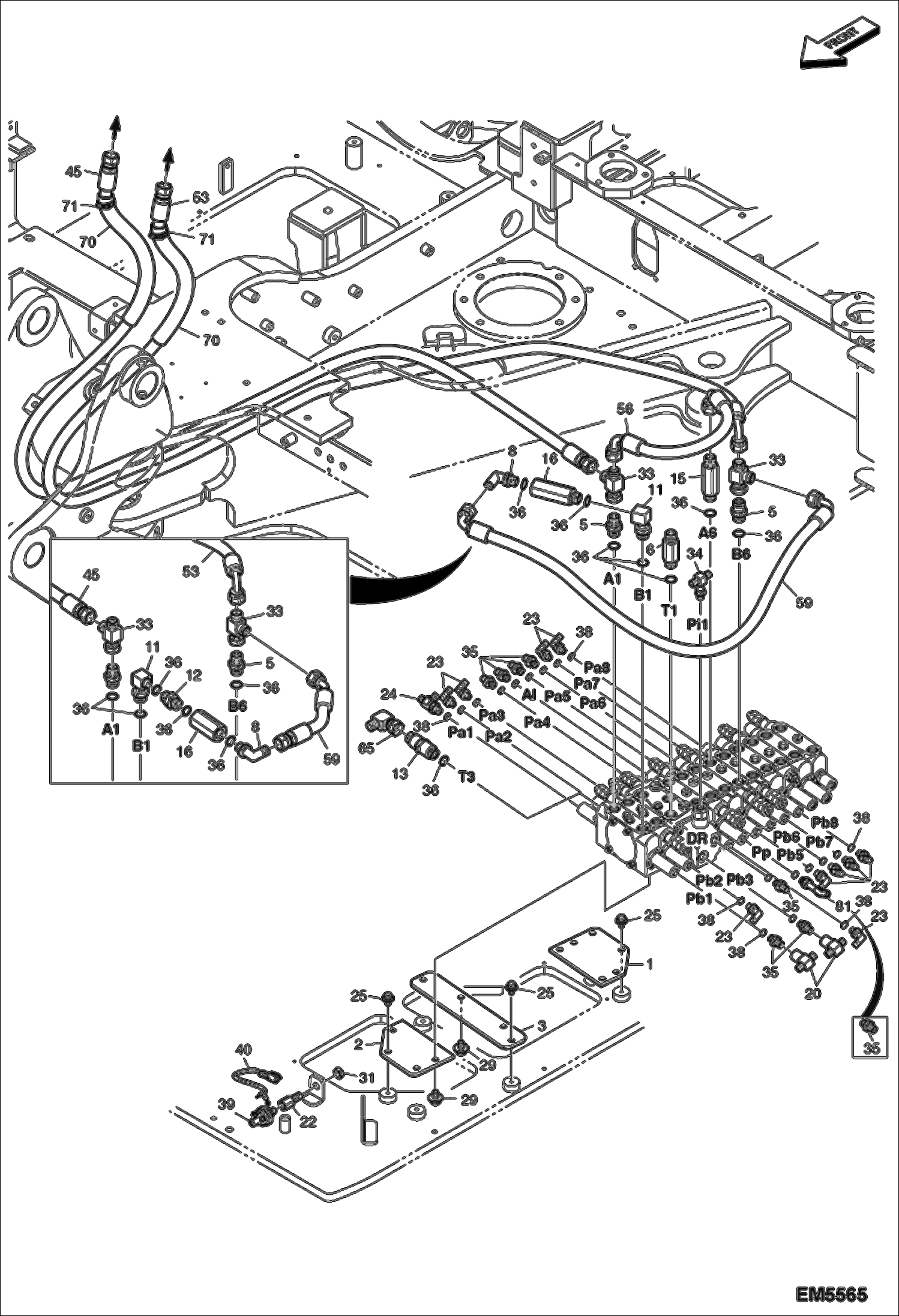

Запчасти Bobcat E60 HYDRAULIC CIRCUITRY (Work Hoses & Control Valve) (Arm) HYDRAULIC SYSTEM

1

7006399

PLATE

2

7006394

PLATE

3

7006395

PLATE

5

7004699

ADAPTER

6

7004703

ADAPTER

8

7004710

ELBOW

11

7004753

ELBOW

12

7004731

ADAPTER

13

7005541

ADAPTER

15

7005548

ADAPTER

16

VALVE, CHECK NLA Was 7004979 - A

16

7015589

VALVE, CHECK

20

7004768

TEE

22

7006550

REDUCER

23

7004713

ELBOW

24

7004738

TEE

25

7005129

BOLT, SET

29

7005119

BOLT SET

31

7003878

NUT

33

7003961

TEE UNION

34

7005562

TEE

35

7004683

ADAPTER

35

7004683

ADAPTER

36

7007911

O-RING

36

7007911

O-RING

38

7007906

O-RING

39

SWITCH, PRESSURE NLA - Order 7030246 & 7030247 Was 7006223 - B,D

40

7005012

HARNESS JOINT

45

HOSE, HYD NLA Was 7005160 - A

45

7012231

HOSE

45

7019180

HOSE HYDRAULIC ASSY

53

HOSE, HYD NLA Was 7005459 - A

53

7012235

HOSE

53

7019181

HOSE HYDRAULIC ASSY

56

7012236

HOSE Was 7005210 - B

59

7005172

HOSE

59

7019182

HOSE HYDRAULIC ASSY

65

7003958

ELBOW

70

7012259

GUARD

71

7007975

CLAMP

81

7022863

ELBOW
