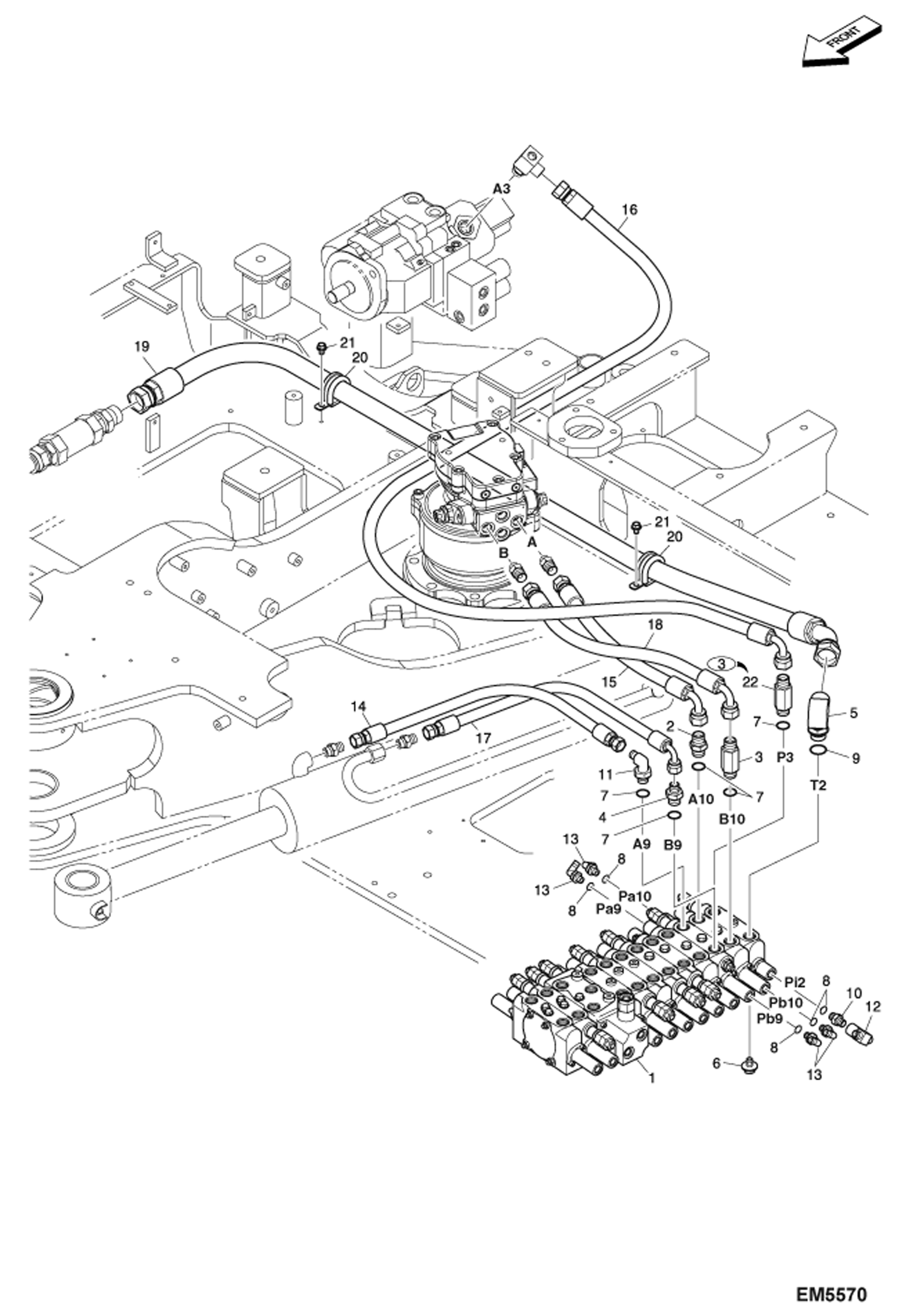

Запчасти Bobcat E60 HYDRAULIC CIRCUITRY (Upper/Slew) (W/O 2nd Auxiliary/Rotation) (EMEA) HYDRAULIC SYSTEM

1

7008222

VALVE, CONTROL See Illustration CONTROL VALVE/ EM1836 Also see installation instruction #6987358

2

7004699

ADAPTER

3

7004703

ADAPTER

3

7004703

ADAPTER

4

7004685

ADAPTER

5

7004724

ELBOW

6

7005119

BOLT SET

7

7007911

O-RING

8

7007906

O-RING

9

7007916

O-RING

10

7004683

ADAPTER

11

7004726

ELBOW

12

7004768

TEE

13

7004713

ELBOW

14

7005161

HOSE

15

7005389

HOSE

16

HOSE, HYD NLA Was 7005196 - A

16

7019192

HOSE HYDRAULIC ASSY

17

7008175

HOSE

18

HOSE, HYD NLA Was 7005415 - A

18

7012240

HOSE

19

7008165

HOSE

20

7003898

CLIP

21

7005629

BOLT

22

7005545

ADAPTER
