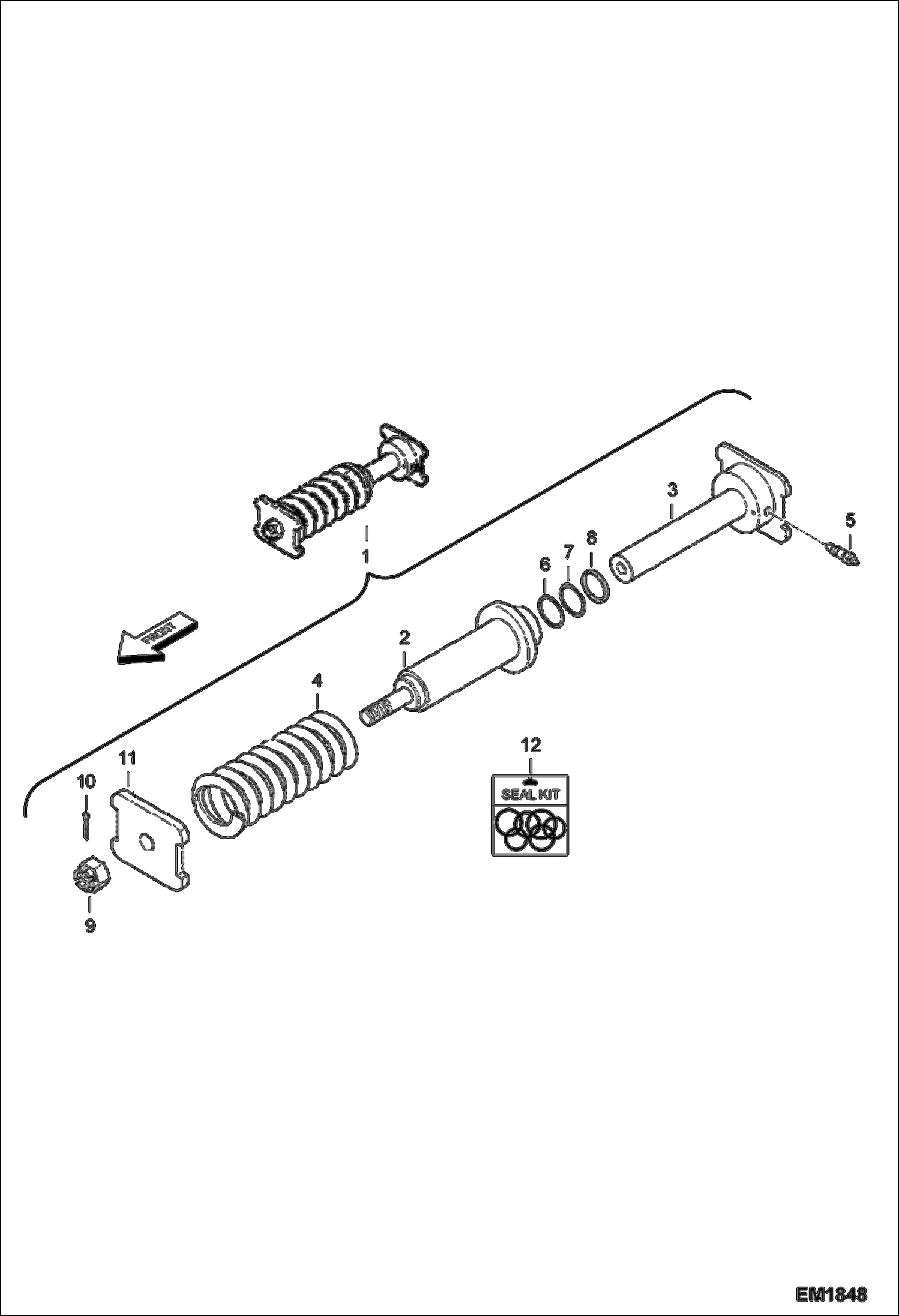

Запчасти Bobcat E60 TRACK TENSIONER UNDERCARRIAGE

1

7021796

CYLINDER HYDRAULIC W/Ref. 2-11 Was 7012243 - C

2

CYLINDER NLA - Order Ref. 1 Was 7022648 - C

3

7005906

ROD

4

7004596

SPRING

5

7004868

VALVE

6

U-PACKING NLA - Order Ref. 12

7

7007967

RING BACK-UP

8

RING, DUST NLA - Order Ref. 12

9

7007806

NUT

10

7007854

PIN, SPLIT

11

FLANGE NLA Was 7005904 - A

11

7022647

FLANGE

12

7018017

KIT, SEAL W/Ref. 6-8 Was 7004852 - C
