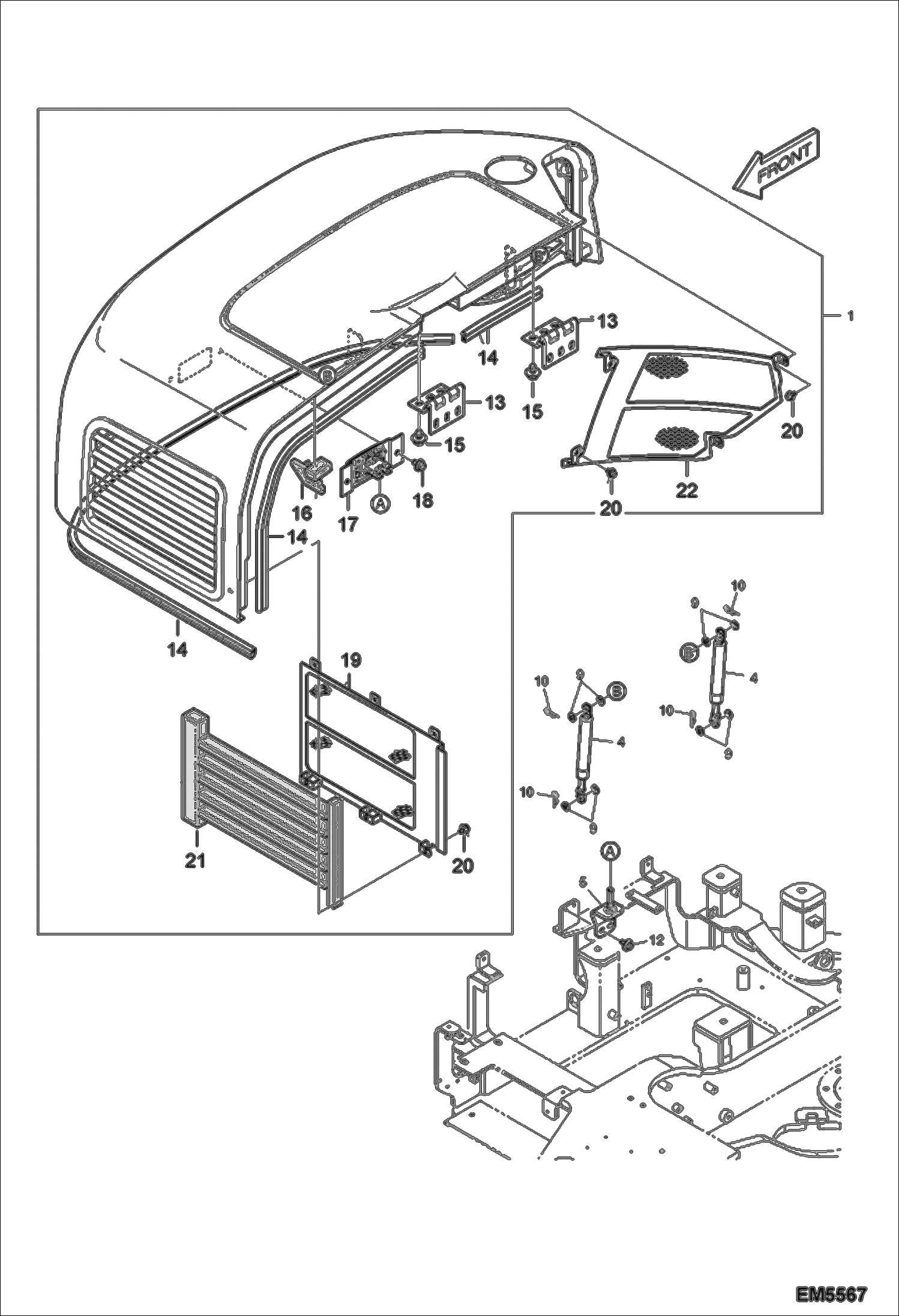

Запчасти Bobcat E60 RH COVER MAIN FRAME

1

7008234

BONNET ASSY W/Ref. 13-22

1

7012748

BONNET ASSY W/Ref. 13-22

4

7010481

CYLINDER,GAS Was 7006343 - D

5

7010480

STRIKER Was 7008216 - D

9

7007816

WASHER

10

7004569

PIN

12

7005128

BOLT, SET

13

7013251

HINGE Was 7008236 - C

14

7013147

PAD Was 7006623 - A

15

7005122

BOLT SET

16

7013252

FOAM Was 7008256 - C

17

CATCH NLA Was 7005859 - A

17

7012749

CATCH

18

7005136

BOLT, SET

19

7012750

COVER, FRONT Was 7008259 - A

20

7005129

BOLT, SET

21

7008271

FOAM, SPONGE

22

7008272

COVER, BAFFLE
