Запчасти Bobcat E60 AIR CONDITIONING (Rear Cover & Ducts) MAIN FRAME

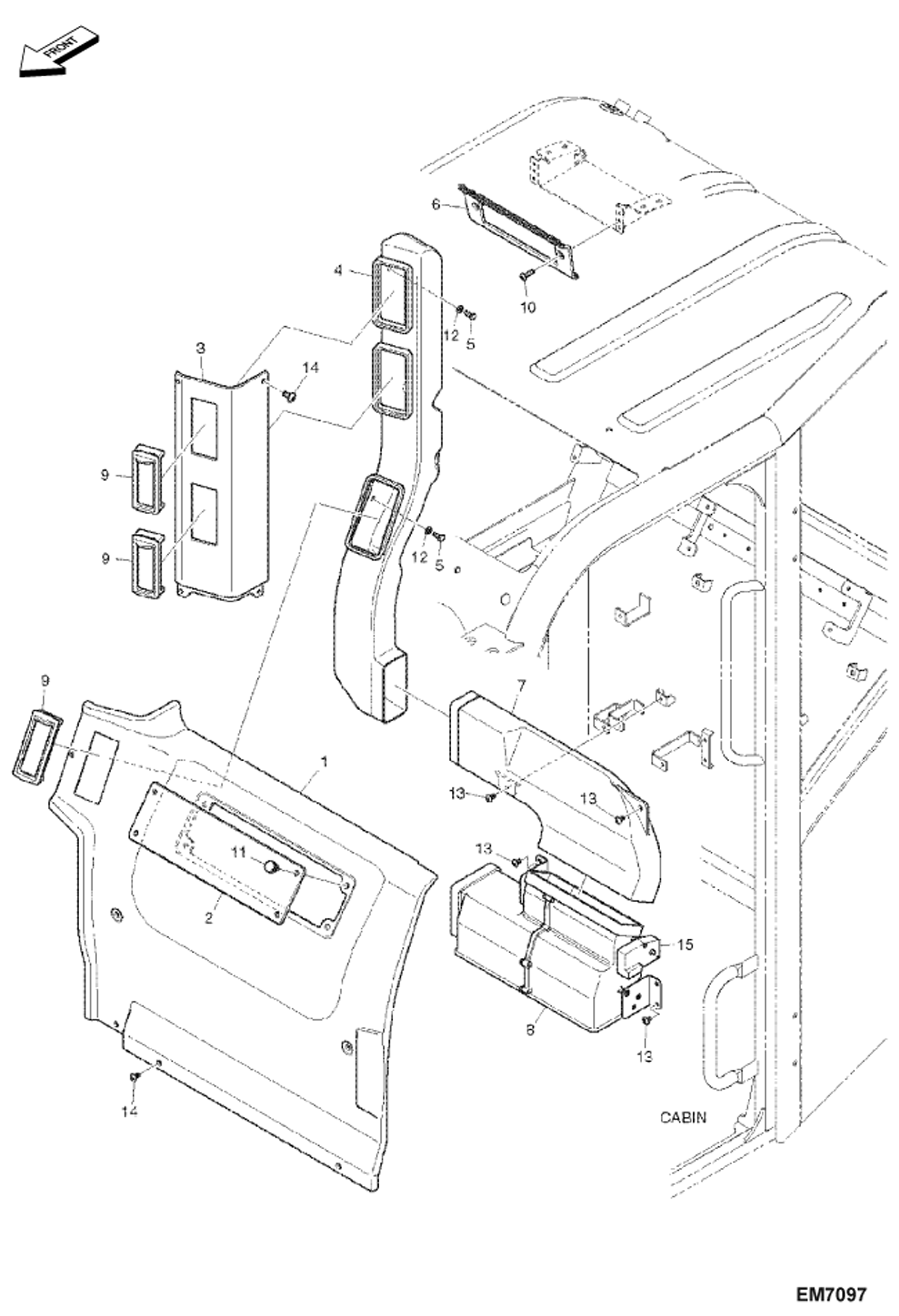

Схема запчастей Bobcat E60 - AIR CONDITIONING (Rear Cover & Ducts) MAIN FRAME

Артикул

Название

Примечание

Количество

1

7006262

COVER, REAR

2

7006266

COVER

3

7006263

COVER, PILLAR

4

7006307

DUCT, PILLAR

5

7004550

BOLT

6

7005945

COVER, CASSETTE

7

7005777

DUCT, REAR

8

DUCT, CONTROL NLA Was 7005776 - A

8

7017367

DUCT, CONTROL

9

7015588

NOZZLE, DUCT

10

7004549

BOLT, GREEN

11

7006282

BOLT

12

7004516

WASHER, PLAIN

13

7004547

BOLT

14

7004531

BOLT

15

7006530

MOTOR, MIX

Выбрано товаров: 16
