Запчасти Bobcat E60 OPERATOR CAB (Front Window) MAIN FRAME

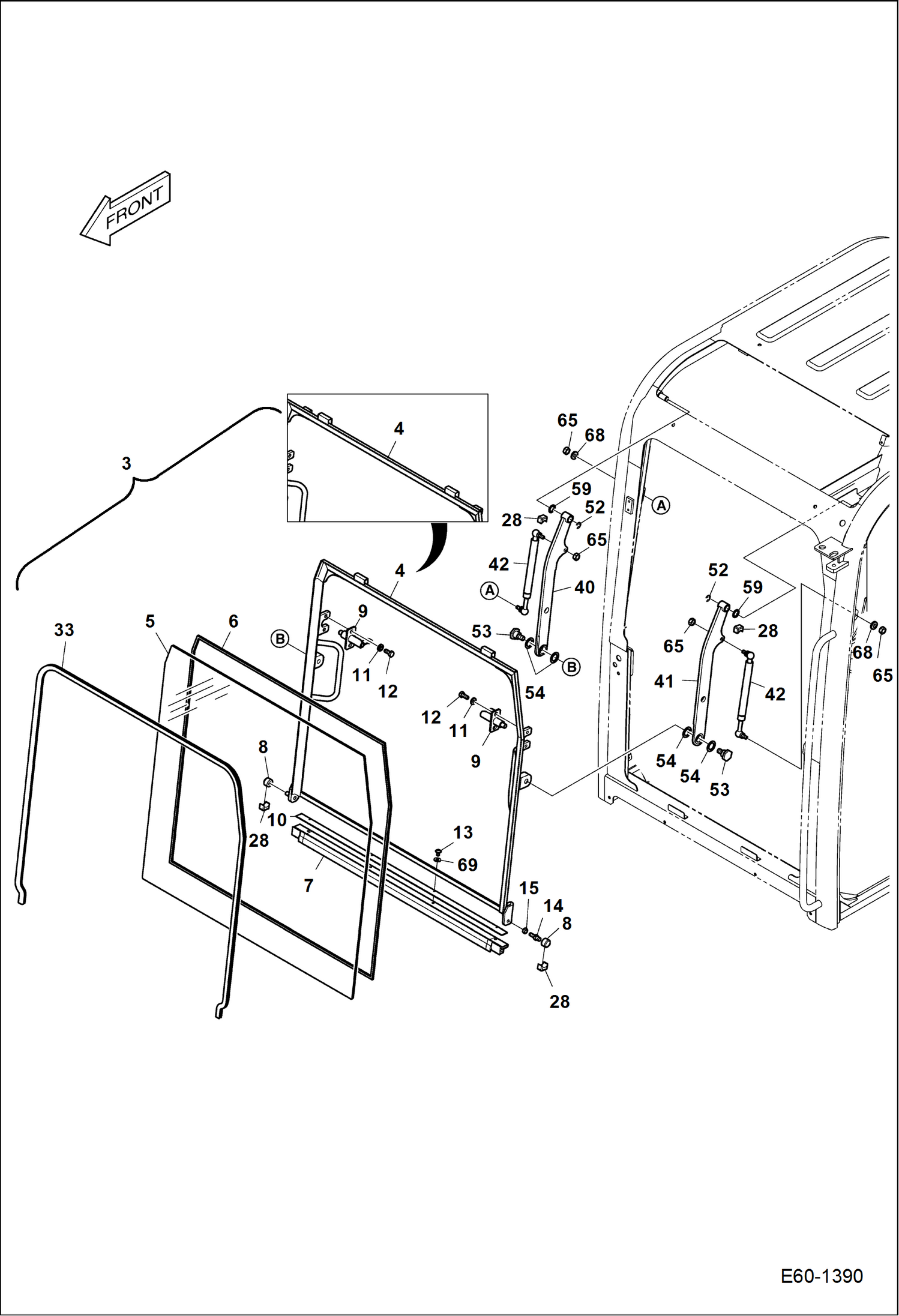

Схема запчастей Bobcat E60 - OPERATOR CAB (Front Window) MAIN FRAME

Артикул

Название

Примечание

Количество

3

7006038

FRAME DOOR SLIDE ASSY W/Ref. 4-15

4

FRAME NLA - Order Ref. 3

5

7006077

GLASS, SLIDE DOOR

6

7006078

DAMPER

7

7006079

EDGE, RUBBER

8

7004932

ROLLER

9

7020875

LATCH, SLIDE DOOR Was 7006080 - A

10

7005768

PLATE, TRIM Was 7005767 - A

11

7004515

WASHER

12

7004546

BOLT

13

7004548

BOLT

14

7006081

PIN

15

7004562

NUT

28

7003929

STOP, RUBBER

33

7006185

SEAL, EXTRUSION

40

7006189

BAR, SLIDE DOOR RH RH

41

7006190

BAR, SLIDE DOOR LH LH

42

7005144

CYLINDER, GAS

52

7007889

RING, SNAP

53

7006195

PIN

54

7005659

SHIM

59

7004487

SHIM

65

7004562

NUT

68

7004515

WASHER

Выбрано товаров: 24
