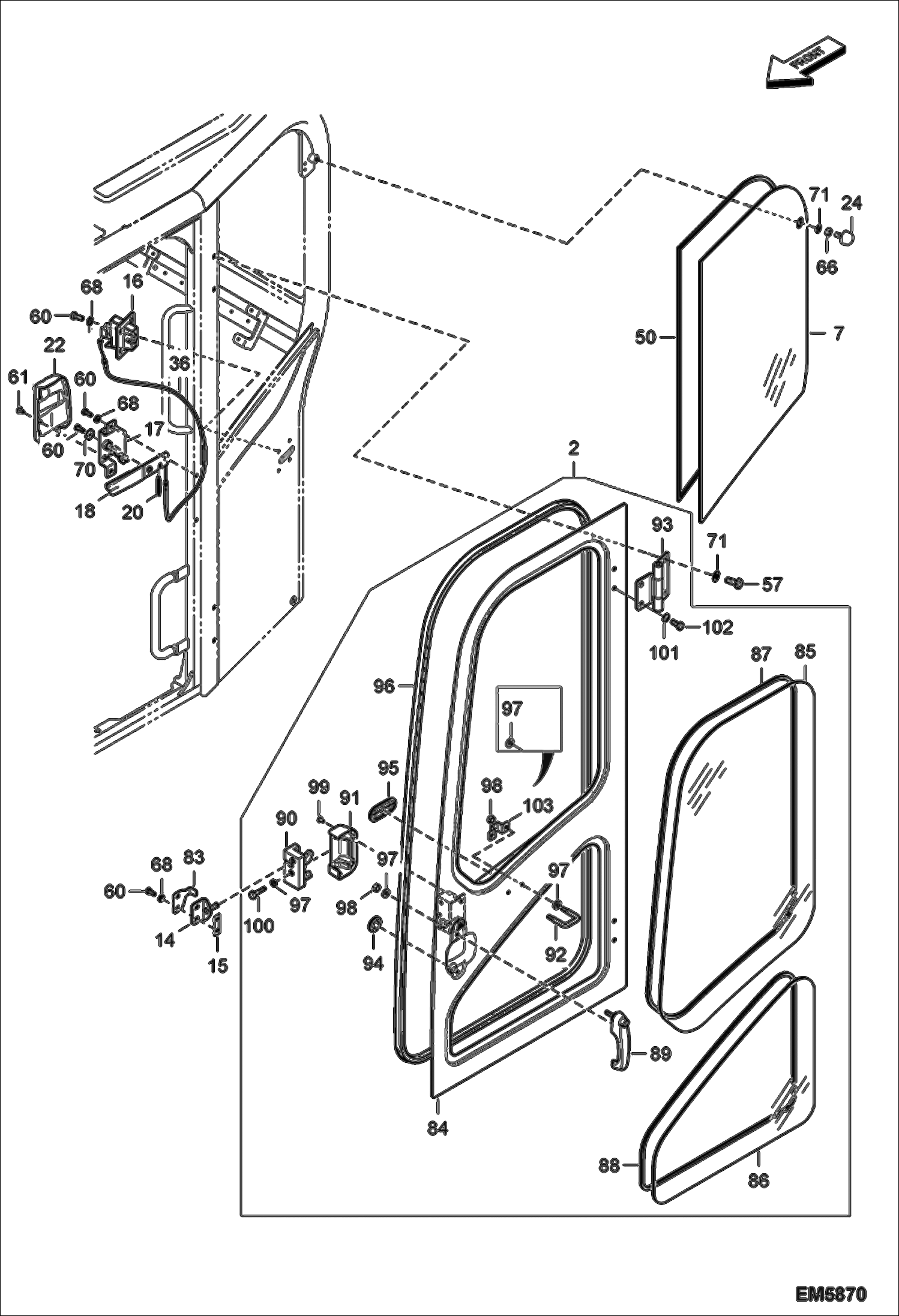

Запчасти Bobcat E60 OPERATOR CAB (Door & Windows) MAIN FRAME

2

DOOR ASSY NLA - W/Ref. 84-102 Was 7008197 - A

2

DOOR ASSY NLA - W/Ref. 84-102 Was 7015427 - A

2

DOOR ASSY NLA - W/Ref. 84-102 Was 7012495 - A

2

7017369

DOOR, ASSY W/Ref. 84-102

7

7006174

GLASS, LH

14

7029427

STRIKER Was 7006289 - B

15

7005992

PLATE

16

7004591

LOCK, BACK

17

7006178

BRACKET, LEVER

18

7006179

LEVER, BACK LOCK

20

7004595

SPRING

22

7006180

COVER, LEVER

24

7012496

STOPPER, RUBBER Was 7003928 - A

36

7003913

WIRE

50

7006078

DAMPER Was 7006193 - D

57

7004534

BOLT

60

7004546

BOLT

61

7004547

BOLT

66

7004563

NUT

68

7004515

WASHER

70

7004520

WASHER PLAIN

71

7004512

WASHER, PLAIN

83

7006290

PLATE

84

BODY, DOOR NLA - Order Ref. 2

85

7006013

DOOR, GLASS

86

7006014

DOOR, GLASS LOWER

87

7006019

DAMPER

88

7006018

DAMPER

89

7028230

HANDLE DOOR Was 7006460 - B

89

7006802

KEY, SWITCH STARTER

90

7006740

CATCH, DOOR INNER

91

7005795

COVER, CATCH

92

7004600

HOOK, CATCH DOOR

92

7013286

HOOK, CATCH DOOR

93

7006015

HINGE

94

7004617

BUSHING, RUBBER

95

7006017

COVER

96

7005813

SEAL, EXTRUSION Was 7006016 - A

97

7004515

WASHER

97

7004515

WASHER

98

7007796

NUT

99

7004548

BOLT

100

7004551

BOLT

101

7004512

WASHER, PLAIN

102

7004534

BOLT

103

7019179

BRACKET
