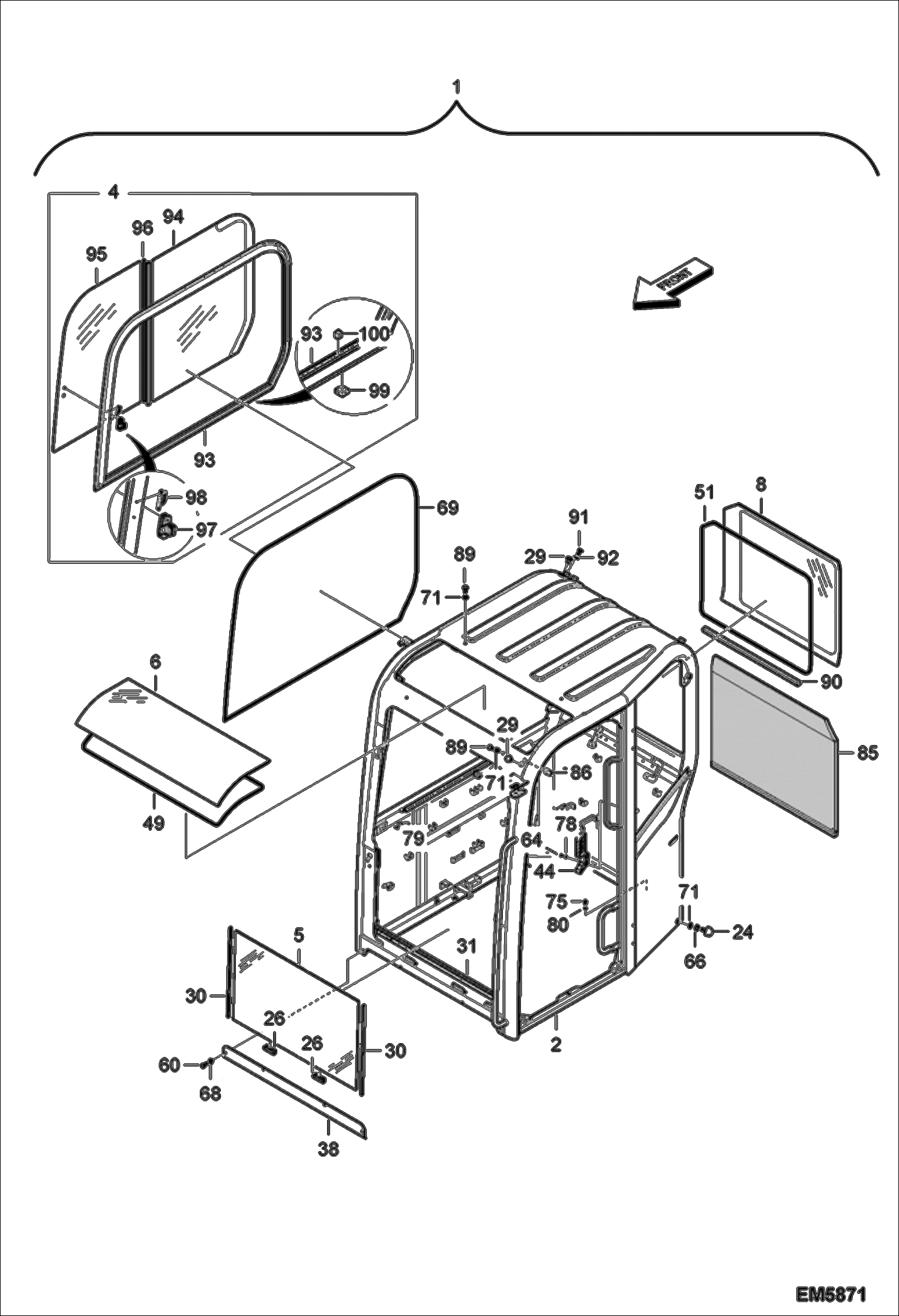

Запчасти Bobcat E60 OPERATOR CAB (Windows) MAIN FRAME

1

CAB ASSY NLA Was 7012547 - A

1

CAB ASSY NLA Was 7019177 - A

1

CAB ASSY NLA Was 7006076 - A

1

7024534

CAB, ASSY See next pages for additional parts that are all included with this assy. Was 7019178 - A

2

CAB W/A NLA - Order Ref. 1

4

7006022

FRAME, SASH ASSY RH W/Ref. 93-100

5

7006172

GLASS, LOWER

6

7006173

GLASS, UPPER

8

7006175

GLASS, REAR

24

7003928

STOP, SLIDE DOOR

26

7004624

STOP, RUBBER

29

7004620

BUSHING, RUBBER

30

7006183

EDGE, RUBBER

31

7005857

SEAL, EXTRUSION

38

7006187

COVER FRONT

44

7004838

TOOL HAMMER

49

7006078

DAMPER Was 7006192 - D

51

7006078

DAMPER Was 7006194 - D

60

7004546

BOLT

64

7004540

BOLT

66

7004563

NUT

68

7004515

WASHER

69

7006278

DAMPER

71

7004512

WASHER, PLAIN

75

7007785

SCREW, M6X1.0X12

78

7007808

WASHER

79

7006246

FOAM, POLYURETHANE

80

7007833

WASHER, SPRING

85

7006291

FOAM

86

7005588

BUSHING, RUBBER

89

7004544

BOLT

90

7006716

FOAM

91

7004544

BOLT

92

7004509

WASHER

93

FRAME, SASH NLA - Order Ref. 4

94

7006783

GLASS

95

7006782

GLASS

96

7006655

BAR

97

7004584

LOCK

98

7003867

LOCK, STOP

99

7005046

STOP, RUBBER

100

7004627

STOP, GLASS
