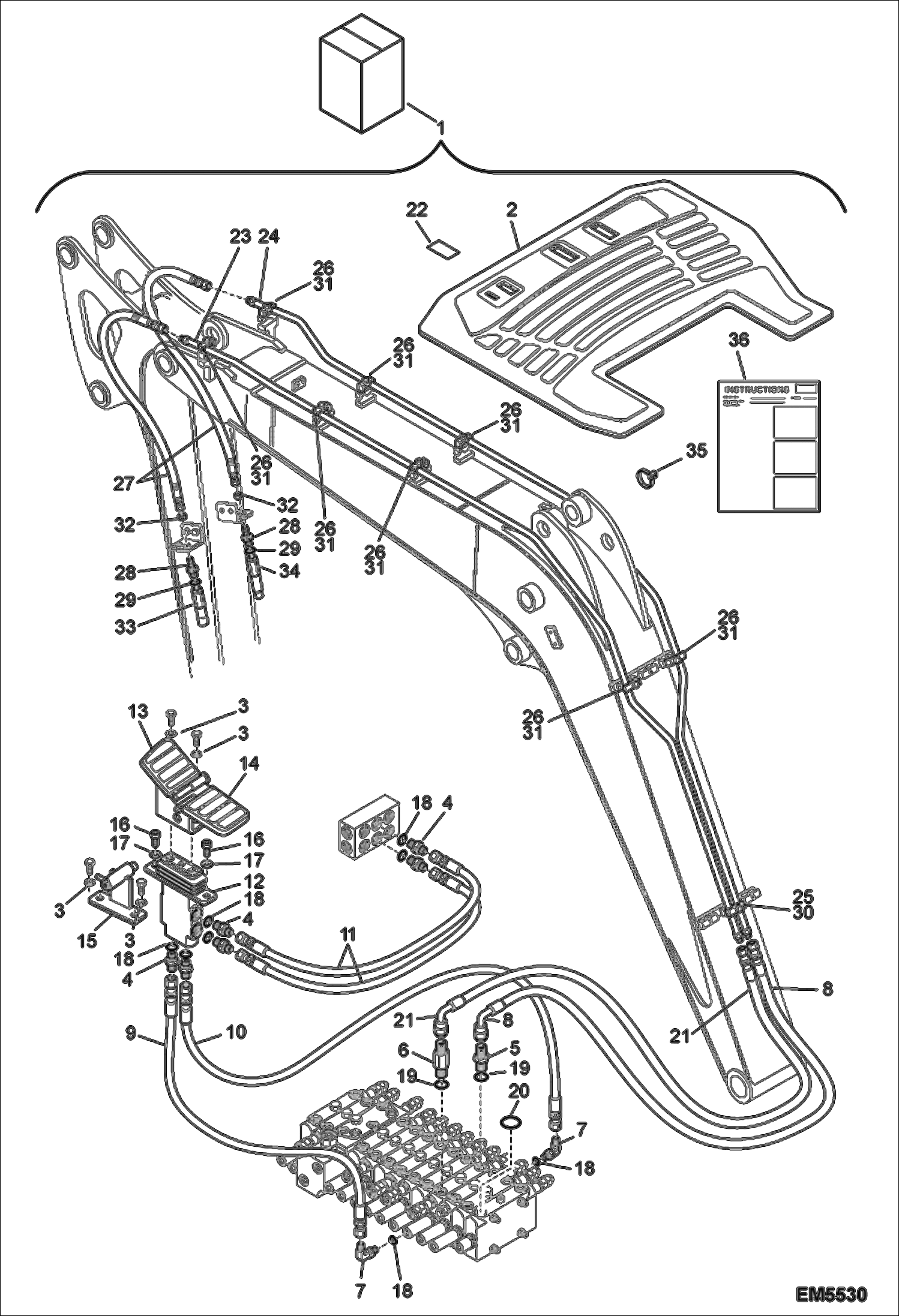

Запчасти Bobcat E60 2ND AUXILIARY HYDRAULICS KIT (EMEA) ACCESSORIES & OPTIONS

1

7175063

KIT, AUX 2ND W/Ref. 2-36 - Also Order 7011923 kit for machines built W/O second aux hyd valve section per listed S/N breaks

1

7011923

KIT, ADDITIONAL PARTS See Illustration 2ND AUXILIARY HYDRAULICS ADDITIONAL PARTS KIT/ EM5937 Use on machines built W/O second aux hyd valve section

2

7010353

MAT, FLOOR

3

7004515

WASHER

4

7004683

ADAPTER

5

7004685

ADAPTER

6

7004701

ADAPTER

7

7004713

ELBOW

8

7010280

HOSE

9

7005472

HOSE PF1/4-950L

10

7005481

HOSE

11

7005487

HOSE

12

7005669

VALVE PEDAL

13

7005839

PEDAL RUBBER

14

7006231

PEDAL

15

7006232

LATCH

16

7007737

BOLT

17

7007842

WASHER SPRING

18

7007906

O-RING

19

7007911

O-RING

20

7007916

O-RING

21

7010281

HOSE

22

7169037

DECAL, AUX HYD

23

7005933

TUBELINE

24

7006376

TUBELINE

25

7005921

CLAMP

26

7005920

CLAMP

27

7010025

HOSE

28

7010024

ADAPTER

29

7009947

O-RING

30

7007677

BOLT

31

7007676

BOLT

32

7010969

NUT Was 7003875 - A

33

6672960

COUPLER, FF FEMALE

34

6674688

COUPLER, FF MALE

35

6624289

STRAP, TIE

36

6987358

INSTRUCTIONS
