Запчасти Bobcat E60 AUXILIARY FLOW KIT (US) (AGSZ11001 - 11284 & AGSZ11286 - 11320) ACCESSORIES & OPTIONS

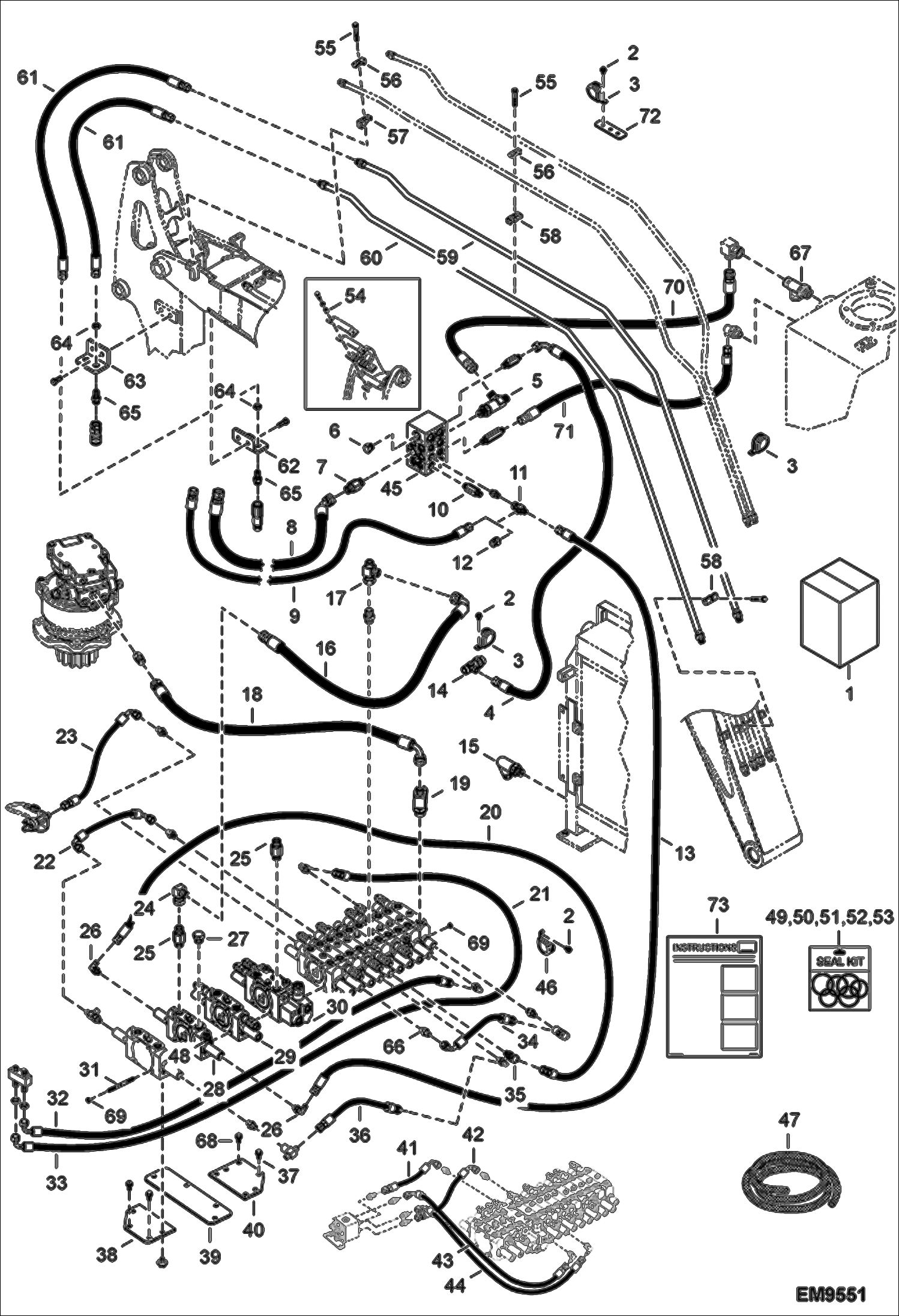

Схема запчастей Bobcat E60 - AUXILIARY FLOW KIT (US) (AGSZ11001 - 11284 & AGSZ11286 - 11320) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7202984

KIT AUX FLOW NA Ref. 2-73 Was 7202982 - D

2

7005629

BOLT

3

7003897

CLIP

4

7021856

HOSE HYDRAULIC ASSY

5

7024716

FITTING TEE

6

7004734

PLUG

7

7024714

FITTING ADAPTER

8

7021846

HOSE HYDRAULIC ASSY

9

7021858

HOSE HYDRAULIC ASSY

10

7004683

ADAPTER

11

7003960

TEE UNION

12

7004764

PLUG

13

7017284

HOSE

14

7004742

TEE

15

7021859

FITTING, HYD ELBOW

16

7021826

HOSE, HYD

17

7003961

TEE UNION

18

7005339

HOSE

19

7024715

FITTING TEE

20

7005290

HOSE

21

7021919

HOSE HYDRAULIC ASSY

22

7021852

HOSE HYDRAULIC ASSY

23

7005247

HOSE

24

7003958

ELBOW

25

7005545

ADAPTER

26

7004713

ELBOW

27

7004736

PLUG

28

7024703

VALVE SECTION

29

7024704

VALVE SECTION

30

7024705

VALVE SECTION

31

7006945

TIE ROD

32

7021854

HOSE HYDRAULIC ASSY

33

7021853

HOSE HYDRAULIC ASSY

34

7005361

HOSE PF1/4-310L

35

7024723

FITTING, TEE

36

7005497

HOSE

37

7024711

BOLT

38

7024709

PLATE

39

7024710

PLATE

40

7024708

PLATE

41

7021850

HOSE HYDRAULIC ASSY

42

7005305

HOSE

43

7005315

HOSE, PF1/4-620L

44

7021851

HOSE HYDRAULIC ASSY

45

7021801

BLOCK

46

7003898

CLIP

47

7024707

GUARD HOSE

48

7006944

VALVE SHUT OFF

49

7007911

O-RING

50

7007906

O-RING

51

7007917

O-RING

52

7007909

O-RING

53

7007920

O-RING

54

7021860

TUBELINE

55

7007673

BOLT

56

7024706

CLAMP

57

7021813

CLAMP, TUBELINE

58

7021812

CLAMP, TUBELINE

59

7021842

TUBELINE

60

7021841

TUBELINE

61

7021848

HOSE HYDRAULIC ASSY

62

7021802

BRACKET

63

7021803

BRACKET

64

7015434

NUT

65

7015433

ADAPTER

66

7022863

ELBOW

67

7021825

FITTING, HYD TEE

68

7005129

BOLT, SET

69

7006925

NUT

70

7024712

HOSE HYDRAULIC ASSY

71

7024713

HOSE HYDRAULIC ASSY

72

7021804

BRACKET, MOUNTING

73

6990108

INSTRUCTIONS

Выбрано товаров: 73
