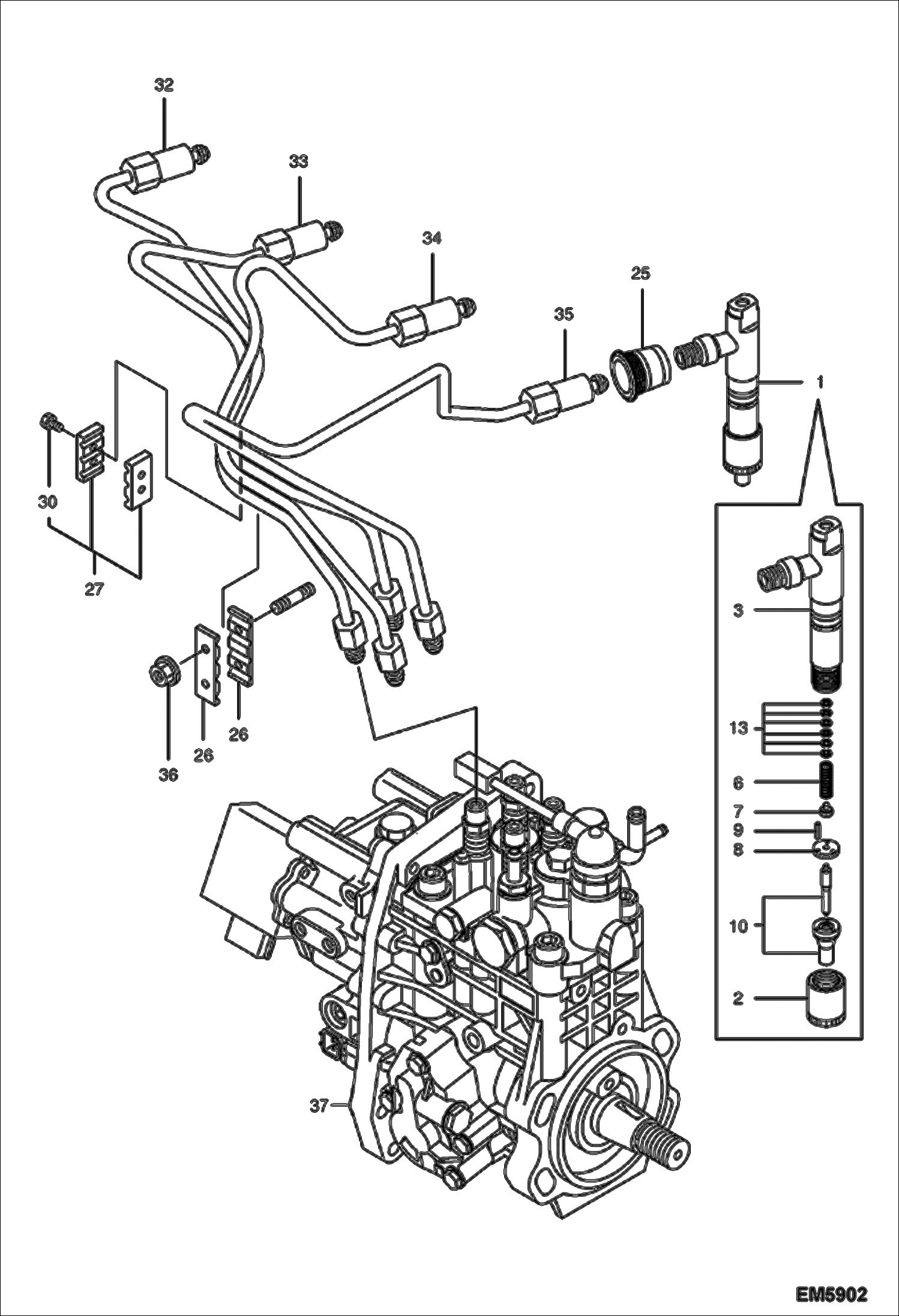

Запчасти Bobcat E60 FUEL & INJECTION PUMP & NOZZLES POWER UNIT

1

7007328

INJECTOR ASSY W/Ref. 2-13

2

7004147

NUT

3

7007129

NOZZLE HOLDER ASSY

6

7004195

SPRING

7

7004408

SEAT

8

7004384

PLATE STOP

9

7004164

PIN

10

7007329

NOZZLE ASSY

13

7013266

SHIM ASSY Was 7004227 - A

25

7004277

SEAL TUBELINE

26

7007097

BRACKET

27

7006898

CLAMP TUBELINE

30

7004081

BOLT M4X14

32

7007132

TUBELINE INJECTION ASSY

33

7007133

TUBELINE INJECTION ASSY

34

7007134

TUBELINE INJECTION ASSY

35

7007135

TUBELINE INJECTION ASSY

36

7004148

NUT M6

37

7007546

PUMP INJECTION ASSY See Illustration SPEED CONTROL PLATE/ E60-021
