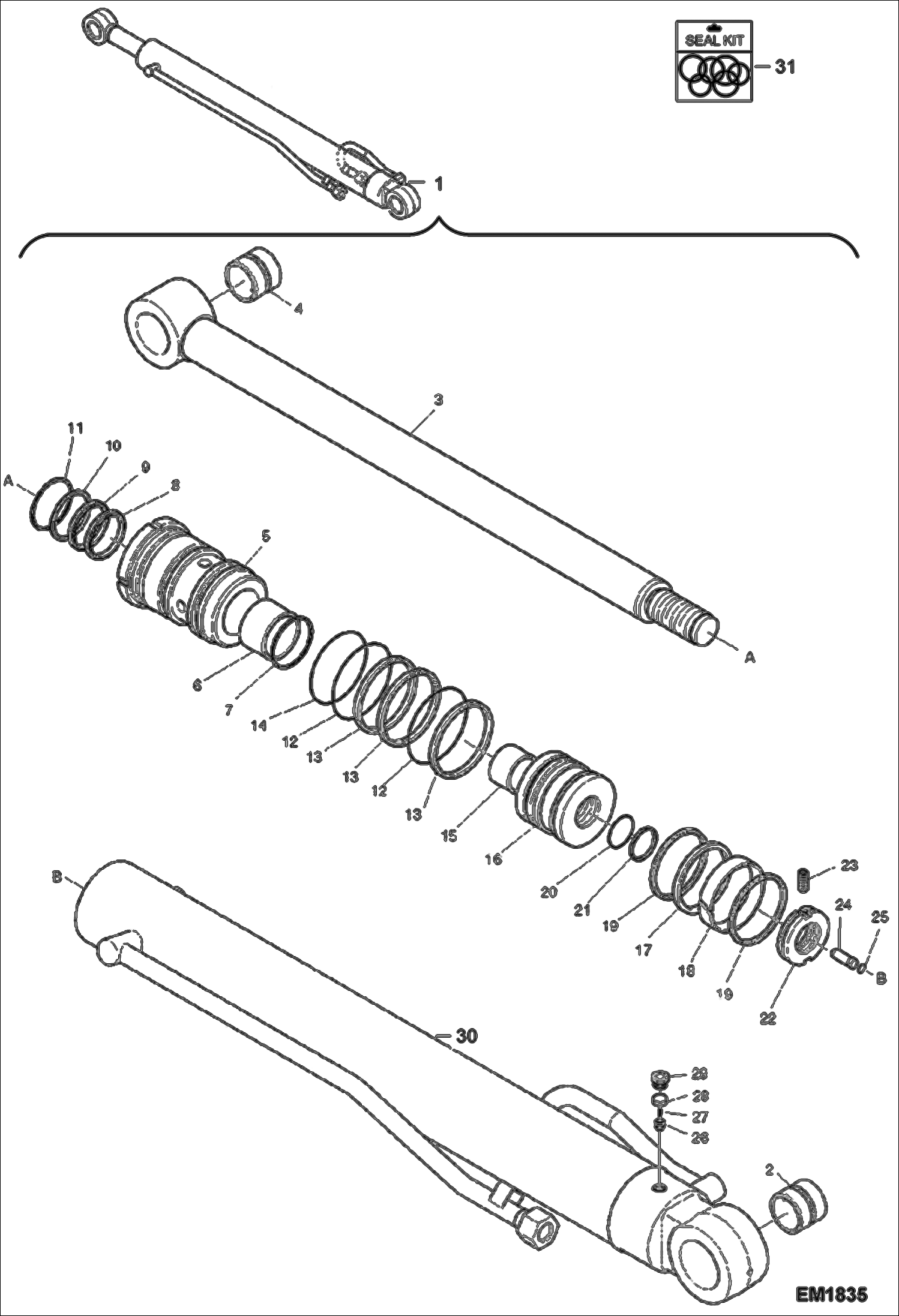

Запчасти Bobcat E60 ARM CYLINDER HYDRAULIC SYSTEM

1

7012224

CYLINDER,ARM W/Ref. 2-30 Was 7005884 - A

2

7005752

BUSHING

3

7007435

ROD ASSY

4

7005752

BUSHING

5

7007274

COVER ROD

6

7003710

BUSHING DD

7

7007023

RING RETAINING

8

7007025

SEAL BUFFER

9

7003759

SEAL

10

7003792

WIPER DUST

11

7003724

RING RETAINING

12

7007939

ORING

13

7003773

RING BACK-UP

14

7007941

O-RING

15

7003726

RING CUSHION

16

7003818

PISTON

17

7007024

RING GLYD

18

7003784

RING WEAR

19

7007022

RING DUST

20

7007934

O-RING

21

7007969

RING BACK-UP

22

7003739

NUT PISTON

23

7007792

SCREW SET

24

7003834

DIAPHRAGM PLUNGER CUSHION

25

7003729

RING STOP

26

7003833

VALVE CHECK

27

7003742

SPRING

28

7003804

SUPPORT SPRING

29

7004674

PLUG PT3/8

30

7007434

TUBELINE ASSY

31

7024159

KIT, SEAL W/Ref. 8-10, 12-14 & 17-21 Was 7007026 - B
