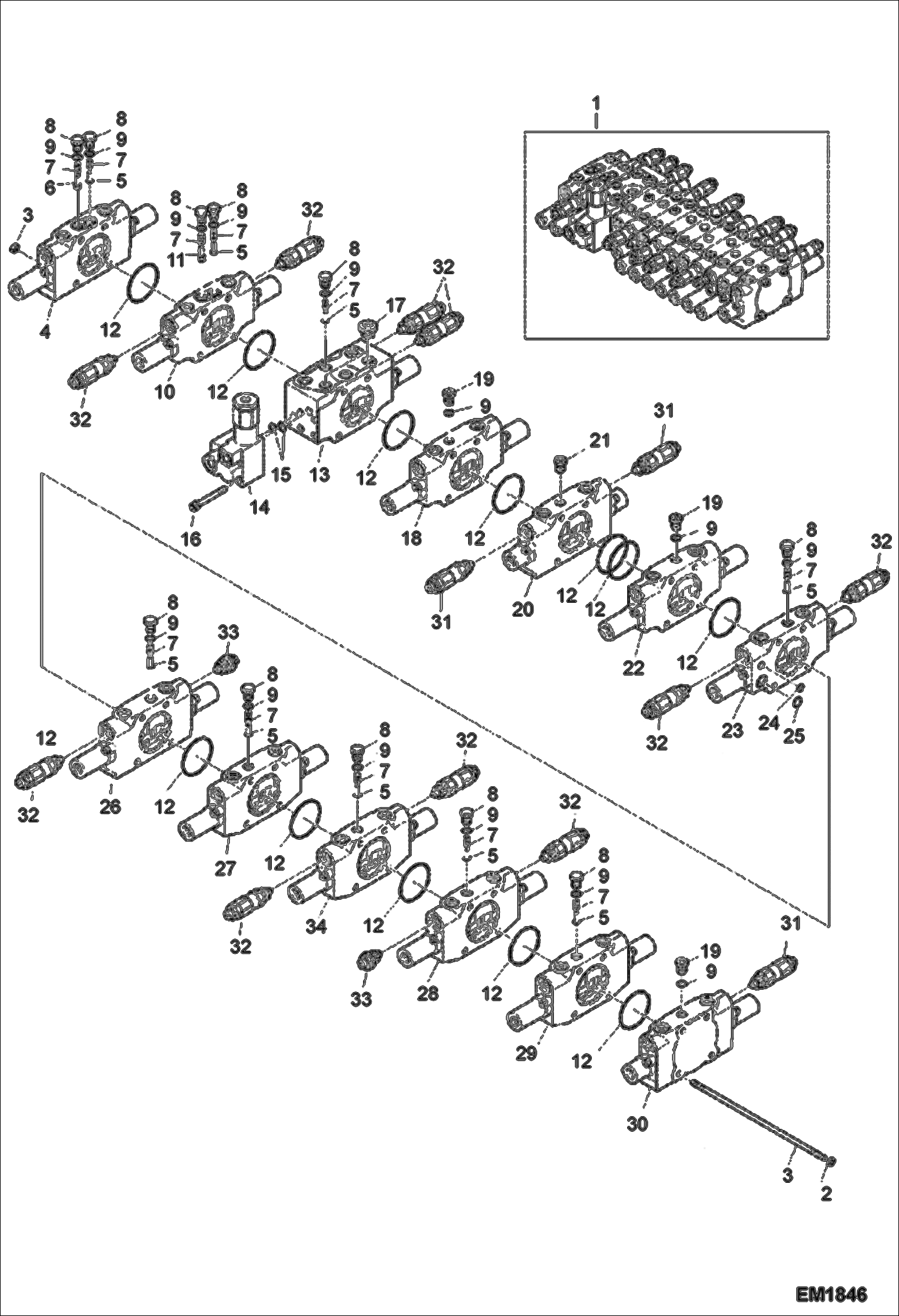

Запчасти Bobcat E60 CONTROL VALVE (W/2nd Auxiliary/Rotation) HYDRAULIC SYSTEM

1

7008219

VALVE, CONTROL ROTATING W/Ref. 2-34

2

7006925

NUT

3

7006943

TIE ROD Was 7006930 - D

4

7007006

BLOCK ASSY-ARM2 W/Ref. 5-9

5

7006935

ORIFICE POPPET

6

7006940

ORIFICE POPPET

7

7006936

SPRING

8

7006942

PLUG

9

7006934

ORING

10

7007007

BLOCK ASSY-BUCKET W/Ref. 5, 7-9 & 11

11

7006941

ORIFICE POPPET

12

7007937

O-RING

13

7007008

BLOCK ASSY-BOOM1 W/Ref. 5, 7-9 & 14-17

14

7006938

VALVE ANTI-DRIFT

15

7006937

ORING

16

7007730

BOLT SOCKET

17

7003956

PLUG

18

7007009

BLOCK ASSY-TRAVEL R W/Ref. 9 & 19

19

7006939

PLUG

20

7007010

BLOCK ASSY-INLET W/Ref. 21 & 31

21

7006894

PLUG

22

7007011

BLOCK ASSY-TRAVEL L W/Ref. 9 & 19

23

7007057

BLOCK ASSY-ARM1 W/Ref. 5 & 7-9

24

7007905

O-RING

25

7007913

O-RING

26

7007013

BLOCK ASSY-BOOM2/AUX W/Ref. 5 & 7-9

27

7007014

BLOCK ASSY-DOZER W/Ref. 5 & 7-9

28

7007056

BLOCK ASSY-BOOM SWING W/Ref. 5 & 7-9

29

7007015

BLOCK ASSY-SWING W/Ref. 5 & 7-9

30

7006928

BLOCK ASSY-S TRAVEL W/Ref. 9 & 19

31

7006927

VALVE RELIEF MAIN

32

7006926

VALVE RELIEF ASSY

33

7006944

VALVE SHUT OFF

34

7007244

BLOCK ASSY-TILTING W/Ref. 5 & 7-9
