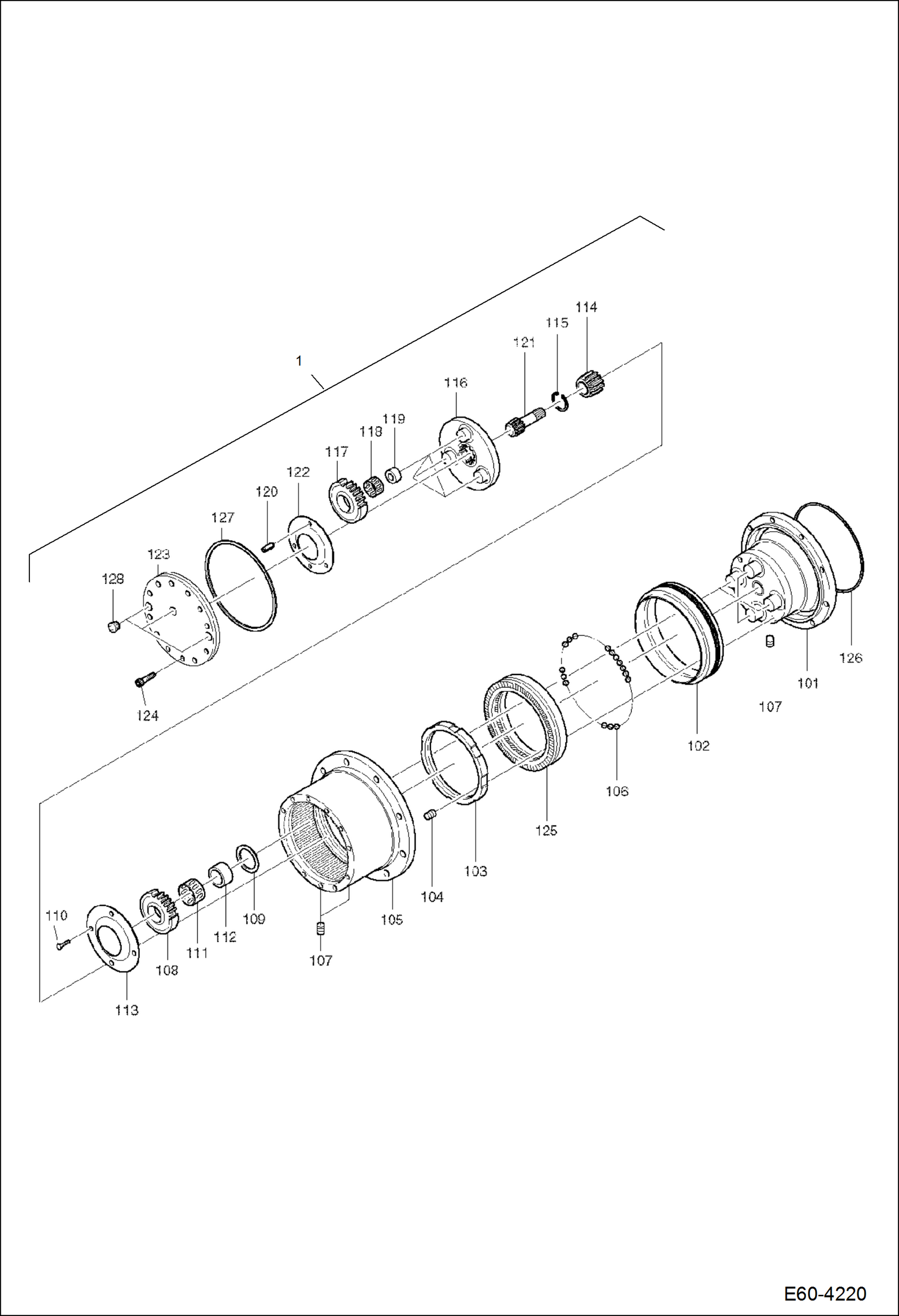

Запчасти Bobcat E60 DRIVE MOTOR (Reduction Gear) HYDRAULIC SYSTEM

1

GEAR, REDUCTION NLA - W/Ref. 101-128 Was 7006989 - A

1

7021864

MOTOR TRAVEL

101

7006990

FLANGE HOLDER

102

7005625

SEAL FLOATING

103

7003737

NUT RING

104

7004674

PLUG PT3/8

105

7006991

HOUSING

106

7007869

BALL STEEL

107

7004671

PLUG PT 1/8

108

7003812

GEAR PLANETARY

109

7003720

WASHER THRUST

110

7003732

BOLT

111

7003703

BEARING NEEDLE

112

7003715

COLLAR

113

7003823

PLATE THRUST

114

7003811

GEAR SUN

115

7007878

RING SNAP

116

7003843

HOLDER

117

7003810

GEAR PLANETARY

118

7003702

BEARING NEEDLE

119

7003805

RACE INNER

120

7007861

PIN SPRING

121

7003813

GEAR DRIVE

122

7003824

PLATE THRUST

123

COVER NLA Was 7003844 - A

123

7021800

COVER

124

7007736

BOLT SOCKET

125

7003699

BEARING ANGULAR

126

7004659

O-RING

127

7007930

ORING

128

7004728

PLUG
