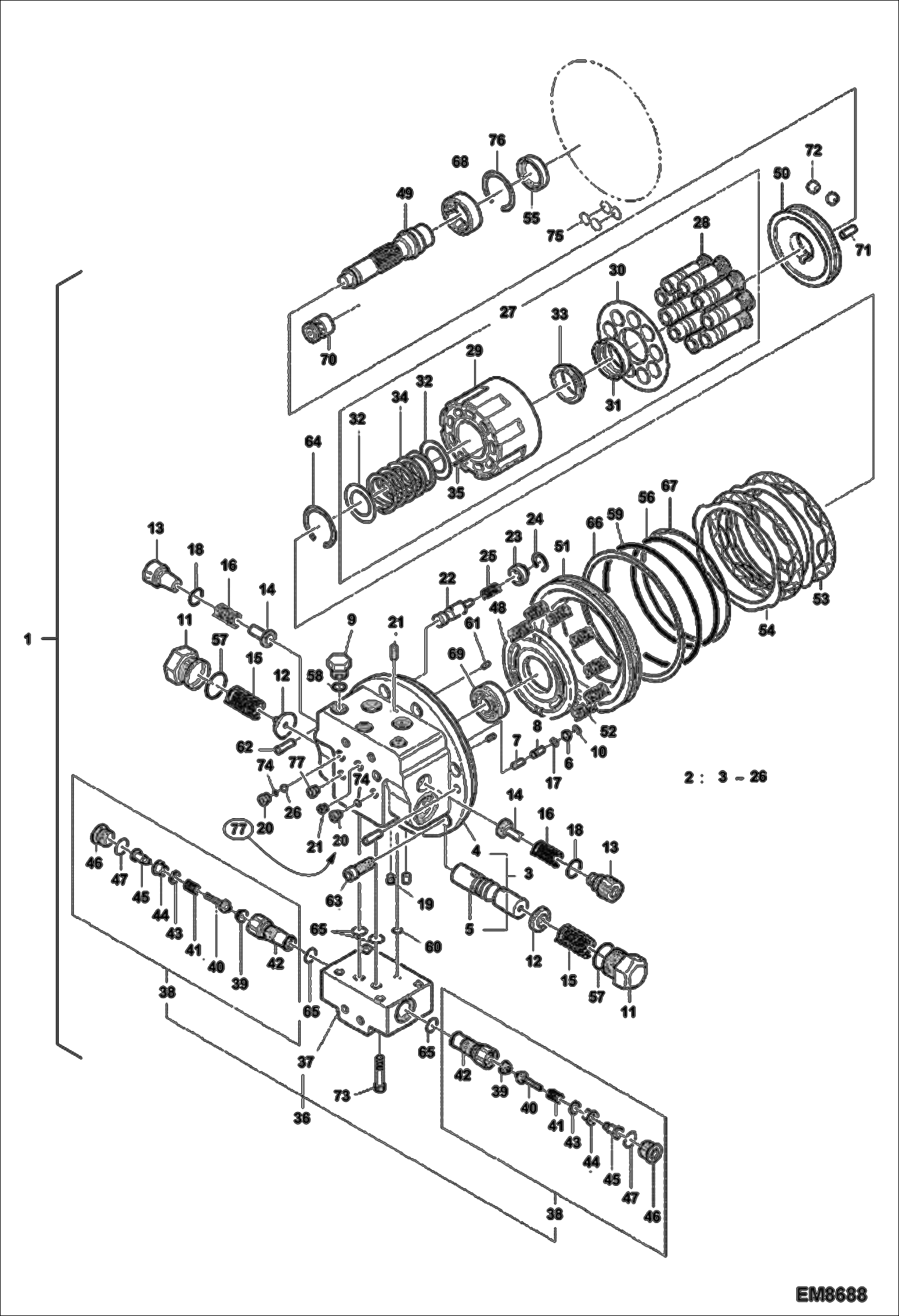

Запчасти Bobcat E60 DRIVE MOTOR HYDRAULIC SYSTEM

1

7027848

MOTOR TRAVEL W/Ref. 2-77 Was 7006992 - B

2

7006993

FLANGE REAR ASSY W/Ref. 3-26

2

7021843

FLANGE W/Ref. 3-26

3

7006994

FLANGE REAR KIT W/Ref. 4-5

3

7021844

COVER W/Ref. 4-5

4

FLANGE, REAR NLA - Order Ref. 3

5

SPOOL, MAIN NLA - Order Ref. 3

6

7003838

SEAT VALVE

7

7003835

VALVE

8

7003748

SPRING

9

7004734

PLUG

10

7003725

RING

11

7003801

PLUG VP

12

7006995

RETAINER SPRING

13

7003802

PLUG

14

7003825

VALVE

15

7003746

SPRING MAIN

16

7003745

SPRING CHECK

17

7007904

O-RING

18

7007910

O-RING

19

7004671

PLUG PT 1/8

20

7004727

PLUG

20

7004727

PLUG

21

7004672

PLUG

22

7004983

VALVE TWO SPEED

23

7003866

STOP TWO SPEED

24

7004968

RING TWO SPEED

25

7003744

SPRING TWO SPEED

26

7007871

BALL STEEL

27

7006996

CYLINDER BLOCK & PISTON KIT W/Ref. 28-35

28

7006997

PISTON ASSY

29

BLOCK, CYLINDER NLA - Order Ref. 27

30

PLATE, RETAINER NLA - Order Ref. 27

31

BALL, THRUST NLA - Order Ref. 27

32

7003719

WASHER

33

7007054

WASHER

34

SPRING NLA - Order Ref. 27

35

PIN NLA - Order Ref. 27

36

7007003

KIT RELIEF VALVE BLOCK Ref. 37-38

37

7007004

BLOCK VALVE

38

7007005

VALVE RELIEF ASSY Ref. 39-47

39

VALVE, SEAT NLA - Order Ref. 38

40

PLUNGER NLA - Order Ref. 38

41

SPRING NLA - Order Ref. 38

42

BODY NLA - Order Ref. 38

43

SHIM NLA - Order Ref. 38

44

PISTON NLA - Order Ref. 38

45

ROD NLA - Order Ref. 38

46

PLUG NLA - Order Ref. 38

47

7007966

RING BACK-UP

48

7007000

PLATE TIMING

49

SHAFT NLA Was 7006999 - A

49

7021865

GEAR

50

7007453

PLATE SWASH

51

7003816

PISTON PARKING

52

7003747

SPRING

53

7003820

PLATE FRICTION

54

7003821

PLATE MATING

55

7003793

SEAL OIL

56

7003756

ORING

57

7007918

O-RING

58

7007909

O-RING

59

7007954

O-RING

60

7007903

O-RING

61

7007848

PIN PARALLEL

62

7003740

PIN PARALLEL

63

7007749

BOLT SOCKET

64

7007884

RING SNAP

65

7007911

O-RING

66

7003770

RING BACK-UP

67

7003771

RING BACK-UP

68

7003704

BEARING ROLLER

69

7003701

BEARING BALL

70

7006998

PISTON ASSY 2 SPEED

71

7007001

PIN PARALLEL

72

7007002

PIVOT

73

7007741

BOLT SOCKET HEAD M8X45

74

7007906

O-RING

74

7007906

O-RING

75

7007902

O-RING

76

7007885

RING SNAP

77

7004673

PLUG
